LY50-MDBM (1987)

Toyota Toyoace/Dyna

Production Aug 1987 - May 1995
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

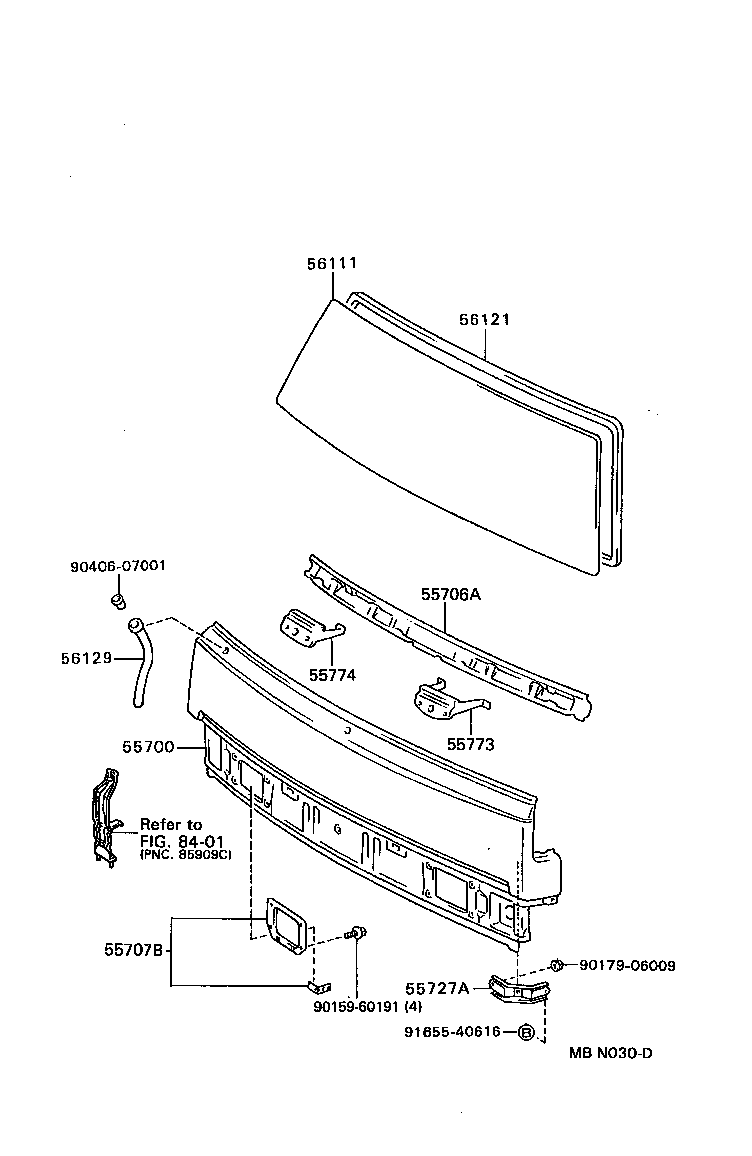

Click highlighted areas on diagram

diagram 55700 55706A 55707B 55727A 55773 55774 56111 56121 56129 8401 9015960191 9017906009 9040607001 9165540616
Part # Description Qty Price
55700 - PANEL ASSY, FRONT
55701-95443

LY5#,6#,YY5#,61

 1
55701-95449

LY5#,61,YY5#,61

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95405

LY5#,6#,YY5#,61

 1
55707B - SHUTTER SUB-ASSY, FRONT AIR
55707-95404

LY5#,6#,YY5#,61

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95406

LY5#,6#,YY5#,61

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95402

LY5#,6#,YY5#,61

 1
56111 - GLASS, WINDSHIELD
56111-37010

LY5#,61,YY5#,61

*TL,T=5.7

 1
56111-95416

LY5#,6#,YY5#,61

*LAM,T=5.3

 1
56111-37020

LY5#,61,YY52,61..T1,T2,T3,T4

*LAM,T=5.7,ﾌﾞﾛﾝｽﾞ

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-95A06

LY5#,6#,YY5#,61

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95400

LY5#,6#,YY5#,61

 2
Common parts
90159-60191
90179-06009
90406-07001
91655-40616
Linked diagrams
8401
