LY50-MDBM (1985)

Toyota Toyoace/Dyna

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44635 44642 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25110

LY50..125..ST

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-36240

LY50,YY50..125..ST

 1
44610 - BOOSTER ASSY, BRAKE
44610-25130

LY50,YY50..125..ST

 1
44618 - SEAL, BOOSTER BODY
44621-28120

LY50,YY50..125..ST

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

LY50,YY50..125..ST

 1
44635 - RETAINER, HYDRAULIC VALVE
44635-36240

LY50,YY50..125..ST

 1
44642 - PISTON, BRAKE BOOSTER
44642-36260

LY50,YY50..125..ST

 1
Common parts
90179-08038

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44678 44731 9017908038 9017908146
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-25110

LY50..125..ST

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-36240

LY50,YY50..125..ST

 1
44610 - BOOSTER ASSY, BRAKE
44610-25130

LY50,YY50..125..ST

 1
Common parts
90179-08038
90179-08146

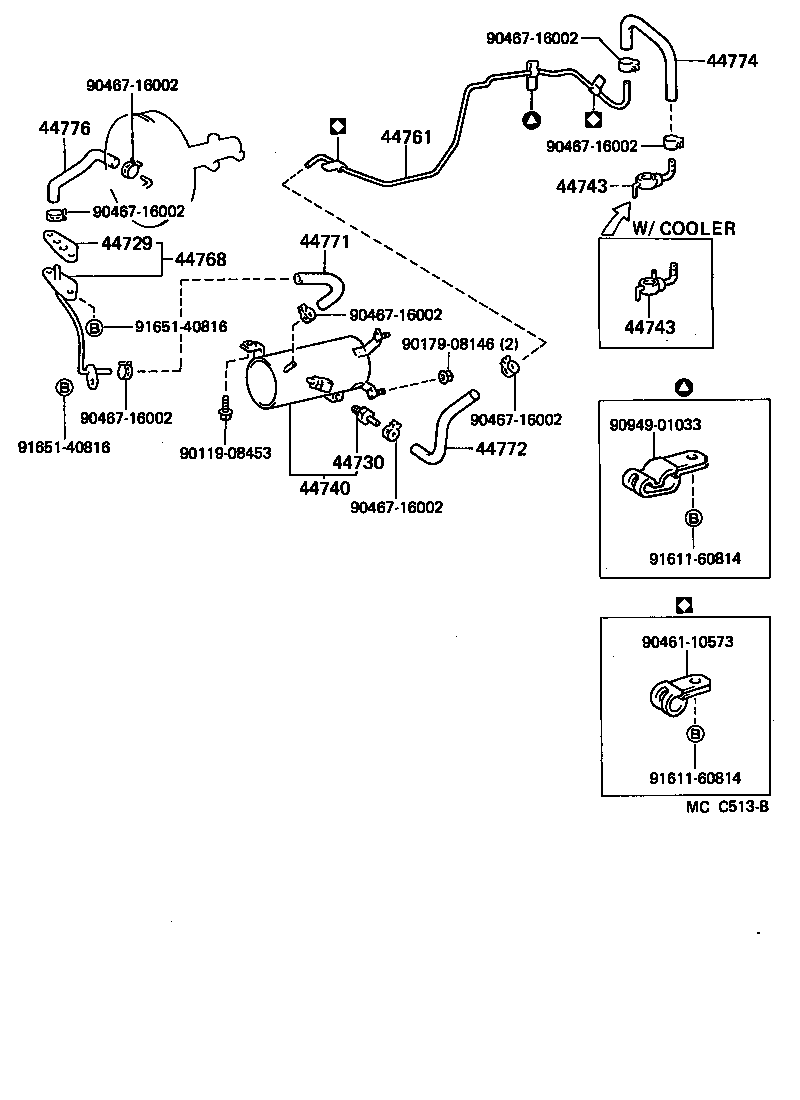

ILLUST NO. 2 OF 2(8508- )LY50,60

Click highlighted areas on diagram

diagram 44729 44730 44740 44743 44743 44761 44768 44771 44772 44774 44776 9011908453 9017908146 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9094901033 9161160814 9161160814 9165140816 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-36020

LY50,60,YY5#,61

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60040

LY50,60

 1
44740 - RESERVOIR ASSY, VACUUM
44740-25050

LY50,60

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09070

LY50,60

W/AIR CONDITIONER

 1
90405-09071

LY50,60

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09070

LY50,60

W/AIR CONDITIONER

 1
90405-09071

LY50,60

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-25060

LY50,60

 1
44768 - TUBE, BOOSTER VACUUM
44768-36020

LY50,60,YY5#,61

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-25040

LY50,60

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-25030

LY50,60

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-26110

LY50,60

 1
44776 - HOSE, BRAKE BOOSTER
44776-36030

LY50,60,YY5#,61

 1
Common parts
90119-08453
90179-08146
90461-10573
90467-16002
90949-01033
91611-60814
91651-40816
