M910A-BGBVE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

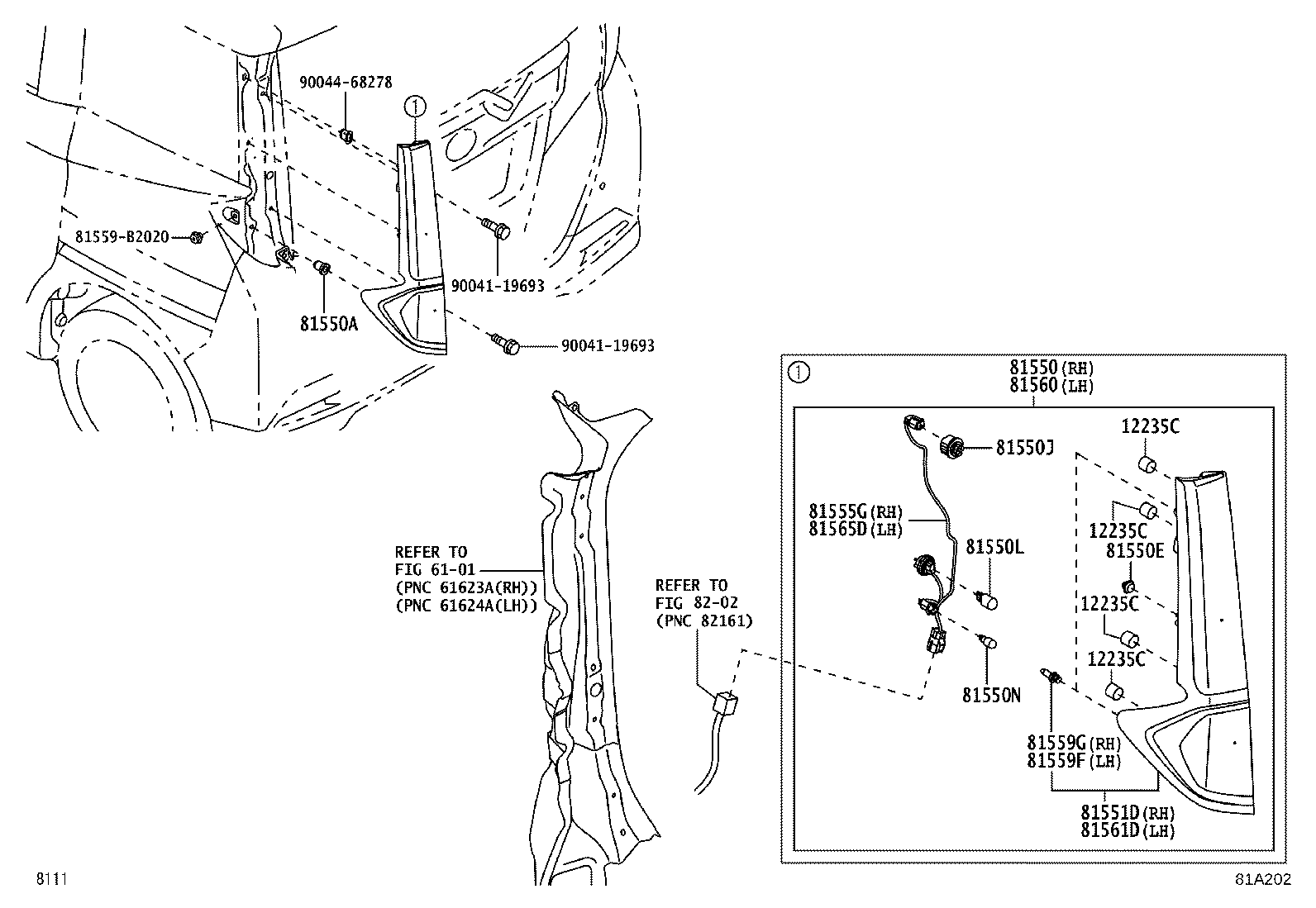

Click highlighted areas on diagram

diagram 12235C 12235C 12235C 12235C 6101 81550 81550A 81550E 81550J 81550L 81550N 81551D 81555G 81559B2020 81559F 81559G 81560 81561D 81565D 8202 9004119693 9004119693 9004468278
Part # Description Qty Price
12235C - CAP, VENTILATION
12235-B1010

1KR#..M900,910

 8
12235C - CAP, VENTILATION
12235-B1010

1KR#..M900,910

 8
12235C - CAP, VENTILATION
12235-B1010

1KR#..M900,910

 8
12235C - CAP, VENTILATION
12235-B1010

1KR#..M900,910

 8
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-B1360

M900,910..TANK..CTMG

 1
81550-B1370

M900,910..TANK..(G,X)

 1
81550A - RETAINER, REAR COMBINATION LAMP
76835-52010

M900,910

 2
81550E - CLIP(FOR REAR COMBINATION LAMP)
81559-B2140

M900,910

 2
81550J - SOCKET, TAIL & STOP LAMP
81945-B1020

M900,910..G,X

LEDﾊﾞﾙﾌﾞ(LR4B)付き

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90049-51179

M900,910

12V 21W

 2
81550N - BULB, BACK UP LAMP
90981-11059

M900,910

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-B1170

M900,910..TANK..(G,X)

ｸﾘｱﾚﾝｽﾞ

 1
81551-B1180

M900,910..TANK..CTMG

ｸﾘｱﾚﾝｽﾞ

 1
81555G - CORD, REAR COMBINATION LAMP, RH
81555-B1140

M900,910..CTMG

 1
81555-B1130

M900,910..G,X

 1
81559F - CLIP, RR COMBINATION LAMP, LH
81559-B2090

M900,910

 2
81559G - CLIP, RR COMBINATION LAMP, RH
81559-B2090

M900,910

 2
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-B1350

M900,910..TANK..CTMG

 1
81560-B1370

M900,910..TANK..(G,X)

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-B1120

M900,910..TANK..(G,X)

ｸﾘｱﾚﾝｽﾞ

 1
81561-B1130

M900,910..TANK..CTMG

ｸﾘｱﾚﾝｽﾞ

 1
81565D - CORD, REAR COMBINATION LAMP, LH
81555-B1130

M900,910..G,X

 1
81555-B1140

M900,910..CTMG

 1
Common parts
81559-B2020
90041-19693
90044-68278
Linked diagrams
6101
8202
