M910A-BGBVE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

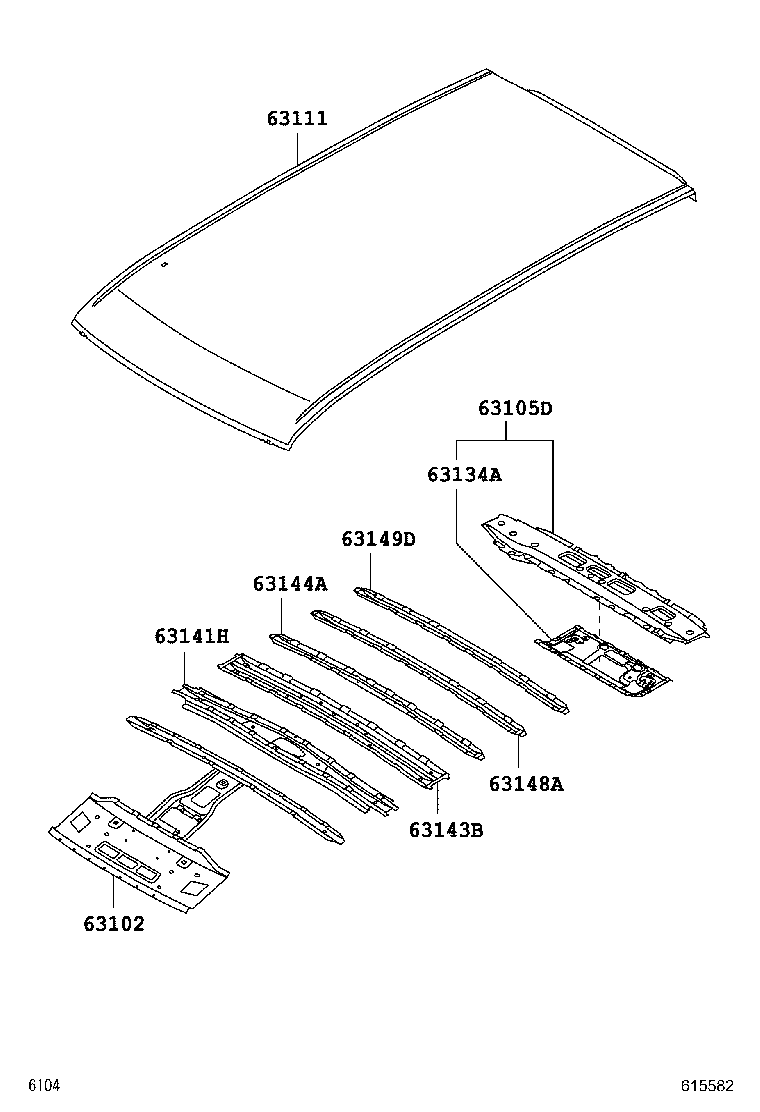

Click highlighted areas on diagram

diagram 63102 63105D 63111 63134A 63141H 63143B 63144A 63148A 63149D
Part # Description Qty Price
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63102-B1060

M900,910

 1
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-B1090

M900,910

 1
63111 - PANEL, ROOF
63111-B1080

M900,910

 1
63134A - FRAME, BACK DOOR OPENING, UPPER
63134-B1090

M900,910

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-B1070

M900,910

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-B1070

M900,910

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-B1030

M900,910

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-B1020

M900,910

 1
63149D - REINFORCEMENT, ROOF PANEL, NO.8
63149-B1010

M900,910

 1
