M910A-BGBVE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611-2009)M910

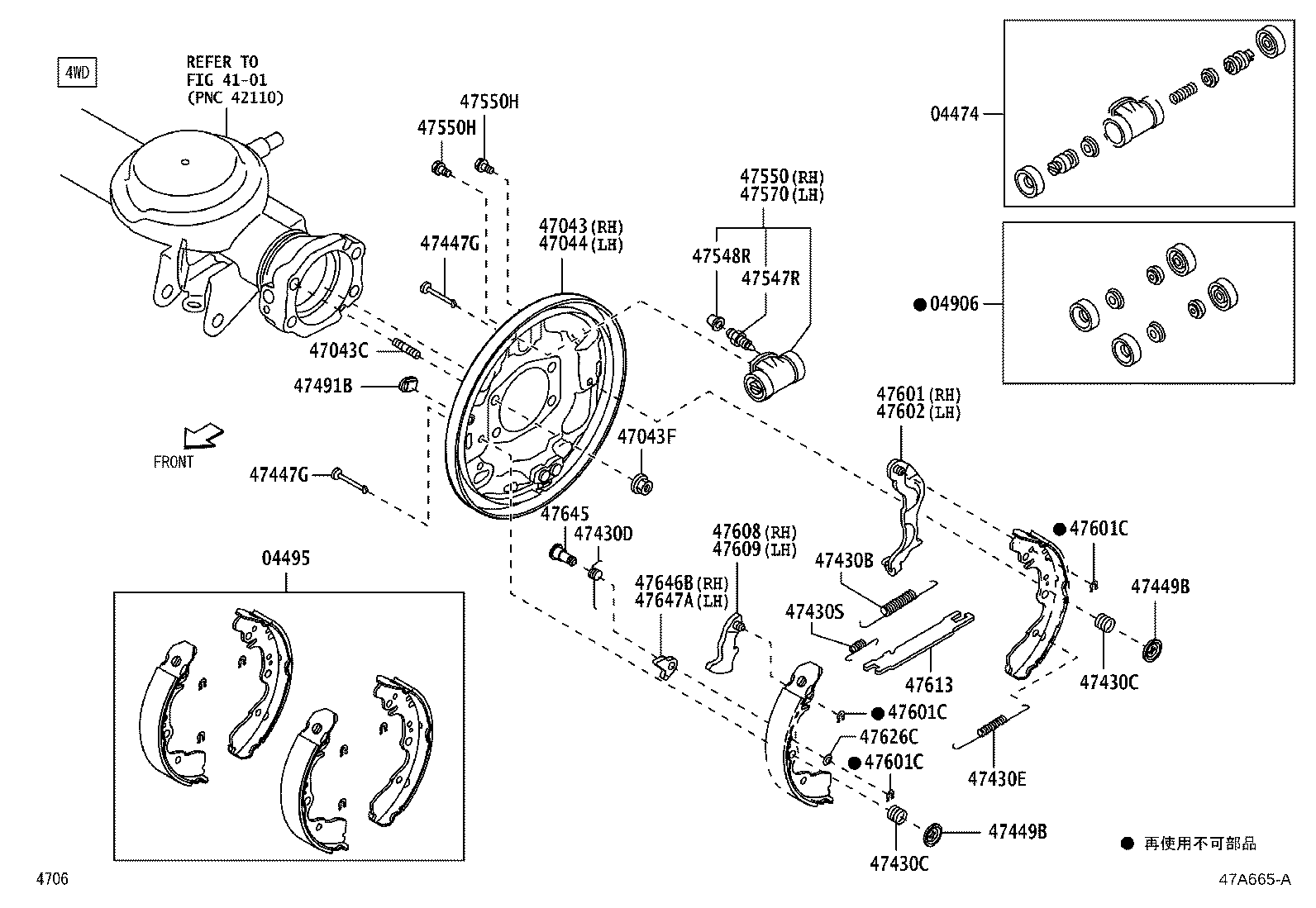

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B1010 |
M910 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B1051 |
M910 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-B2010 |
M910 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-97503 |
M910 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 46791-B5150 |
M910 |
8 | ||
| 42184-97501 |
M910 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90041-70336 |
M910 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-97503 |
M910 |
1 | ||
| 47430B - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06233 |
M910 |
2 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01854 |
M910 |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01854 |
M910 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-08373 |
M910 |
2 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90045-06250 |
M910 |
2 | ||
| 47430S - SPRING, TENSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90045-06196 |
M910 右側 |
1 | ||
| 90045-06199 |
M910 左側 |
1 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87501 |
M910 |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-87501 |
M910 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
M900,910 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
M900,910 |
4 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-B1010 |
M900,910 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87203 |
M910 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
M900,910 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47560-B5010 |
M910 |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90041-19848 |
M910 M6,L=11 |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90041-19848 |
M910 M6,L=11 |
4 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47560-B5010 |
M910 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47601-87504 |
M910 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
M910 |
6 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
M910 |
6 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90042-13007 |
M910 |
6 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47602-87504 |
M910 |
1 | ||
| 47608 - LEVER SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47608-87501 |
M910 |
1 | ||
| 47609 - LEVER SUB-ASSY, AUTOMTIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47609-87501 |
M910 |
1 | ||
| 47613 - STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE) | ||||
| 47613-87503 |
M910 |
2 | ||
| 47626C - WASHER, WAVE | ||||
| 90042-06041 |
M910 |
2 | ||
| 47645 - PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE) | ||||
| 47645-87201 |
M910 |
2 | ||
| 47646B - LATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE) | ||||
| 47646-97201 |
M910 |
1 | ||
| 47647A - LATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE) | ||||
| 47647-97201 |
M910 |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||
