M910A-BGBVE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )1KRFE

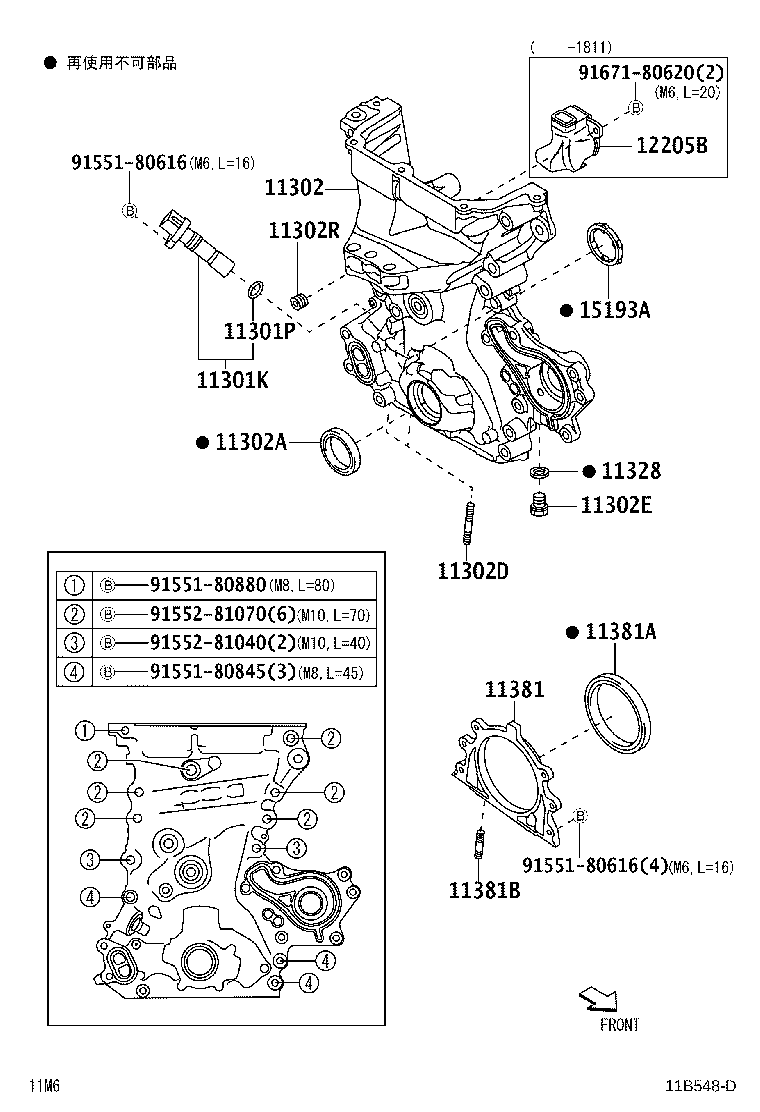

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05062 |
1KR#..M900,910 |
1 | ||
| 11301P - O RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
1KR#..M900,910 |
1 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-B1030 |
1KRFE..M900,910 |
1 | ||
| 11310-B1031 |
1KRFE..M900,910 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-38092 |
1KRFE..M900,910 |
1 | ||
| 11302D - BOLT, STUD(FOR TIMING GEAR COVER) | ||||
| 90116-06134 |
1KR#..M900,910 |
2 | ||
| 11302E - PLUG, STRAIGHT(FOR TIMING GEAR COVER) | ||||
| 90341-08008 |
1KR#..M900,910 |
1 | ||
| 11302R - PLUG, TIGHT, NO.1(FOR TIMING GEAR COVER) | ||||
| 90344-53006 |
1KR#..M900,910 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 90430-08020 |
1KR#..M900,910 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-40030 |
1KR#..M900,910 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-73005 |
1KR#..M900,910 |
1 | ||
| 11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) | ||||
| 90126-06029 |
1KR#..M900,910 |
1 | ||
| 12205B - CASE SUB-ASSY, VENTILATION | ||||
| 12205-40020 |
1KRFE..M900,910 |
1 | ||
| 15193A - GASKET, OIL PUMP | ||||
| 15193-40010 |
1KR#..M900,910 |
1 | ||
| Common parts | ||||
| 91551-80616 | ||||
| 91551-80845 | ||||
| 91551-80880 | ||||
| 91552-81040 | ||||
| 91552-81070 | ||||
| 91671-80620 | ||||
