M910A-BGBME (2016)
Toyota Tank/Roomy

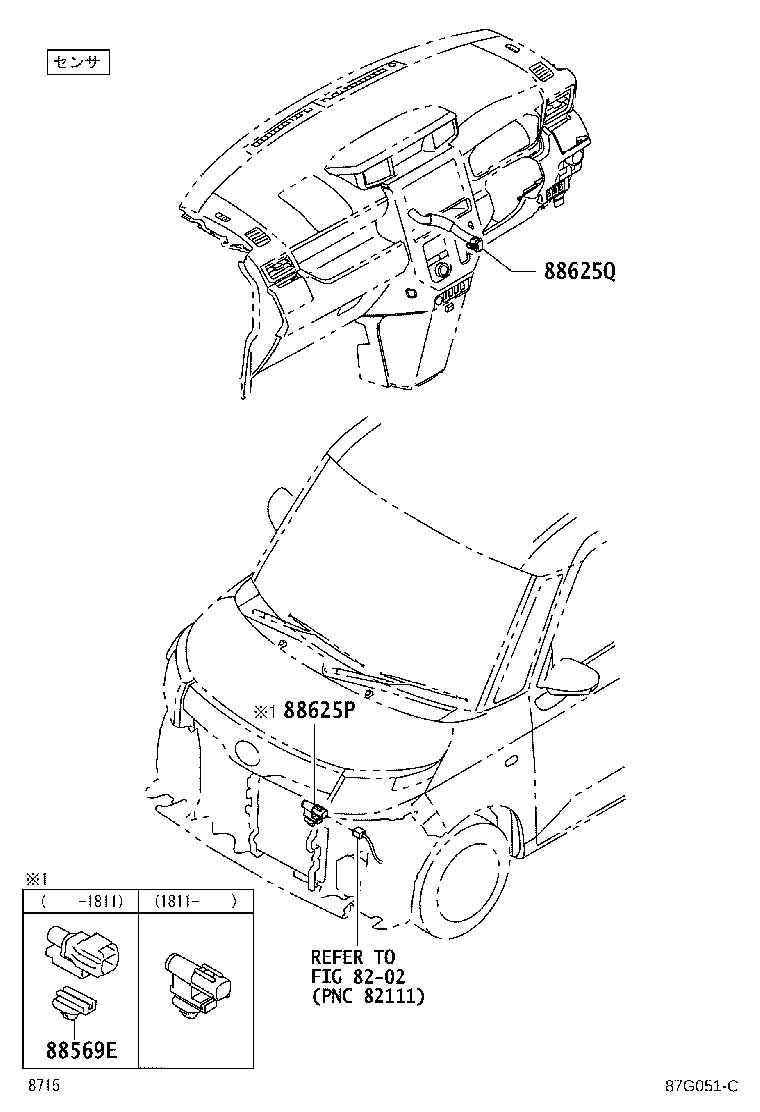

ILLUST NO. 3 OF 3(1611- )
ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88569E - CLAMP (FOR COOLER THERMISTOR) | ||||
| 82711-1E360 |
M900,910 |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
M900,910 |
1 | ||
| 88790-B2160 |
M900,910 |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-B1080 |
M900,910..CTMG,G |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||

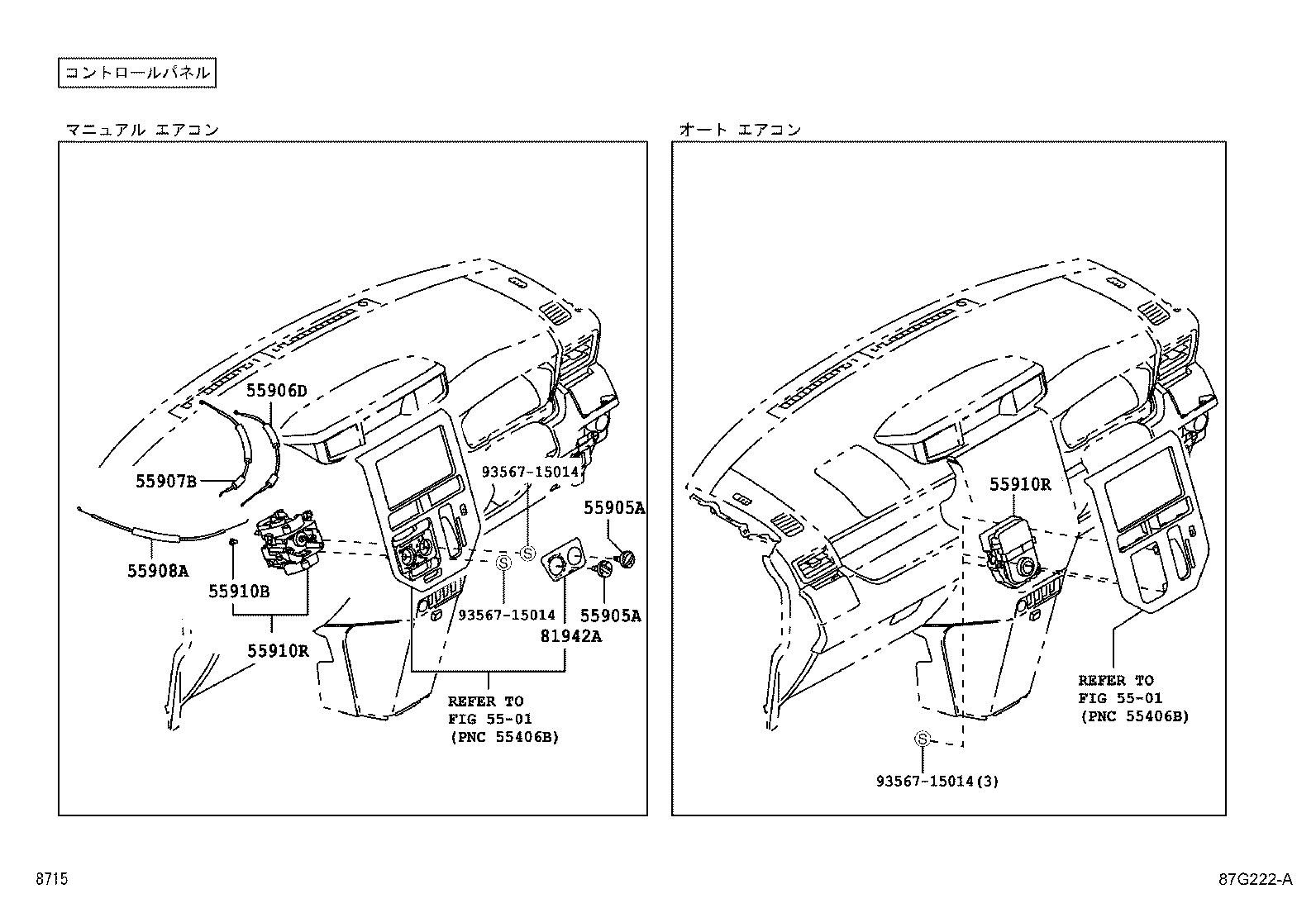

ILLUST NO. 1 OF 3(1611-2009)
ｺﾝﾄﾛｰﾙ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B2180 |
M900,910..X |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-B2180 |
M900,910..X |
2 | ||
| 55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2 | ||||
| 55906-B1080 |
M900,910..X 吹き出し口切替用 |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-B1080 |
M900,910..X 温度調整用 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-B1080 |
M900,910..X 内外気切替用 |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 81936-B2040 |
M900,910..X |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B2331 |
M900,910..X |
1 | ||
| 55910-B1150 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1170 |
M900,910..G..NTBO G”ﾘﾐﾃｯﾄﾞ”,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1171 |
M900,910..G..NTBO G”ﾘﾐﾃｯﾄﾞ”,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1151 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-B2331 |
M900,910..X |
1 | ||
| 55910-B1150 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1170 |
M900,910..G..NTBO G”ﾘﾐﾃｯﾄﾞ”,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1171 |
M900,910..G..NTBO G”ﾘﾐﾃｯﾄﾞ”,品番ﾗﾍﾞﾙ有り |
1 | ||
| 55910-B1151 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-B2370 |
M900,910..X |
1 | ||
| Common parts | ||||
| 93567-15014 | ||||
| Linked diagrams | ||||
| 5501 | ||||

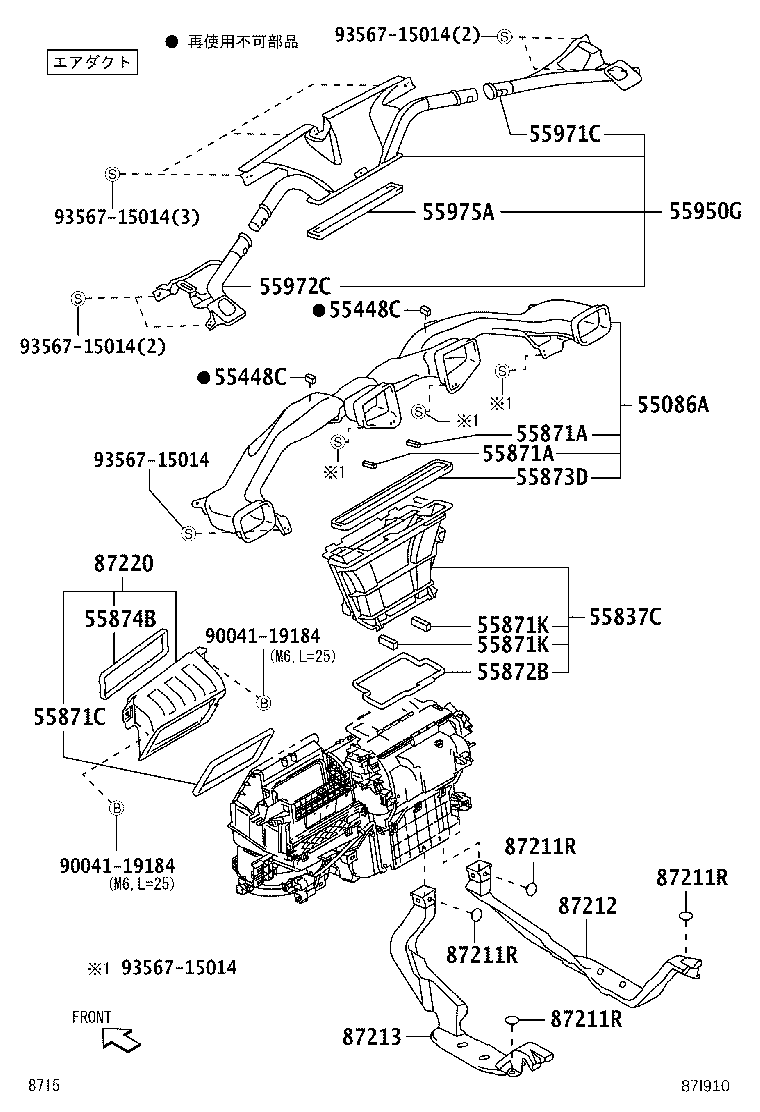

ILLUST NO. 2 OF 3(1611- )
ｴｱ ﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55086A - DUCT SUB-ASSY, HEATER TO REGISTER, CENTER | ||||
| 55086-B1130 |
M900,910 |
1 | ||
| 55448C - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55356-B1080 |
M900,910 |
2 | ||
| 55448C - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55356-B1080 |
M900,910 |
2 | ||
| 55837C - DUCT, HEATER TO REGISTER CENTER SUB | ||||
| 55837-B1010 |
M900,910 |
1 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55874-B2130 |
M900,910 |
2 | ||
| 55871A - SEAL, AIR DUCT, NO.1 | ||||
| 55874-B2130 |
M900,910 |
2 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55875-B1030 |
M900,910 |
1 | ||
| 55871K - SEAL, AIR DUCT | ||||
| 55871-B1060 |
M900,910 |
2 | ||
| 55871K - SEAL, AIR DUCT | ||||
| 55871-B1060 |
M900,910 |
2 | ||
| 55872B - SEAL, AIR DUCT,NO.2 | ||||
| 55874-B2120 |
M900,910 |
1 | ||
| 55873D - SEAL, AIR DUCT, CENTER | ||||
| 55873-B2150 |
M900,910 |
1 | ||
| 55874B - SEAL, AIR DUCT, NO.4 | ||||
| 55876-B1020 |
M900,910 |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-B1100 |
M900,910 |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55961-B1010 |
M900,910 |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55962-B1010 |
M900,910 |
1 | ||
| 55975A - SEAL, DEFROSTER NOZZLE, NO.1 | ||||
| 55975-B1070 |
M900,910 |
1 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M900,910 |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M900,910 |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M900,910 |
4 | ||
| 87211R - CLIP, AIR DUCT | ||||
| 90044-68167 |
M900,910 |
4 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-B1030 |
M900,910 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-B1020 |
M900,910 |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-B1140 |
M900,910 |
1 | ||
| Common parts | ||||
| 90041-19184 | ||||
| 93567-15014 | ||||
