M910A-BGBME (2016)
Toyota Tank/Roomy
(1611-2009)TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 85967-B1010 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 85967-B1010 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-B1590 |
M900,910..TANK..(G,X) |
1 | ||
| 81110-B1600 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-B1590 |
M900,910..TANK..(G,X) |
1 | ||
| 81110-B1600 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90049-51088 |
M900,910..G,X 12V 60/55W |
2 | ||
| GAITO-NASHI |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-B2070 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-B1240 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81130-B1230 |
M900,910..TANK..(G,X) |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-B1240 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81130-B1230 |
M900,910..TANK..(G,X) |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-B2030 |
M900,910..G,X |
2 | ||
| GAITO-NASHI |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-B1550 |
M900,910..TANK..(G,X) |
1 | ||
| 81150-B1560 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-B1550 |
M900,910..TANK..(G,X) |
1 | ||
| 81150-B1560 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-B1240 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81170-B1230 |
M900,910..TANK..(G,X) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-B1240 |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81170-B1230 |
M900,910..TANK..(G,X) |
1 | ||
| 81196 - RETAINER, HEADLAMP | ||||
| 90044-68320 |
M900,910 |
2 | ||
| 90044-68378 |
M900,910 |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90049-51143 |
M900,910 12V 21W |
2 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90049-51143 |
M900,910 12V 21W |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81945-B1010 |
M900,910 |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81945-B1010 |
M900,910 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90049-51183 |
M900,910..G,X 12V 5W |
2 | ||
| GAITO-NASHI |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 81125-B4010 |
M900,910..G,X |
2 | ||
| GAITO-NASHI |
M900,910..TANK..G LEDﾍｯﾄﾞﾗﾝﾌﾟ |
2 | ||
| Common parts | ||||
| 90041-05546 | ||||
| 90041-20323 | ||||

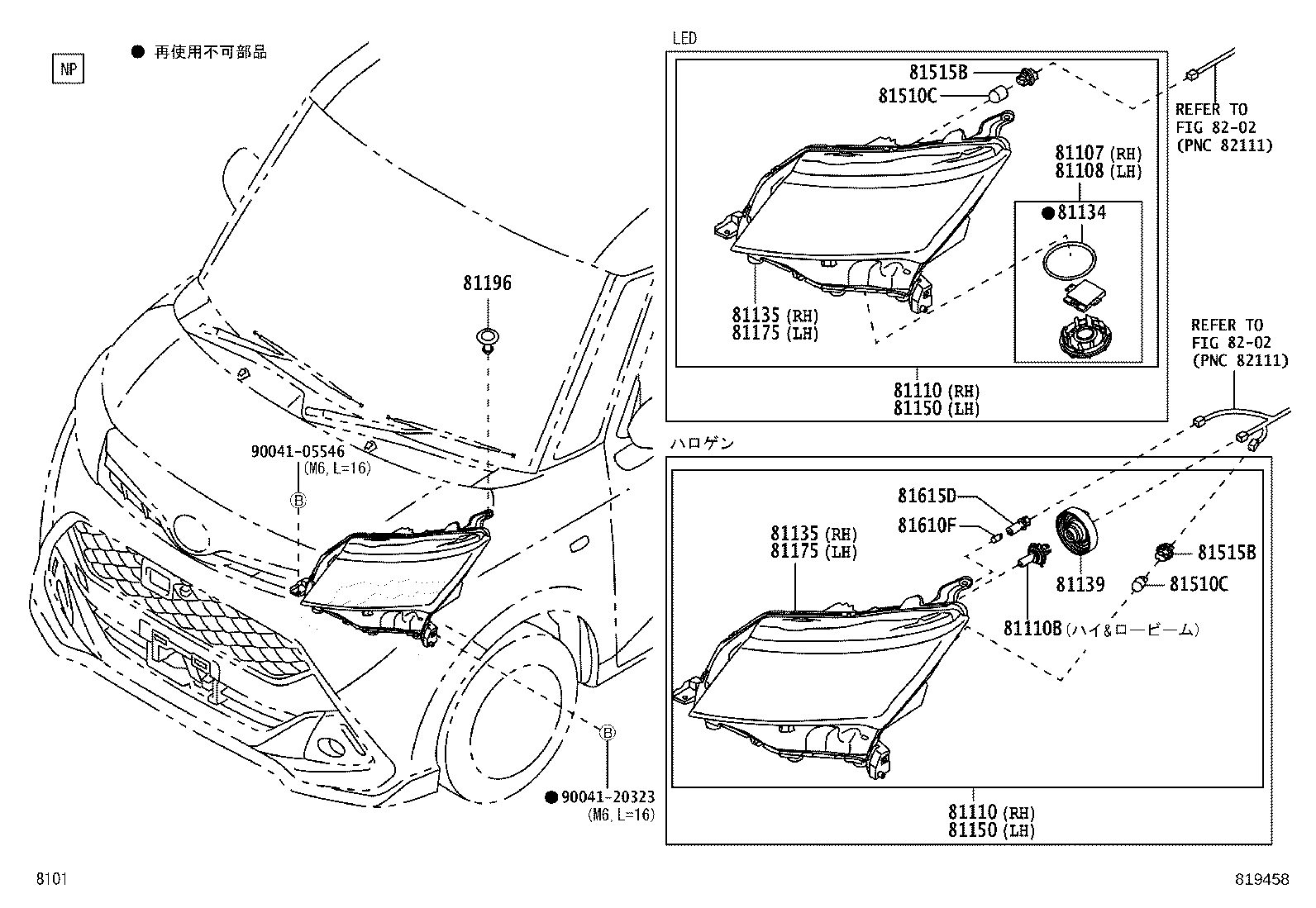

| Linked diagrams | ||||
| 8202 | ||||
