M910A-BGBME (2016)
Toyota Tank/Roomy

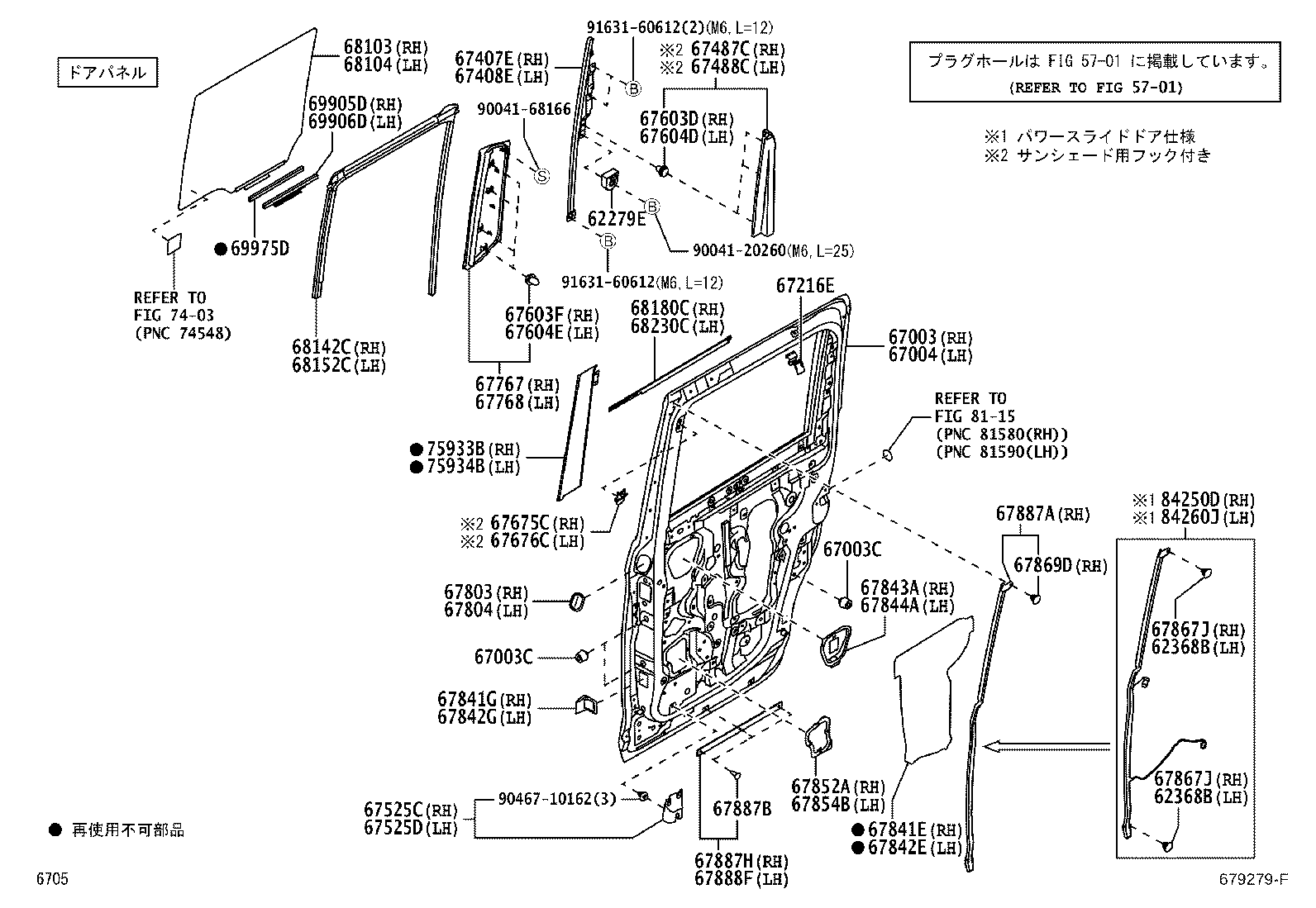

ILLUST NO. 1 OF 2(1611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62279E - SPACER, SIDE WINDOW FRAME | ||||
| 62279-B2020 |
M900,910 |
2 | ||
| 62368B - CLIP, DOOR WINDOW GLASS, REAR LH | ||||
| 67869-28020 |
M900,910 |
2 | ||
| 62368B - CLIP, DOOR WINDOW GLASS, REAR LH | ||||
| 67869-28020 |
M900,910 |
2 | ||
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-B1100 |
M900,910 |
1 | ||
| 67003-B1101 |
M900,910 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
M900,910 |
3 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09069 |
M900,910 |
3 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-B1100 |
M900,910 |
1 | ||
| 67004-B1101 |
M900,910 |
1 | ||
| 67216E - STOPPER, REAR DOOR GLASS, UPPER NO.2 | ||||
| 67216-B1030 |
M900,910 |
2 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-B1060 |
M900,910 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-B1060 |
M900,910 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-B1050 |
M900,910 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-B1040 |
M900,910 |
1 | ||
| 67525C - COVER, SLIDE DOOR PANEL, LOWER RH | ||||
| 67525-B2010 |
M900,910 |
1 | ||
| 67525D - COVER, SLIDE DOOR PANEL, LOWER LH | ||||
| 67526-B2020 |
M900,910 |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-B2010 |
M900,910 |
3 | ||
| 67603F - RETAINER, REAR DOOR TRIM, NO.2 RH | ||||
| 67771-B2010 |
M900,910 |
4 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-B2010 |
M900,910 |
3 | ||
| 67604E - RETAINER, REAR DOOR TRIM, NO.2 LH | ||||
| 67771-B2010 |
M900,910 |
4 | ||
| 67675C - GARNISH, REAR DOOR FRAME, NO.2 RH | ||||
| 67675-B2020 |
M900,910 |
1 | ||
| 67675-B2021 |
M900,910 |
1 | ||
| 67676C - GARNISH, REAR DOOR FRAME, NO.2 LH | ||||
| 67676-B2030 |
M900,910 |
1 | ||
| 67676-B2031 |
M900,910 |
1 | ||
| 67767 - MOULDING, REAR DOOR TRIM UPPER, RH | ||||
| 75765-B1010 |
M900,910 |
1 | ||
| 67768 - MOULDING, REAR DOOR TRIM UPPER, LH | ||||
| 75766-B1010 |
M900,910 |
1 | ||
| 67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH | ||||
| 67851-B1020 |
M900,910 |
1 | ||
| 67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH | ||||
| 67852-B1060 |
M900,910 |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-B1110 |
M900,910 |
1 | ||
| 67841G - COVER, SLIDE DOOR SERVICE HOLE, RH | ||||
| 67851-B1011 |
M900,910 |
1 | ||
| 67851-B1010 |
M900,910 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-B1110 |
M900,910 |
1 | ||
| 67842G - COVER, SLIDE DOOR SERVICE HOLE, LH | ||||
| 67852-B1051 |
M900,910 |
1 | ||
| 67852-B1050 |
M900,910 |
1 | ||
| 67843A - COVER, REAR DOOR SERVICE HOLE, NO.2 | ||||
| 67843-B2071 |
M900,910 |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-B2081 |
M900,910 |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-B2051 |
M900,910 |
1 | ||
| 67854B - COVER, SLIDE DOOR SERVICE HOLE, NO.3 | ||||
| 67854-B2031 |
M900,910 |
1 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67869-28020 |
M900,910..CTMG,G |
2 | ||
| 67867J - CLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR) | ||||
| 67869-28020 |
M900,910..CTMG,G |
2 | ||
| 67869D - CLIP, DOOR WEATHERSTRIP | ||||
| 67869-28020 |
M900,910..X |
2 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-B1020 |
M900,910..X |
1 | ||
| 67887B - CLIP(FOR REAR DOOR WEATHERSTRIP) | ||||
| 90044-67621 |
M900,910 寒冷地仕様 |
6 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-B2070 |
M900,910 寒冷地仕様 |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-B2070 |
M900,910 寒冷地仕様 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-B1110 |
M900,910 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-B1110 |
M900,910 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-B1070 |
M900,910 |
1 | ||
| 68142-B1071 |
M900,910 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-B1070 |
M900,910 |
1 | ||
| 68152-B1071 |
M900,910 |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68163-B1060 |
M900,910 |
1 | ||
| 68163-B1061 |
M900,910 |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68164-B1061 |
M900,910 |
1 | ||
| 68164-B1060 |
M900,910 |
1 | ||
| 69905D - CHANNEL SUB-ASSY, SLIDE DOOR GLASS, RH | ||||
| 69906-B2050 |
M900,910 |
1 | ||
| 69906D - CHANNEL SUB-ASSY, SLIDE DOOR GLASS, LH | ||||
| 69905-B2050 |
M900,910 |
1 | ||
| 69975D - FILLER, REAR DOOR GLASS CHANNAL | ||||
| 69975-87702 |
M900,910 |
2 | ||
| 75933B - TAPE, BLACK OUT, OUTER FRONT RH | ||||
| 75933-B1010C0 |
M900,910..TANK..G TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,Y14 |
1 | ||
| 75934B - TAPE, BLACK OUT, OUTER FRONT LH | ||||
| 75934-B1010C0 |
M900,910..TANK..G TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,Y14 |
1 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-B1040 |
M900,910..CTMG,G |
1 | ||
| 84250-B1041 |
M900,910..CTMG,G |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-B1010 |
M900,910 |
1 | ||
| 84260-B1011 |
M900,910 |
1 | ||
| Common parts | ||||
| 90041-20260 | ||||
| 90041-68166 | ||||
| 90467-10162 | ||||
| 91631-60612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 7403 | ||||
| 8115 | ||||

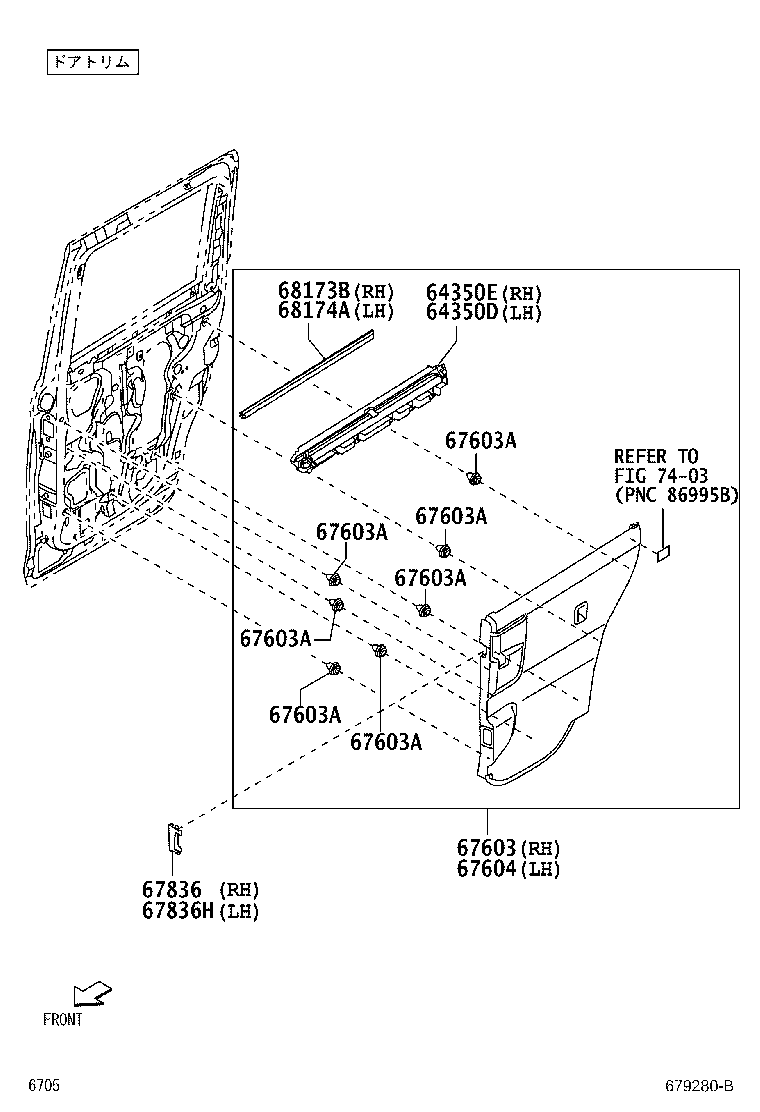

ILLUST NO. 2 OF 2(1611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64350D - SHADE ASSY, REAR DOOR TRIM LH | ||||
| 64350-B1020C0 |
M900,910 BLACK,TRIM1# |
1 | ||
| 64350E - SHADE ASSY, REAR DOOR TRIM RH | ||||
| 64350-B1010C0 |
M900,910 BLACK,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-B1100C0 |
M900,910..CTMG,G BLACK,TRIM1# |
1 | ||
| 67630-B1101C0 |
M900,910..CTMG,G BLACK,TRIM1# |
1 | ||
| 67630-B1110C0 |
M900,910..X BLACK,TRIM1# |
1 | ||
| 67630-B1111C0 |
M900,910..X BLACK,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-B2080 |
M900,910 |
14 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-B1100C0 |
M900,910 BLACK,TRIM1# |
1 | ||
| 67640-B1101C0 |
M900,910 BLACK,TRIM1# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-B1030 |
M900,910 |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67846-B1010 |
M900,910 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-B1060 |
M900,910 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-B1060 |
M900,910 |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||
