M910A-BGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-1811)TANK ; (1811-2009)TANK..X

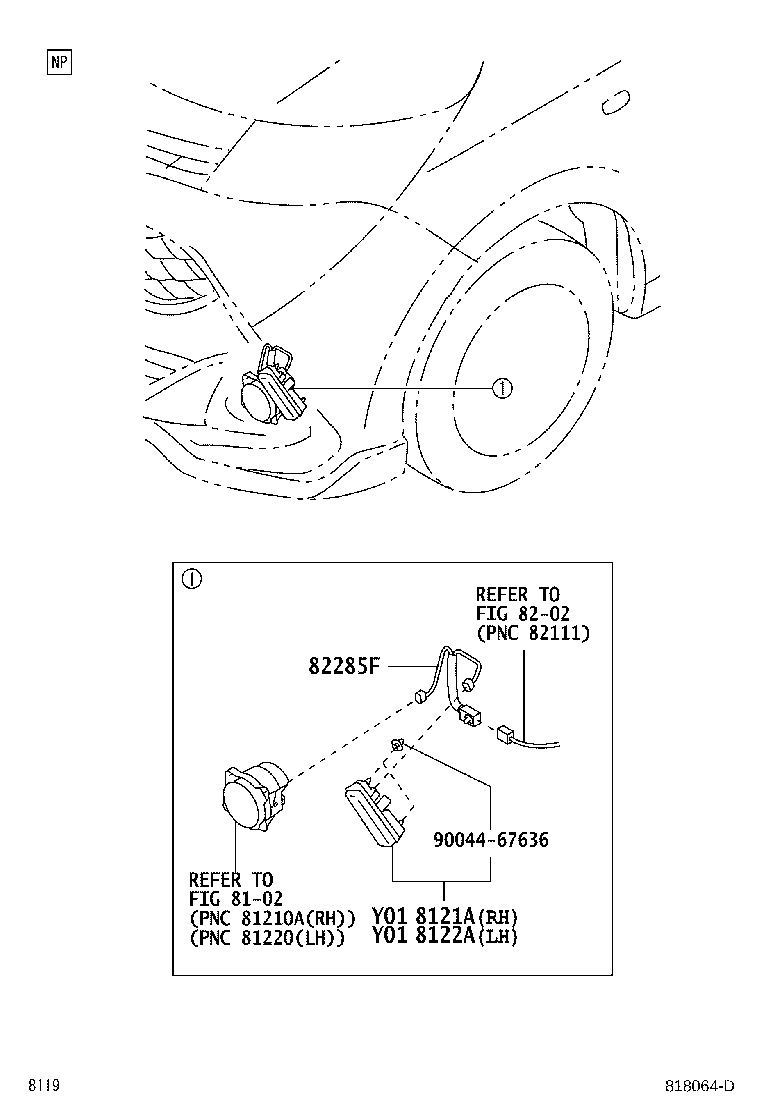

Click highlighted areas on diagram

ｽﾏｰﾄｱｼｽﾄ3ｲｶﾞｲ

diagram 8102 8121A 8122A 8202 82285F 9004467636
Part # Description Qty Price
8121A - LAMP, LED ILLUMINATION, RH
812A0-B1020

M900,910..TANK..(G,X)

LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き)

 1
8122A - LAMP, LED ILLUMINATION, LH
812B0-B1020

M900,910..TANK..(G,X)

LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き)

 1
82285F - WIRE, ILLUMINATION
82285-B1040

M900,910..G,X

LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き)

 2
Common parts
90044-67636
Linked diagrams
8102
8202

(1811-2009)TANK

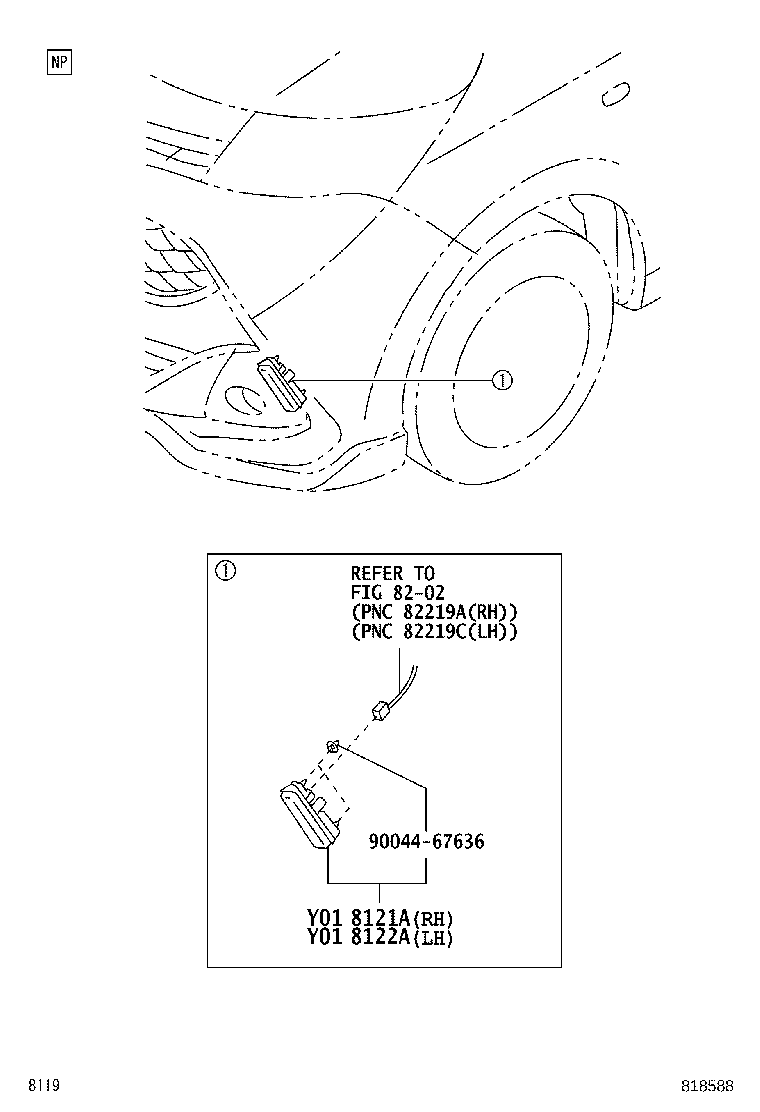

Click highlighted areas on diagram

ｽﾏｰﾄｱｼｽﾄ3

diagram 8121A 8122A 8202 9004467636
Part # Description Qty Price
8121A - LAMP, LED ILLUMINATION, RH
812A0-B1020

M900,910..TANK..(G,X)

LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き)

 1
8122A - LAMP, LED ILLUMINATION, LH
812B0-B1020

M900,910..TANK..(G,X)

LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き)

 1
Common parts
90044-67636
Linked diagrams
8202
