M910A-AGBVE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

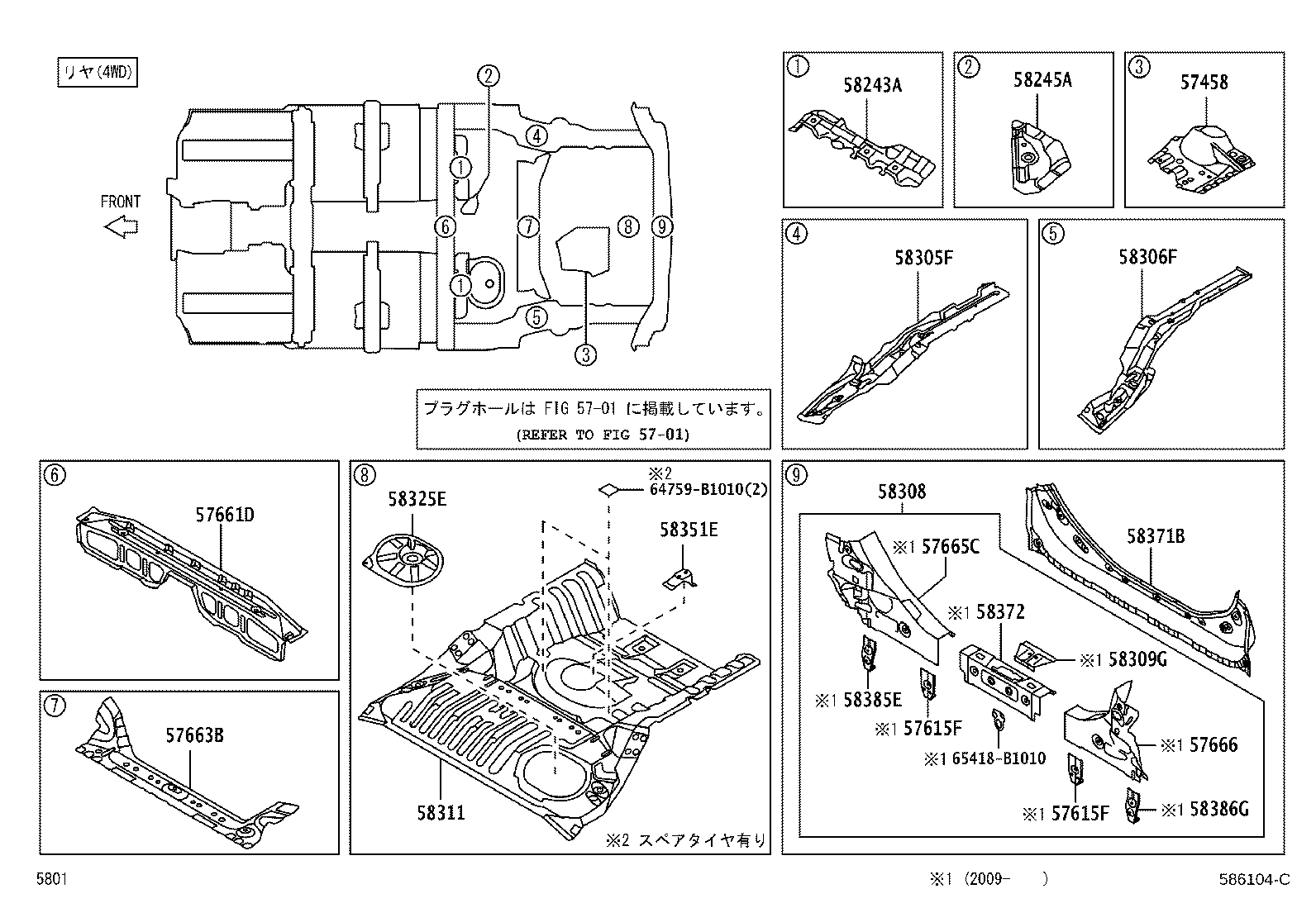

ILLUST NO. 2 OF 2(1611- )M910

Click highlighted areas on diagram

diagram 5701 57458 57615F 57615F 57661D 57663B 57665C 57666 58243A 58245A 58305F 58306F 58308 58309G 58311 58325E 58351E 58371B 58372 58385E 58386G 64759B1010 65418B1010
Part # Description Qty Price
57458 - MEMBER, FRONT FLOOR CROSS, NO.1
57458-B1010

M910

 1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57661-B1050

M900,910

 1
57663B - PANEL, REAR FLOOR SIDE, REAR RH
57663-B1040

M900,910

 1
58243A - BRACKET, REAR SEAT HINGE FRONT
58243-B1030

M910

右側

 1
58243-B1040

M910

左側

 1
58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1
58245-B1020

M910

 1
58305F - PANEL SUB-ASSY, REAR FLOOR SIDE, RH
58305-B1040

M900,910

 1
58306F - PANEL SUB-ASSY, REAR FLOOR SIDE, LH
58306-B1040

M900,910

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-B1020

M900,910

 1
58311 - PAN, REAR FLOOR
58311-B1060

M910

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-B1060

M910

 1
58351E - BRACKET, SPARE WHEEL CLAMP
58351-B1030

M900,910

 1
58371B - PANEL, BODY LOWER BACK, OUTER
58371-B1070

M900,910

 1
Common parts
64759-B1010
65418-B1010
Linked diagrams
5701

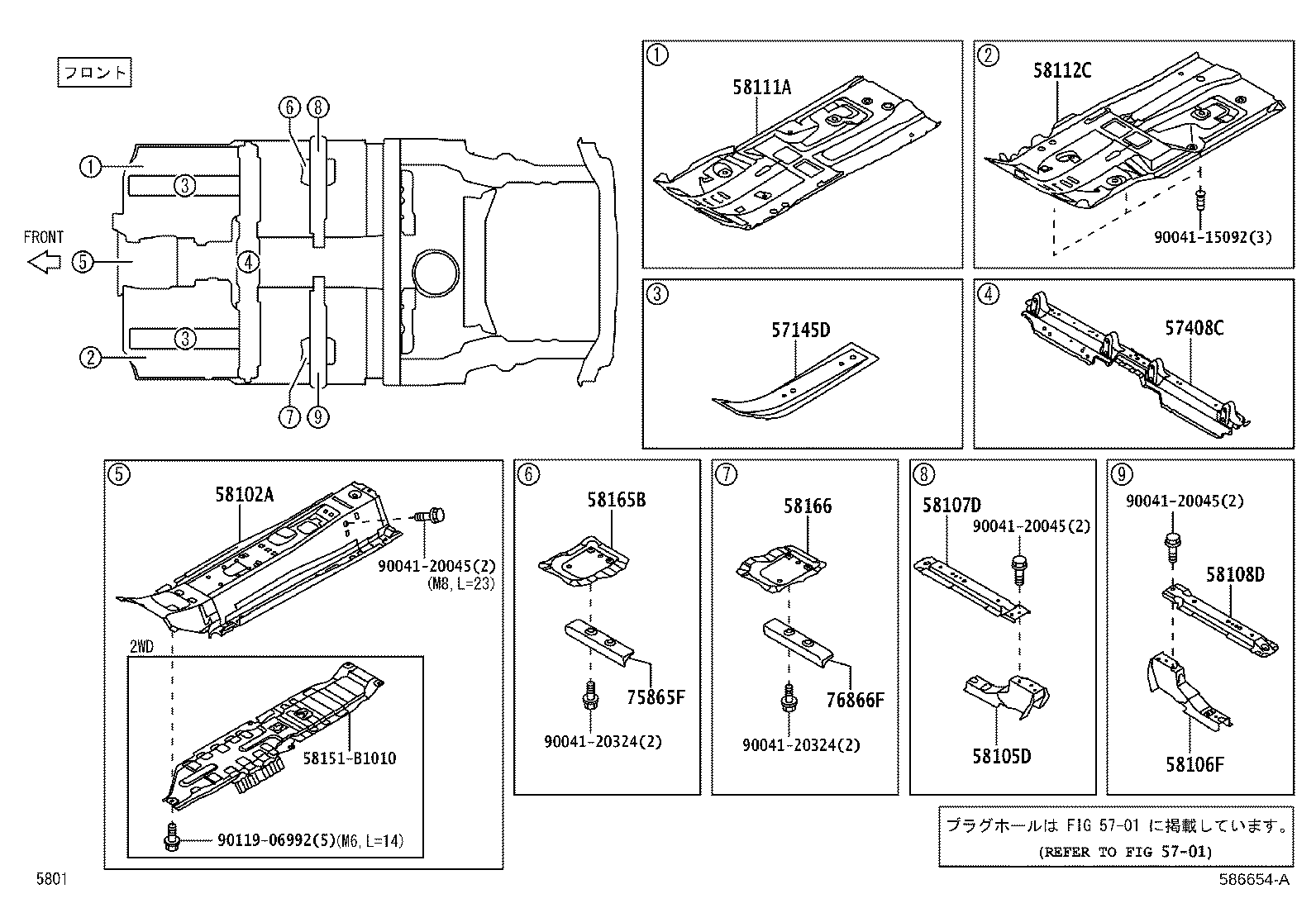

ILLUST NO. 1 OF 2(1611- )

Click highlighted areas on diagram

diagram 5701 57145D 57408C 58102A 58105D 58106F 58107D 58108D 58111A 58112C 58151B1010 58165B 58166 75865F 76866F 9004115092 9004120045 9004120045 9004120045 9004120324 9004120324 9011906992
Part # Description Qty Price
57145D - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN
57145-B1010

M900,910

 2
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57051-B1060

M900,910

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-B1570

M910

 1
58105D - RETAINER SUB-ASSY, SEAT RAIL, REAR RH
58105-B1010

M900,910

 1
58106F - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH
58106-B1010

M900,910

 1
58107D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58107-B1060

M900,910

 1
58108D - REINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58107-B1060

M900,910

 1
58111A - PAN, FRONT FLOOR, RH
58111-B1020

M900,910

 1
58112C - PAN, FRONT FLOOR, LH
58112-B1040

M900,910

 1
58165B - COVER, FRONT FLOOR, RH
58165-B1010

M900,910

 1
58166 - COVER, FRONT FLOOR, LH
58166-B1010

M900,910

 1
75865F - PROTECTOR, ROCKER PANEL MOULDING, NO.5
75865-B2010

M900,910

 1
76866F - PROTECTOR, ROCKER PANEL MOULDING, NO.6
75866-B2010

M900,910

 1
Common parts
58151-B1010
90041-15092
90041-20045
90041-20324
90119-06992
Linked diagrams
5701
