M910A-AGBVE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )M910

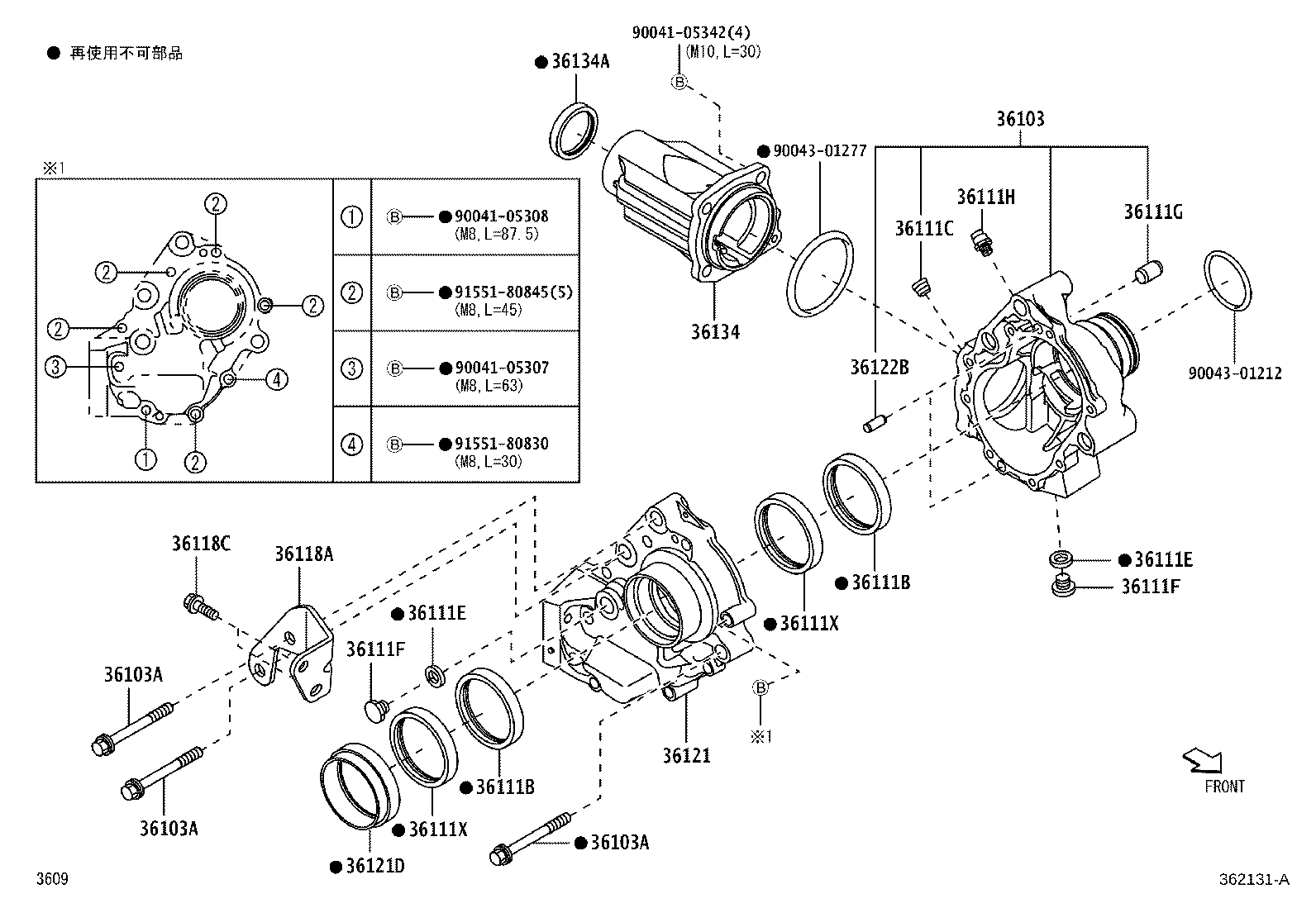

Click highlighted areas on diagram

diagram 36103 36103A 36103A 36103A 36111B 36111B 36111C 36111E 36111E 36111F 36111F 36111G 36111H 36111X 36111X 36118A 36118C 36121 36121D 36122B 36134 36134A 9004105307 9004105308 9004105342 9004301212 9004301277 9155180830 9155180845
Part # Description Qty Price
36103 - CASE SUB-ASSY, TRANSFER
36103-B1030

M910

 1
36103A - BOLT (FOR TRANSFER CASE)
90041-20083

M910

 3
36103A - BOLT (FOR TRANSFER CASE)
90041-20083

M910

 3
36103A - BOLT (FOR TRANSFER CASE)
90041-20083

M910

 3
36111B - SEAL, OIL (FOR TRANSFER CASE)
90043-11415

M910

 2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90043-11415

M910

 2
36111C - PLUG (FOR TRANSFER CASE)
90043-44020

M910

 1
36111E - GASKET (FOR TRANSFER CASE)
90044-30178

M910

 2
36111E - GASKET (FOR TRANSFER CASE)
90044-30178

M910

 2
36111F - PLUG (FOR TRANSFER CASE)
90341-16012

M910

 2
36111F - PLUG (FOR TRANSFER CASE)
90341-16012

M910

 2
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90042-50173

M910

長さ=22,外径=14

 1
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90049-15026

M910

 1
36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2
90043-11416

M910

 2
36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2
90043-11416

M910

 2
36118A - PLATE, TRANSFER STIFFENER, RH
36119-B1011

M910

 1
36118C - BOLT (FOR TRANSFER STIFFENER PLATE)
91671-80820

M910

 2
36121 - COVER, TRANSFER CASE, NO.1
36121-B1030

M910

 1
36121D - SEAL, OIL(FOR TRANSFER CASE COVER)
90043-11333

M910

 1
36122B - PIN, STRAIGHT(FOR TRANSFER CASE COVER)
90042-50020

M910

 2
36134 - RETAINER, OUTPUT SHAFT BEARING, FRONT
36134-B1010

M910

 1
36134A - SEAL, OIL (FOR OUTPUT SHAFT BEARING FRONT RETAINER)
90043-11414

M910

 1
Common parts
90041-05307
90041-05308
90041-05342
90043-01212
90043-01277
91551-80830
91551-80845
