M910A-AGBVE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )1KRFE..M910

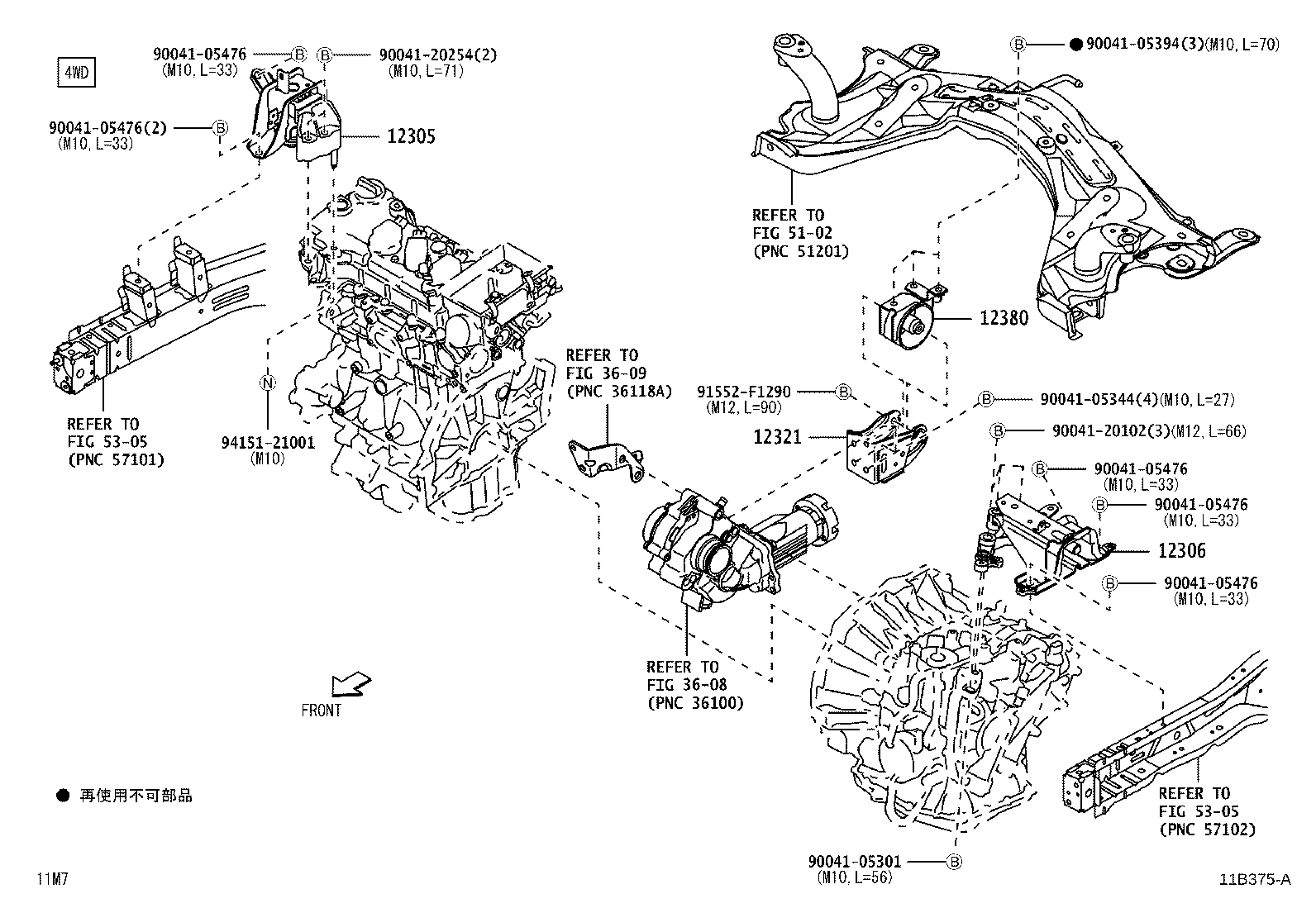

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-B1141 |
1KRFE..M900,910 |
1 | ||
| 12305-B1140 |
1KRFE..M900,910 |
1 | ||
| 12306 - INSULATOR SUB-ASSY, ENGINE MOUNTING, LH | ||||
| 12306-B1140 |
1KRFE..M900,910 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-B1020 |
1KRFE..M910 |
1 | ||
| 12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR | ||||
| 12380-B1070 |
1KRFE..M910 |
1 | ||
| Common parts | ||||
| 90041-05301 | ||||
| 90041-05344 | ||||
| 90041-05394 | ||||
| 90041-05476 | ||||
| 90041-20102 | ||||
| 90041-20254 | ||||
| 91552-F1290 | ||||
| 94151-21001 | ||||
| Linked diagrams | ||||
| 3608 | ||||
| 3609 | ||||
| 5102 | ||||
| 5305 | ||||
