M910A-AGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-2009)M910 ; (2009- )M910..G,X

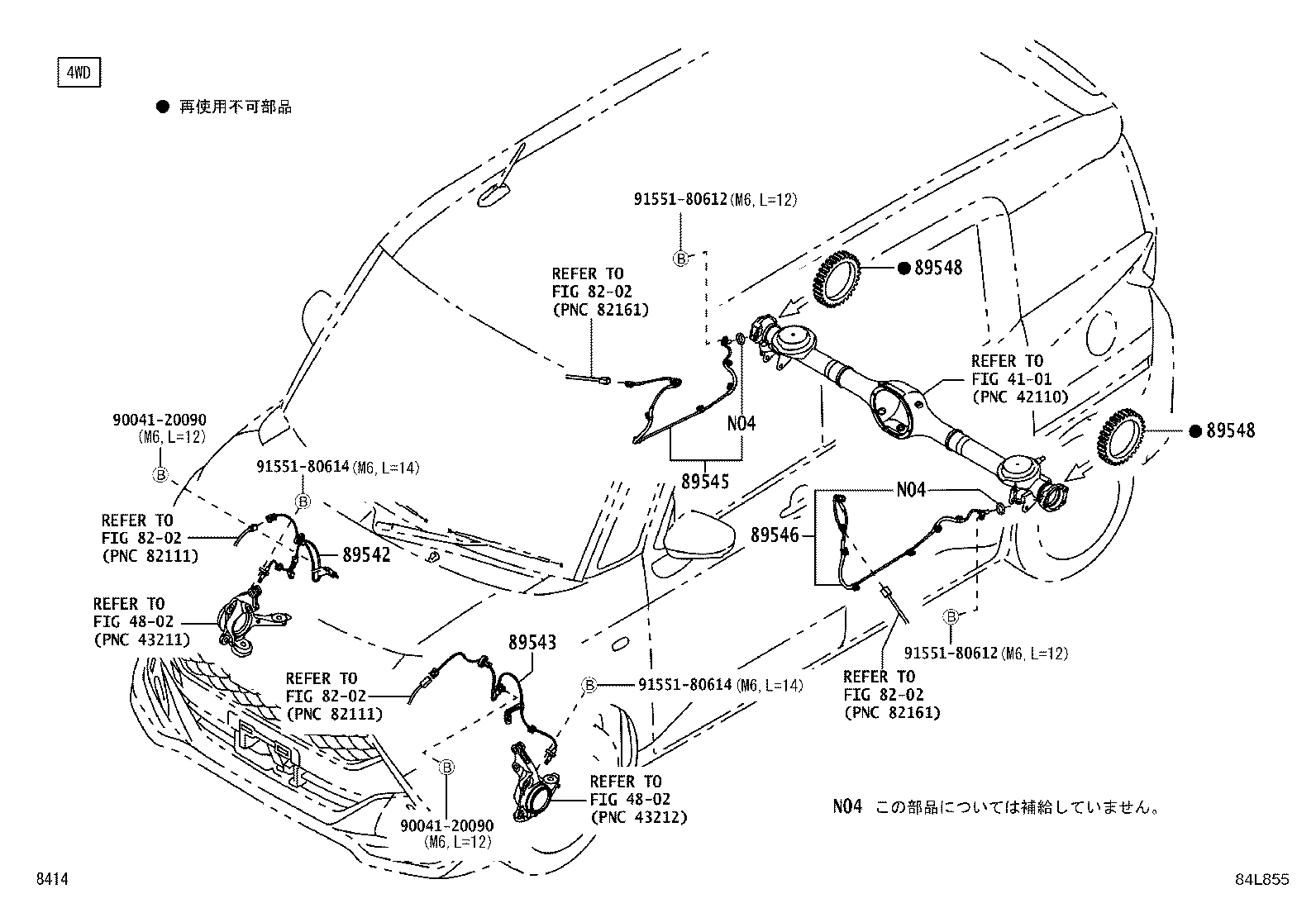

Click highlighted areas on diagram

ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ ﾅｼ

diagram 4101 4802 4802 8202 8202 8202 8202 89542 89543 89545 89546 89548 89548 9004120090 9004120090 9155180612 9155180612 9155180614 9155180614
Part # Description Qty Price
89542 - SENSOR, SPEED, FRONT RH
89542-B1040

M900,910

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B1050

M900,910

 1
89545 - SENSOR, SPEED, REAR RH
89545-B1100

M910

O−ﾘﾝｸﾞ付き

 1
89546 - SENSOR, SPEED, REAR LH
89546-B1100

M910

O−ﾘﾝｸﾞ付き

 1
89548 - ROTOR, SKID CONTROL SENSOR
89547-97506

M910

 2
89548 - ROTOR, SKID CONTROL SENSOR
89547-97506

M910

 2
Common parts
90041-20090
91551-80612
91551-80614
Linked diagrams
4101
4802
8202
