M910A-AGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

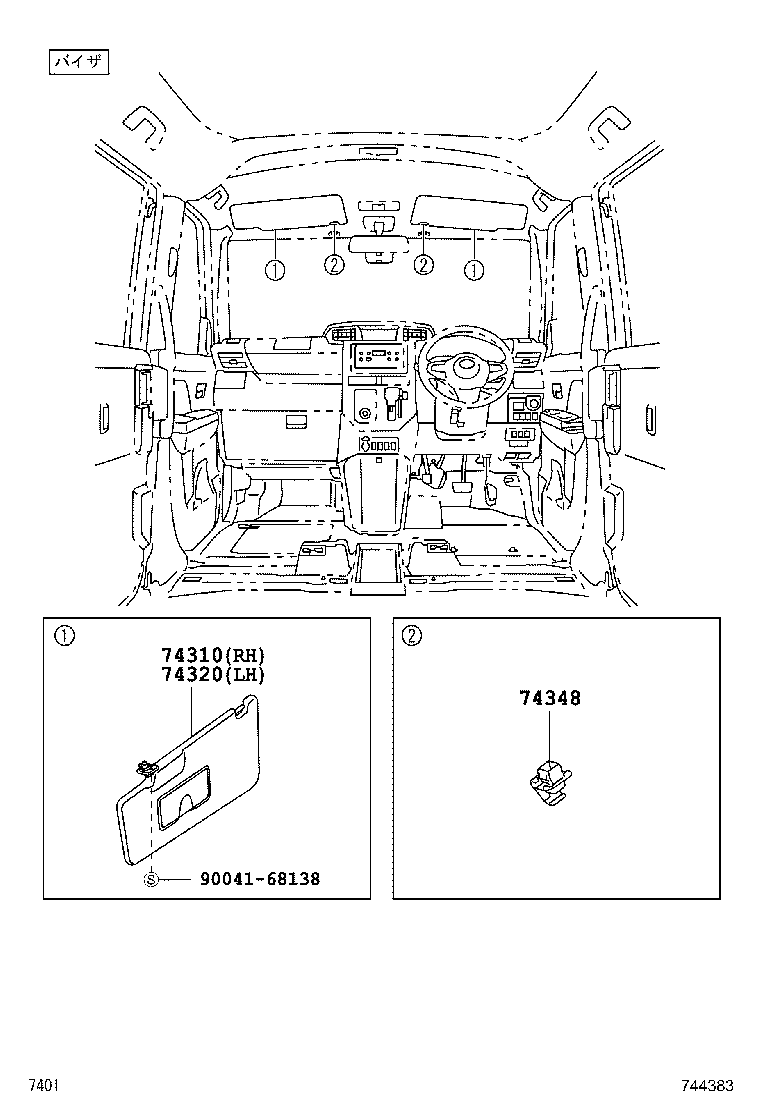

ILLUST NO. 1 OF 3(1611- )

Click highlighted areas on diagram

diagram 74310 74320 74348 9004168138
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-B1240B0

M900,910

LT.GRAY,TRIM1#

 1
74310-B1190B0

M900,910

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-B1220B0

M900,910

LT.GRAY,TRIM1#

 1
74348 - HOLDER, VISOR
74348-B2020B0

M900,910

LT.GRAY,TRIM1#

 2
Common parts
90041-68138

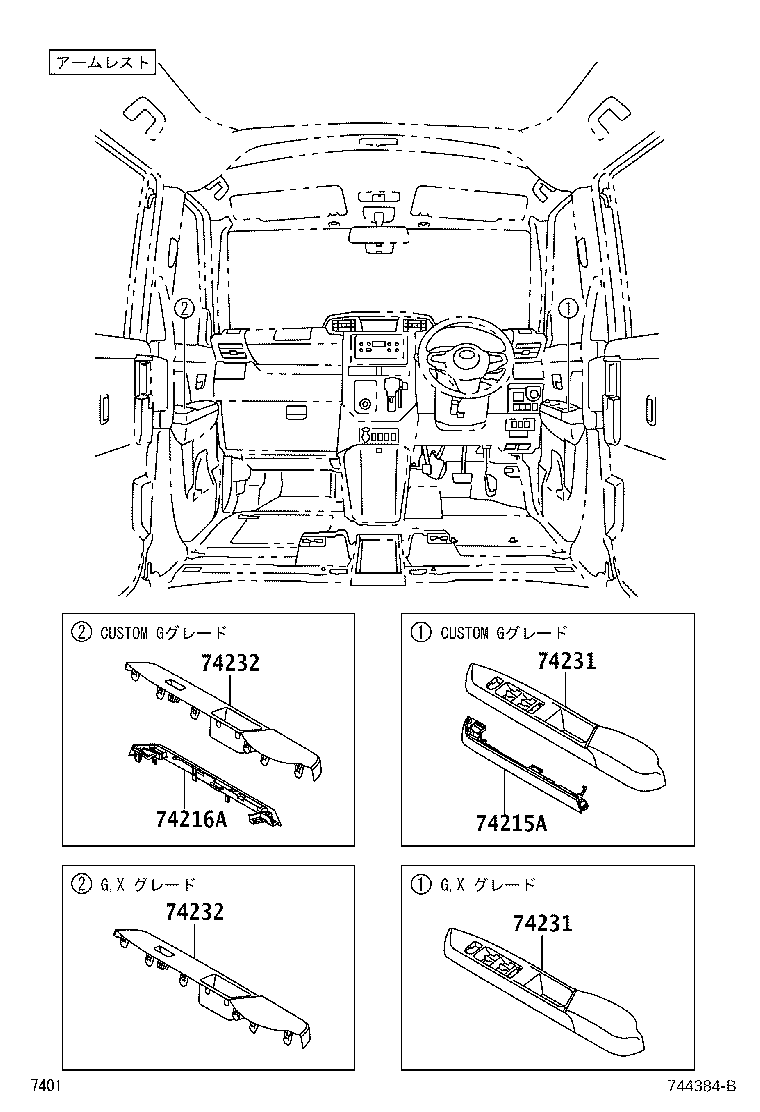

ILLUST NO. 2 OF 3(1611- )

Click highlighted areas on diagram

diagram 74215A 74216A 74231 74231 74232 74232
Part # Description Qty Price
74215A - BASE, DOOR ARMREST RH
74215-B1010B0

M900,910..G..NTBO

G”ﾘﾐﾃｯﾄﾞ”,SILVER,TRIM1#

 1
74216A - BASE, DOOR ARMREST, LH
74216-B1010B0

M900,910..G..NTBO

G”ﾘﾐﾃｯﾄﾞ”,SILVER,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B1160E0

M900,910..G,X

EBONY BROWN,TRIM1#

 1
74231-B1150C0

M900,910..G..NTBO

G”ﾘﾐﾃｯﾄﾞ”,BLACK,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-B1160E0

M900,910..G,X

EBONY BROWN,TRIM1#

 1
74231-B1150C0

M900,910..G..NTBO

G”ﾘﾐﾃｯﾄﾞ”,BLACK,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B1150C0

M900,910..G..NTBO

G”ﾘﾐﾃｯﾄﾞ”,BLACK,TRIM1#

 1
74232-B1160E0

M900,910..G,X

EBONY BROWN,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-B1150C0

M900,910..G..NTBO

G”ﾘﾐﾃｯﾄﾞ”,BLACK,TRIM1#

 1
74232-B1160E0

M900,910..G,X

EBONY BROWN,TRIM1#

 1

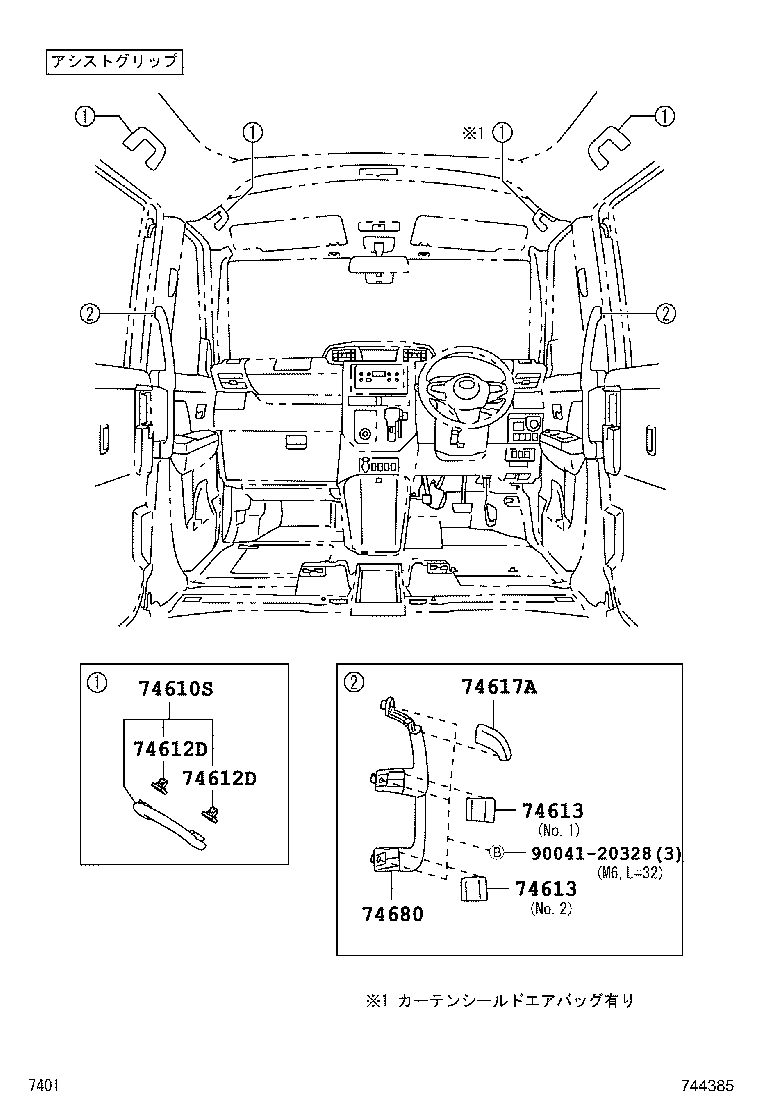

ILLUST NO. 3 OF 3(1611- )

Click highlighted areas on diagram

diagram 74610S 74612D 74612D 74613 74613 74617A 74680 9004120328
Part # Description Qty Price
74610S - GRIP ASSY, ASSIST
74610-B2030B0

M900,910

SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),LT.GRAY,TRIM1#

 4
74610-B2030B0

M900,910

LT.GRAY,TRIM1#

 3
74612D - COVER, ASSIST GRIP
74612-B2070B0

M900,910

LT.GRAY,TRIM1#

 6
74612-B2070B0

M900,910

SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),LT.GRAY,TRIM1#

 8
74612D - COVER, ASSIST GRIP
74612-B2070B0

M900,910

LT.GRAY,TRIM1#

 6
74612-B2070B0

M900,910

SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),LT.GRAY,TRIM1#

 8
74613 - PLUG, ASSIST GRIP
74617-B1050C0

M900,910

BLACK,TRIM1#,NO.1

 2
74617-B1060C0

M900,910

BLACK,TRIM1#,NO.2

 2
74613 - PLUG, ASSIST GRIP
74617-B1050C0

M900,910

BLACK,TRIM1#,NO.1

 2
74617-B1060C0

M900,910

BLACK,TRIM1#,NO.2

 2
74617A - PLUG, ASSIST GRIP
74617-B1040C0

M900,910

BLACK,TRIM1#

 2
74680 - GRIP ASSY, PILLAR ASSIST
74680-B1010C0

M900,910

BLACK,TRIM1#,右側

 1
74680-B1020C0

M900,910

BLACK,TRIM1#,左側

 1
Common parts
90041-20328
