M910A-AGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )M910

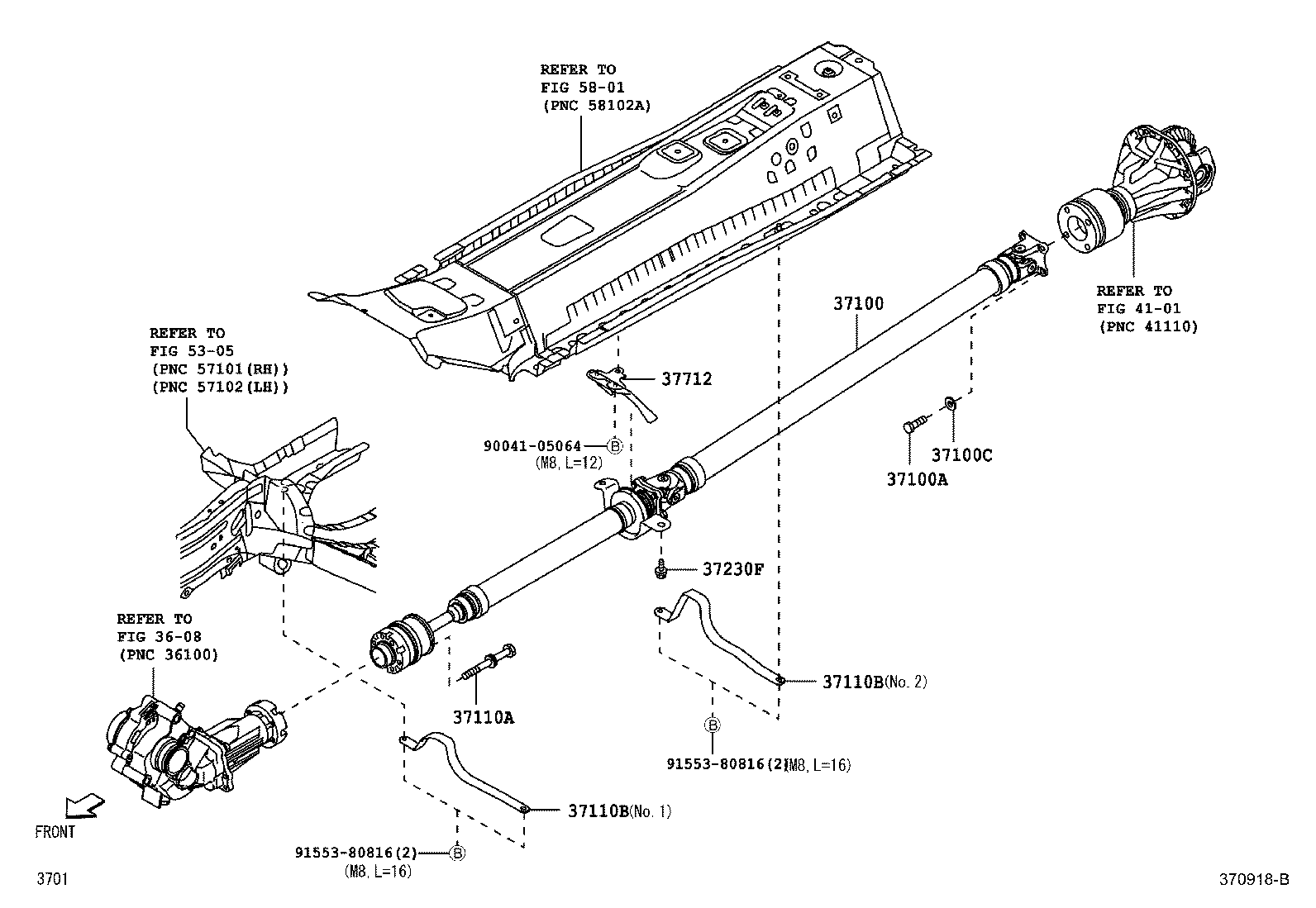

Click highlighted areas on diagram

diagram 3608 37100 37100A 37100C 37110A 37110B 37110B 37230F 37712 4101 5305 5801 9004105064 9155380816 9155380816
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-B1091

M910

 1
37100-B1090

M910

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90041-01681

M910

M10,L=30

 4
90041-B9060

M910

 4
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90042-06065

M910

 4
37110A - BOLT (FOR PROPELLER SHAFT)
90041-01684

M910

M8,L=102.7

 4
37110B - GUARD, PROPELLER SHAFT
51569-B1020

M910

NO.2

 1
51569-B1010

M910

NO.1

 1
37110B - GUARD, PROPELLER SHAFT
51569-B1020

M910

NO.2

 1
51569-B1010

M910

NO.1

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
91652-B1025

M910

*10−1.25PX25−25,M10,L=25

 2
91651-61020

M910

*10−1.25PX20−20,M10,L=20

 2
37712 - COVER, PROPELLER SHAFT DUST, NO.1
37710-B1010

M910

 1
Common parts
90041-05064
91553-80816
Linked diagrams
3608
4101
5305
5801
