M910A-AGBGE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )1KRFE

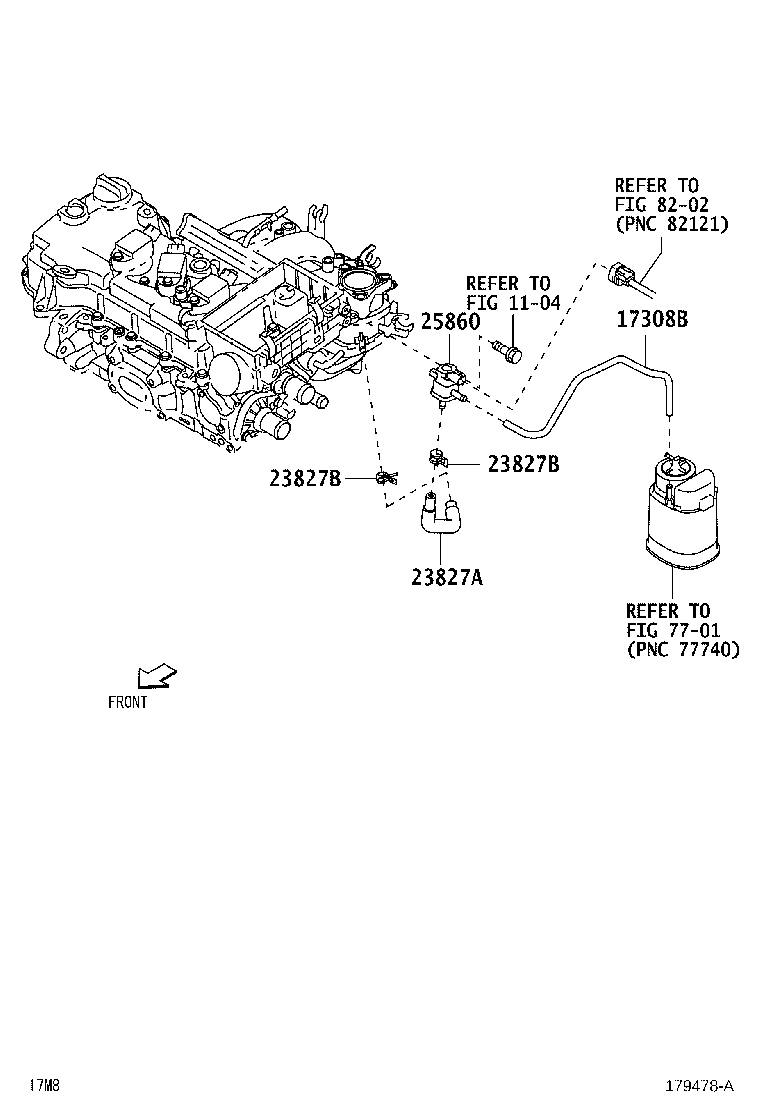

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 77754-B1150 |
1KRFE..M900,910 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-B1040 |
1KRFE..M900,910 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96133-41301 |
1KRFE..M900,910 |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96133-41301 |
1KRFE..M900,910 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-B1050 |
1KR#..M900,910 |
1 | ||
| 90910-12280 |
1KR#..M900,910 |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 7701 | ||||
| 8202 | ||||
