M900A-GBVJ (2020)

Toyota Tank/Roomy

Production Sep 2020 - Sep 9999
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2009- )

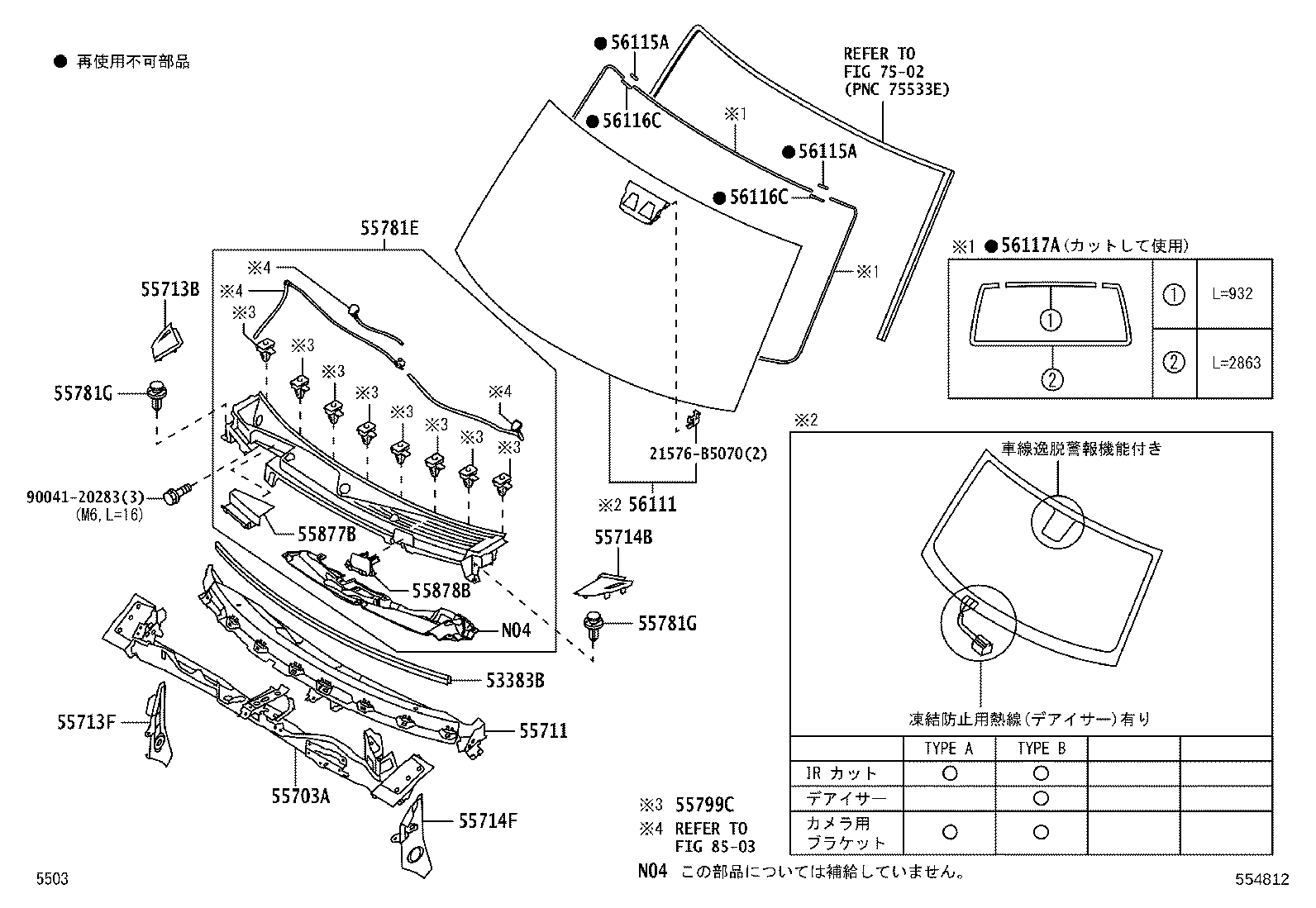

Click highlighted areas on diagram

diagram 21576B5070 53383B 55703A 55711 55713B 55713F 55714B 55714F 55781E 55781G 55781G 55799C 55877B 55878B 56111 56115A 56115A 56116C 56116C 56117A 7502 8503 9004120283
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-B1060

M900,910

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-B1180

M900,910

 1
55711 - PANEL, COWL TOP, OUTER
55701-B1070

M900,910

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
53445-B1020

M900,910

 1
55713F - REINFORCEMENT, COWL TOP SIDE, RH
55723-B1030

M900,910

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
53446-B1020

M900,910

 1
55714F - REINFORCEMENT, COWL TOP SIDE, LH
55724-B1030

M900,910

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-B1080

M900,910

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67496

M900,910

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-67496

M900,910

 2
55799C - CLIP, COWL TOP VENTILATOR LOUVER
67771-B2100

M900,910

 8
55877B - COVER, COWL VENT, RH
55877-B1010

M900,910

 1
55878B - COVER, COWL VENT, LH
55878-B1020

M900,910

 1
56111 - GLASS, WINDSHIELD
56101-B1440

M900,910..G

ﾌﾟﾚﾐｱﾑﾊﾟｯｹｰｼﾞ,ﾀｲﾌﾟ A

 1
56101-B1450

M900,910..G

ﾌﾟﾚﾐｱﾑﾊﾟｯｹｰｼﾞ&寒冷地仕様,ﾀｲﾌﾟ B

 1
56101-B1420

M900,910

ﾀｲﾌﾟ A

 1
56101-B1430

M900,910

寒冷地仕様,ﾀｲﾌﾟ B

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

M900,910

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

M900,910

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

M900,910

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

M900,910

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-B1060

M900,910

長さ=3795

 1
Common parts
21576-B5070
90041-20283
Linked diagrams
7502
8503
