M900A-GBVE (2020)
Toyota Tank/Roomy
(2009- )M900..G,X
2WD

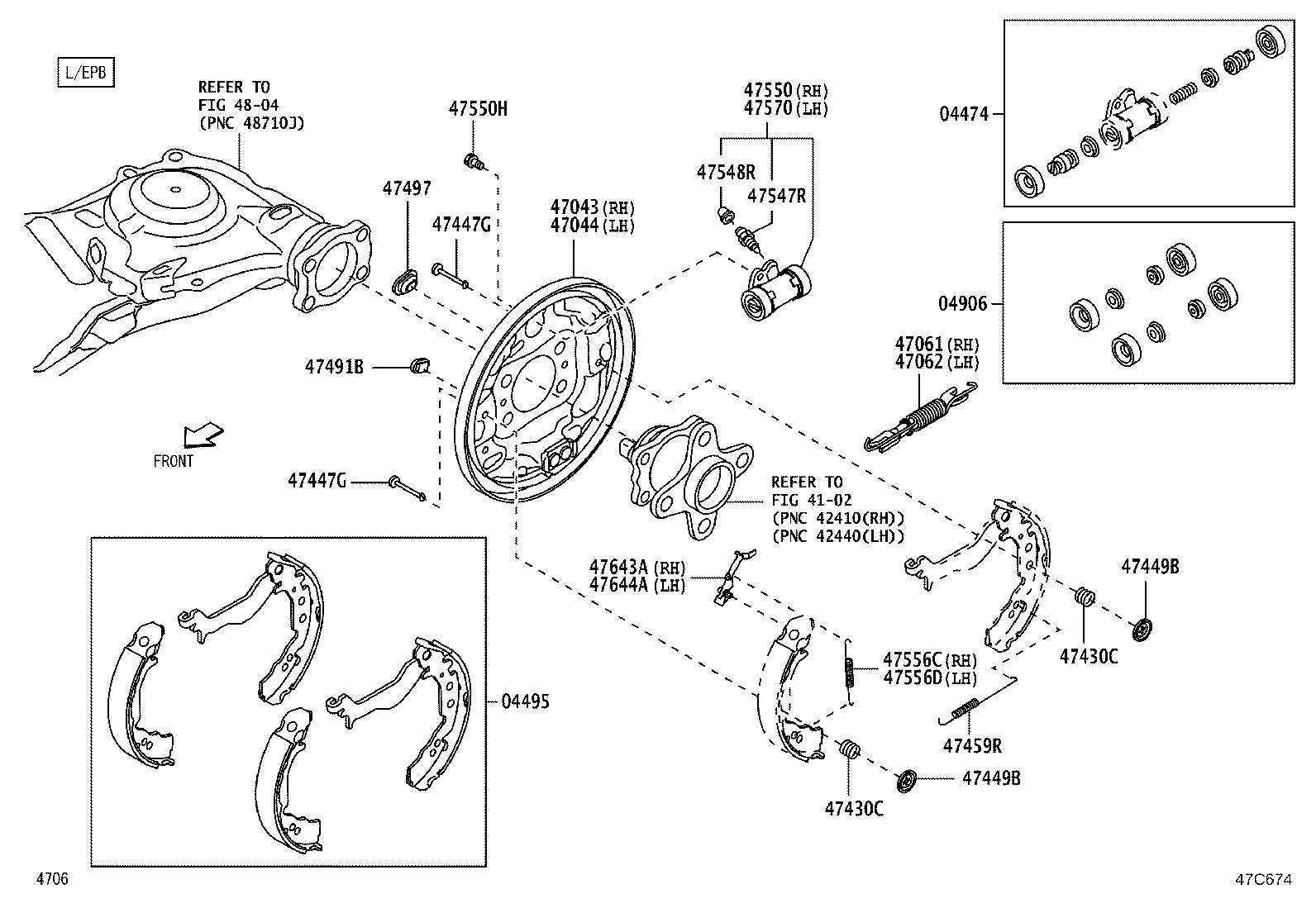

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B1060 |
M900;M910..G,X |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B2480 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 04495-B2430 |
M900,910..G,X |
1 | ||
| 04495-B2480 |
M900..CTMG |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-B1100 |
M900;M910..G,X |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-B1100 |
M900..CTMG ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47043-B2090 |
M900..G,X |
1 | ||
| 47043-B1100 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ,ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-B1100 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ,ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47044-B1100 |
M900..CTMG ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47044-B2090 |
M900..G,X |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47061-B2041 |
M900..G,X |
1 | ||
| 47061-B2070 |
M900..CTMG |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-B2041 |
M900..G,X |
1 | ||
| 47062-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47062-B2070 |
M900..CTMG |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01816 |
M900,910..CTMG |
4 | ||
| 90045-01848 |
M900,910..G,X |
4 | ||
| 90045-01816 |
M900,910..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01816 |
M900,910..CTMG |
4 | ||
| 90045-01848 |
M900,910..G,X |
4 | ||
| 90045-01816 |
M900,910..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-B2040 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47447-87204 |
M900..G,X |
4 | ||
| 47447-B2040 |
M900..CTMG |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-B2040 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47447-87204 |
M900..G,X |
4 | ||
| 47447-B2040 |
M900..CTMG |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
M900,910 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
M900,910 |
4 | ||
| 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) | ||||
| 47459-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
2 | ||
| 47459-B2020 |
M900..G,X |
2 | ||
| 47459-B2070 |
M900..CTMG |
2 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-B1010 |
M900,910 |
2 | ||
| 47497 - PLUG, HOLE NO.2(FOR REAR BRAKE) | ||||
| 47491-B2030 |
M900;M910..G,X |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87204 |
M900,910 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
M900,910 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47570-B1020 |
M900..CTMG |
1 | ||
| 47550-B1030 |
M900..G,X |
1 | ||
| 47570-B1020 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90041-19848 |
M900,910 |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-B2040 |
M900..G,X |
1 | ||
| 47555-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47555-B2070 |
M900..CTMG |
1 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47556-B2040 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47556-B2040 |
M900..CTMG |
1 | ||
| 47556-B2020 |
M900..G,X |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-B1020 |
M900..G,X |
1 | ||
| 47550-B1030 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47550-B1030 |
M900..CTMG |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-B2020 |
M900..G,X |
1 | ||
| 47643-B2041 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47643-B2041 |
M900..CTMG |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-B2041 |
M900..CTMG |
1 | ||
| 47644-B2020 |
M900..G,X |
1 | ||
| 47644-B2041 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| Linked diagrams | ||||
| 4102 | ||||
| 4804 | ||||
(2009- )M900..CTMG,G
2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-B1060 |
M900;M910..G,X |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-B2480 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 04495-B2430 |
M900,910..G,X |
1 | ||
| 04495-B2480 |
M900..CTMG |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-B1100 |
M900;M910..G,X |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-B1100 |
M900..CTMG ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47043-B2090 |
M900..G,X |
1 | ||
| 47043-B1100 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ,ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-B1100 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ,ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47044-B1100 |
M900..CTMG ｱｸﾁｭｴｰﾀ(ﾓｰﾀ)付き |
1 | ||
| 47044-B2090 |
M900..G,X |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47061-B2041 |
M900..G,X |
1 | ||
| 47061-B2070 |
M900..CTMG |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-B2041 |
M900..G,X |
1 | ||
| 47062-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47062-B2070 |
M900..CTMG |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01816 |
M900,910..CTMG |
4 | ||
| 90045-01848 |
M900,910..G,X |
4 | ||
| 90045-01816 |
M900,910..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90045-01816 |
M900,910..CTMG |
4 | ||
| 90045-01848 |
M900,910..G,X |
4 | ||
| 90045-01816 |
M900,910..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-B2040 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47447-87204 |
M900..G,X |
4 | ||
| 47447-B2040 |
M900..CTMG |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-B2040 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
4 | ||
| 47447-87204 |
M900..G,X |
4 | ||
| 47447-B2040 |
M900..CTMG |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
M900,910 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-97201 |
M900,910 |
4 | ||
| 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) | ||||
| 47459-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
2 | ||
| 47459-B2020 |
M900..G,X |
2 | ||
| 47459-B2070 |
M900..CTMG |
2 | ||
| 47491B - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-B1010 |
M900,910 |
2 | ||
| 47497 - PLUG, HOLE NO.2(FOR REAR BRAKE) | ||||
| 47491-B2030 |
M900;M910..G,X |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-87204 |
M900,910 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 47548-87501 |
M900,910 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47570-B1020 |
M900..CTMG |
1 | ||
| 47550-B1030 |
M900..G,X |
1 | ||
| 47570-B1020 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90041-19848 |
M900,910 |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-B2040 |
M900..G,X |
1 | ||
| 47555-B2070 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47555-B2070 |
M900..CTMG |
1 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47556-B2040 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47556-B2040 |
M900..CTMG |
1 | ||
| 47556-B2020 |
M900..G,X |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-B1020 |
M900..G,X |
1 | ||
| 47550-B1030 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47550-B1030 |
M900..CTMG |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-B2020 |
M900..G,X |
1 | ||
| 47643-B2041 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| 47643-B2041 |
M900..CTMG |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-B2041 |
M900..CTMG |
1 | ||
| 47644-B2020 |
M900..G,X |
1 | ||
| 47644-B2041 |
M900..G ﾊﾟｰｷﾝｸﾞ ﾌﾞﾚｰｷ−電動ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ |
1 | ||
| Common parts | ||||
| 46295-B2010 | ||||
| 46296-B2010 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 4804 | ||||
