M900A-GBGJ (2020)
Toyota Tank/Roomy
Production
Sep 2020
-
Sep 9999
Engine
1KRVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2009- )G,X

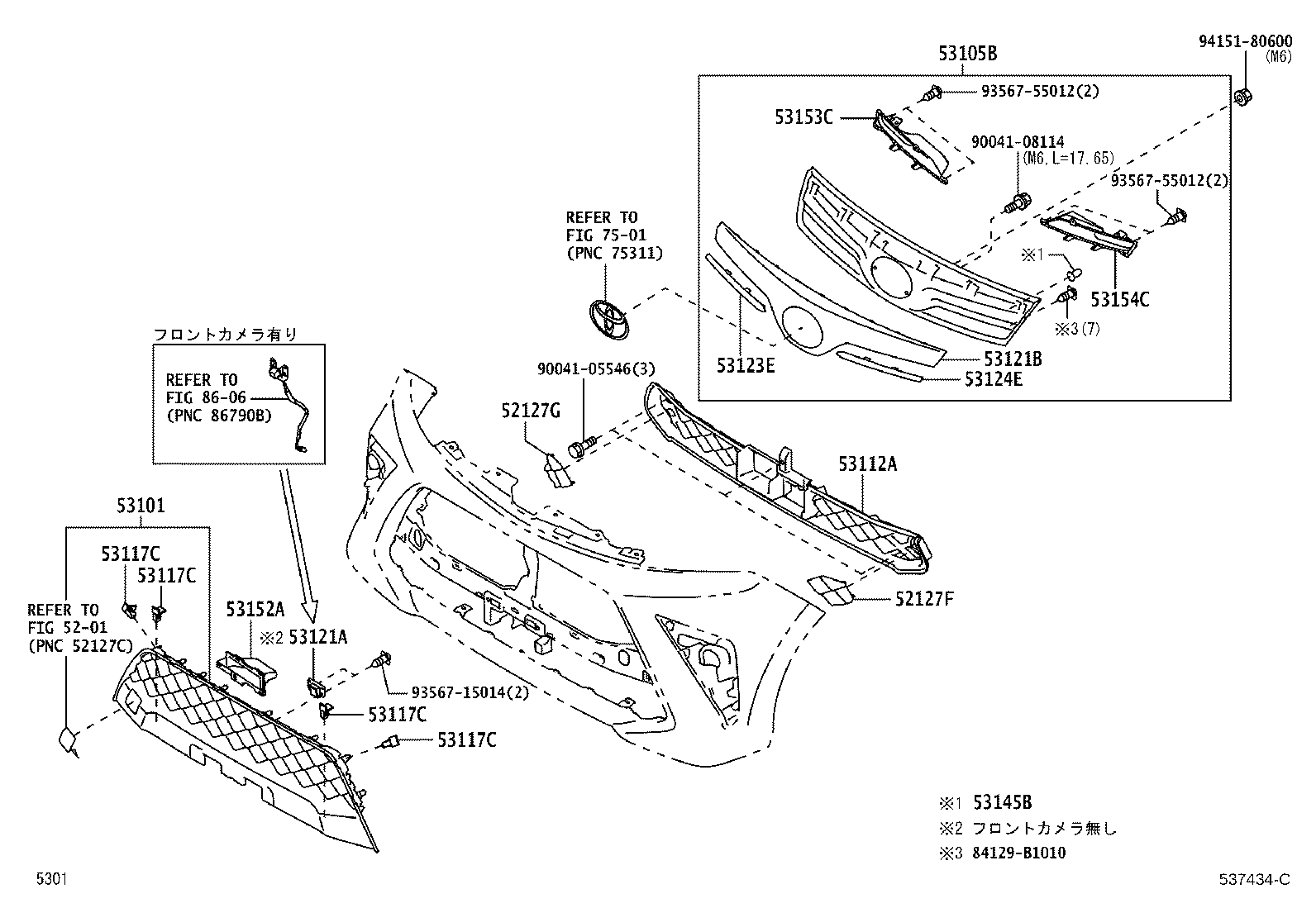

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52127F - COVER, FRONT BUMPER HOLE | ||||
| 52128-B1130 |
M900,910..G,X |
1 | ||
| 52127G - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-B1400 |
M900,910..G,X |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53101-B1160 |
M900,910..G,X 材料着色 黒色 |
1 | ||
| 53105B - GARNISH SUB-ASSY, RADIATOR GRILLE | ||||
| 53105-B1100 |
M900,910..G,X |
1 | ||
| 53112A - GRILLE, RADIATOR, LOWER | ||||
| 53112-B1210 |
M900,910..G,X |
1 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-87401 |
M900,910..G,X |
4 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-87401 |
M900,910..G,X |
4 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-87401 |
M900,910..G,X |
4 | ||
| 53117C - RETAINER, RADIATOR GRILLE, NO.1 | ||||
| 76854-87401 |
M900,910..G,X |
4 | ||
| 53121A - MOULDING, RADIATOR GRILLE | ||||
| 00000-00000 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏ+DAﾊﾟｯｹｰｼﾞ+ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞｰ用ﾊｰﾈｽ,該当品番なし |
1 | ||
| 00000-00000 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ+ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞ用ﾊｰﾈｽ,Y当品番なし |
1 | ||
| 53121-B1150 |
M900,910..G ﾊﾟﾉﾗﾏ+DAﾊﾟｯｹｰｼﾞ+ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞｰ用ﾊｰﾈｽ |
1 | ||
| 53121-B1150 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀ対応純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ+ﾄﾞﾗｲﾌﾞﾚｺｰﾀﾞ用ﾊｰﾈｽ |
1 | ||
| 53121-B1150 |
M900,910..G,X |
1 | ||
| 53121B - MOULDING, RADIATOR GRILLE, UPPER | ||||
| 53121-B1180 |
M900,910..G,X |
1 | ||
| 53123E - MOULDING, RADIATOR GRILLE, LOWER RH | ||||
| 53123-B1030 |
M900,910..G,X |
1 | ||
| 53124E - MOULDING, RADIATOR GRILLE, LOWER LH | ||||
| 53124-B1040 |
M900,910..G,X |
1 | ||
| 53145B - CLIP, RADIATOR GRILLE GARNISH | ||||
| 53145-B2010 |
M900,910 |
13 | ||
| 53152A - GUIDE, RADIATOR GRILLE AIR | ||||
| 53152-B1050 |
M900,910 |
1 | ||
| 53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-B1010 |
M900,910..G,X |
1 | ||
| 53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-B1010 |
M900,910..G,X |
1 | ||
| Common parts | ||||
| 84129-B1010 | ||||
| 90041-05546 | ||||
| 90041-08114 | ||||
| 93567-15014 | ||||
| 93567-55012 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 7501 | ||||
| 8606 | ||||
