M900A-GBGJ (2020)
Toyota Tank/Roomy

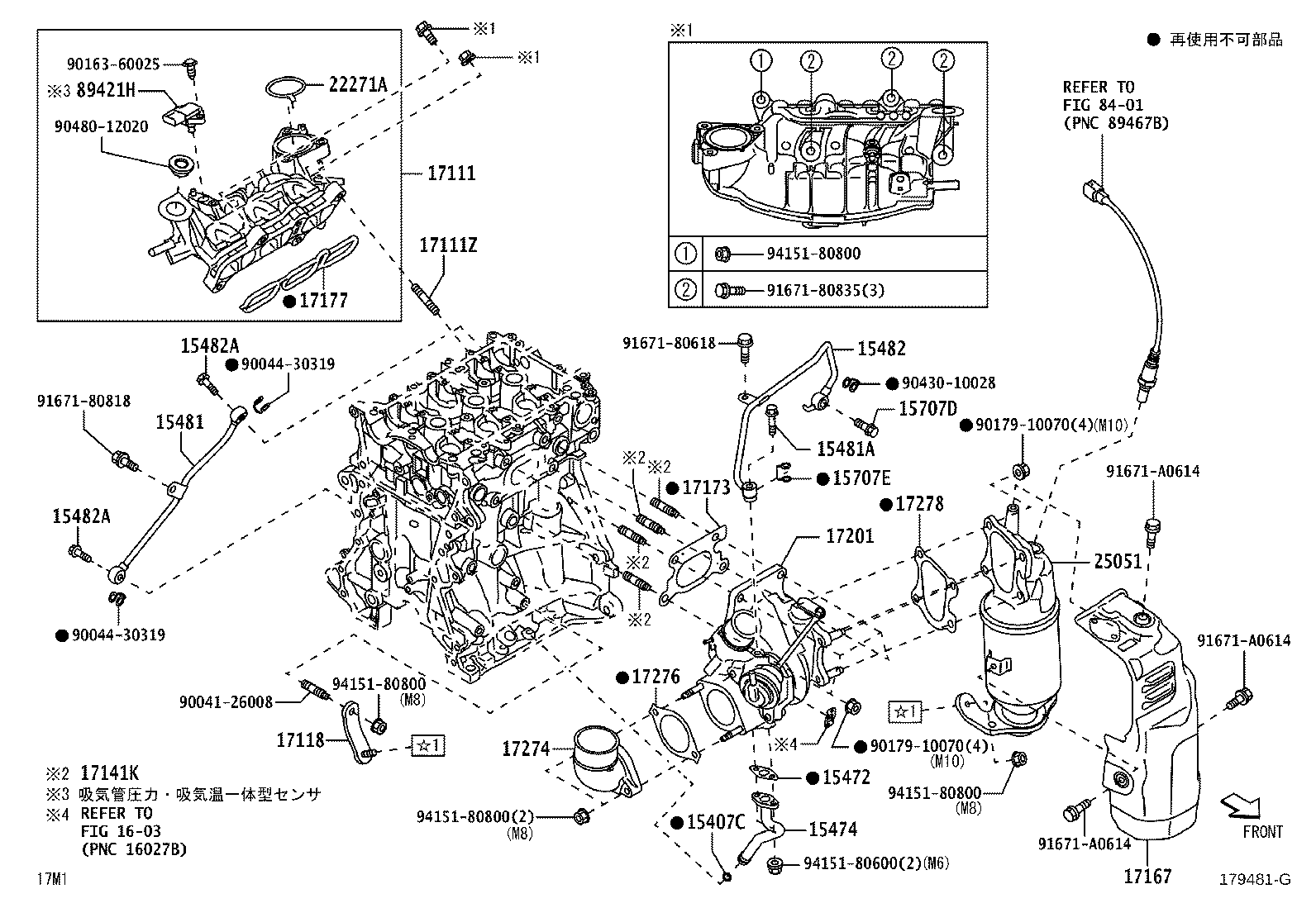

(1611-2102)1KRVET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407C - RING, O(FOR TURBO OIL PIPE) | ||||
| 90043-01346 |
1KRVET..M900 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-B2010 |
1KRVET..M900 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-B1010 |
1KRVET..M900 |
1 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-B1010 |
1KRVET..M900 |
1 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90044-01474 |
1KRVET..M900 |
1 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-B1010 |
1KRVET..M900 |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90044-01480 |
1KRVET..M900 |
2 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90044-01480 |
1KRVET..M900 |
2 | ||
| 15707D - BOLT, UNION(FOR OIL PIPE) | ||||
| 90044-01473 |
1KRVET..M900 |
1 | ||
| 15707E - GASKET(FOR OIL PIPE) | ||||
| 90044-30316 |
1KRVET..M900 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-B1110 |
1KRVET..M900 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80828 |
1KR#..M900,910 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-B1070 |
1KRVET..M900 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10175 |
1KRVET..M900 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-B1080 |
1KRVET..M900 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-B1020 |
1KRVET..M900 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-B1030 |
1KR#..M900,910 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-B1010 |
1KRVET..M900 |
1 | ||
| 17201-B1011 |
1KRVET..M900 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-B1010 |
1KRVET..M900 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-B1010 |
1KRVET..M900 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-B1011 |
1KRVET..M900 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40030 |
1KR#..M900,910 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-B1210 |
1KRVET..M900 |
1 | ||
| 89421H - SENSOR, VACUUM | ||||
| 89421-B1020 |
M900..TBO |
1 | ||
| Common parts | ||||
| 90041-26008 | ||||
| 90044-30319 | ||||
| 90163-60025 | ||||
| 90179-10070 | ||||
| 90430-10028 | ||||
| 90480-12020 | ||||
| 91671-80618 | ||||
| 91671-80818 | ||||
| 91671-80835 | ||||
| 91671-A0614 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||

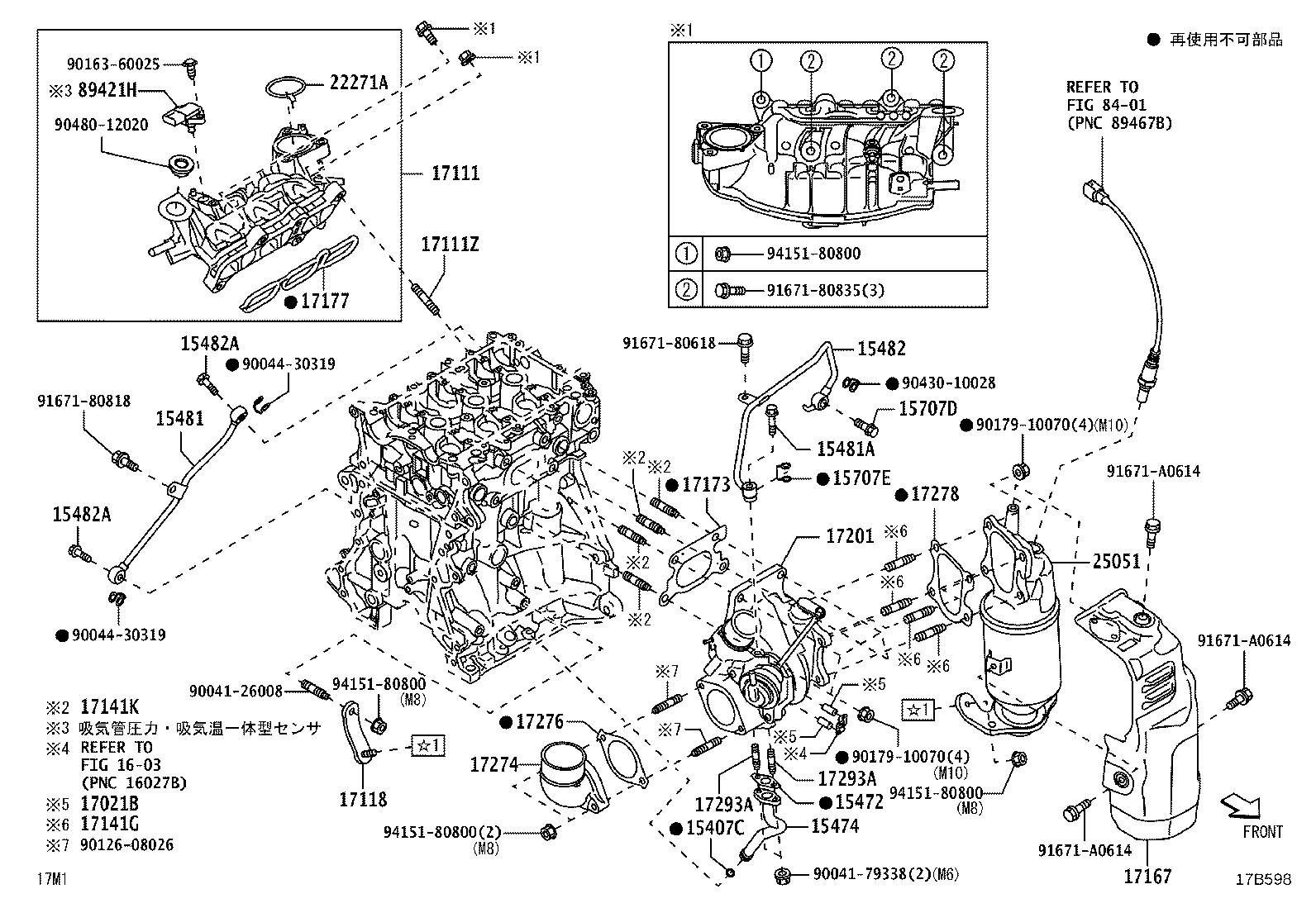

(2103- )1KRVET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407C - RING, O(FOR TURBO OIL PIPE) | ||||
| 90043-01346 |
1KRVET..M900 |
1 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-B2010 |
1KRVET..M900 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-B1010 |
1KRVET..M900 |
1 | ||
| 15481 - PIPE, TURBO OIL, NO.1 | ||||
| 15481-B1010 |
1KRVET..M900 |
1 | ||
| 15481A - BOLT, UNION, NO.1 | ||||
| 90044-01474 |
1KRVET..M900 |
1 | ||
| 15482 - PIPE, TURBO OIL, NO.2 | ||||
| 15482-B1010 |
1KRVET..M900 |
1 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90044-01480 |
1KRVET..M900 |
2 | ||
| 15482A - BOLT, UNION, NO.2 | ||||
| 90044-01480 |
1KRVET..M900 |
2 | ||
| 15707D - BOLT, UNION(FOR OIL PIPE) | ||||
| 90044-01473 |
1KRVET..M900 |
1 | ||
| 15707E - GASKET(FOR OIL PIPE) | ||||
| 90044-30316 |
1KRVET..M900 |
1 | ||
| 17021B - BOLT, STUD | ||||
| 92122-80614 |
1KRVET..M900 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-B1110 |
1KRVET..M900 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80828 |
1KR#..M900,910 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-B1070 |
1KRVET..M900 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90126-10044 |
1KRVET..M900 |
4 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10175 |
1KRVET..M900 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-B1080 |
1KRVET..M900 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-B1020 |
1KRVET..M900 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-B1030 |
1KR#..M900,910 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-B1010 |
1KRVET..M900 |
1 | ||
| 17201-B1011 |
1KRVET..M900 |
1 | ||
| 17274 - ELBOW, COMPRESSOR INLET | ||||
| 17274-B1010 |
1KRVET..M900 |
1 | ||
| 17276 - GASKET, COMPRESSOR INLET | ||||
| 17276-B1010 |
1KRVET..M900 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-B1011 |
1KRVET..M900 |
1 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90126-06029 |
1KRVET..M900 |
2 | ||
| 17293A - BOLT, STUD(FOR TURBOCHARGER STAY) | ||||
| 90126-06029 |
1KRVET..M900 |
2 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40030 |
1KR#..M900,910 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-B1210 |
1KRVET..M900 |
1 | ||
| 89421H - SENSOR, VACUUM | ||||
| 89421-B1020 |
M900..TBO |
1 | ||
| Common parts | ||||
| 90041-26008 | ||||
| 90041-79338 | ||||
| 90044-30319 | ||||
| 90126-08026 | ||||
| 90163-60025 | ||||
| 90179-10070 | ||||
| 90430-10028 | ||||
| 90480-12020 | ||||
| 91671-80618 | ||||
| 91671-80818 | ||||
| 91671-80835 | ||||
| 91671-A0614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
