M900A-BGBVJ (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )TBO

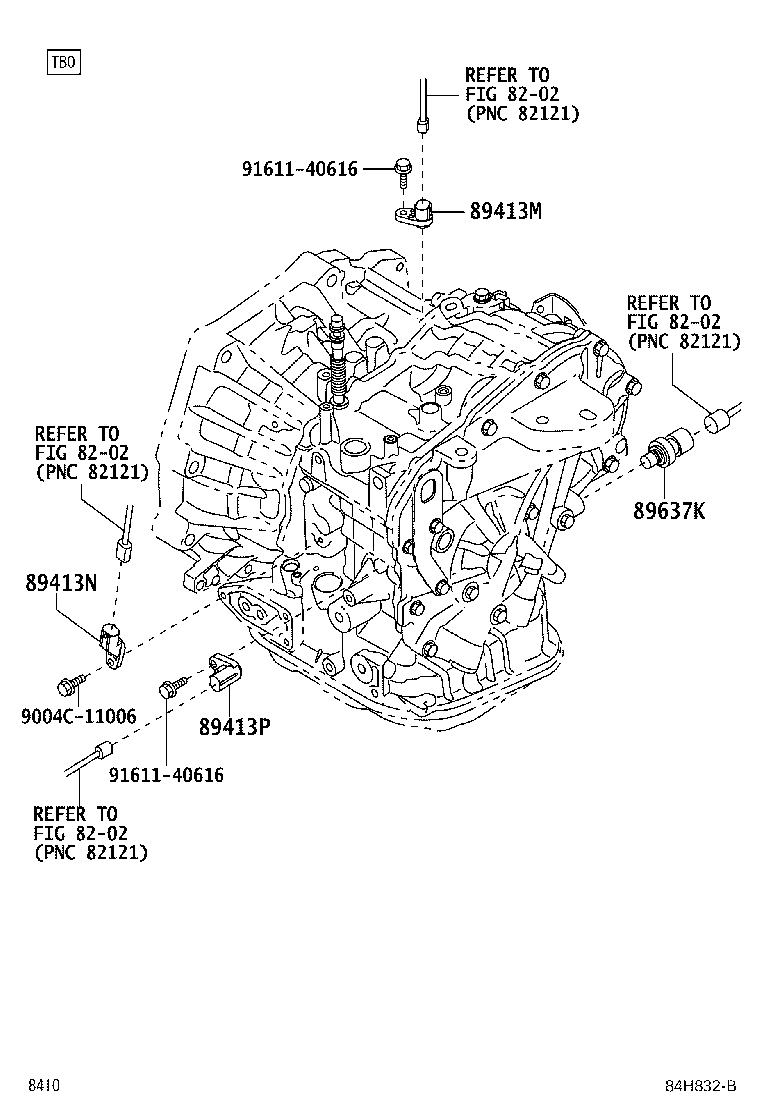

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT) | ||||
| 89413-B1020 |
M900..TBO ｾｶﾝﾀﾞﾘ ﾌﾟｰﾘ回転ｾﾝｻ |
1 | ||
| 89413N - SENSOR, TRANSMISSION REVOLUTION, (NT) | ||||
| 89413-B1010 |
M900..TBO ﾀｰﾋﾞﾝ 回転ｾﾝｻ |
1 | ||
| 89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN) | ||||
| 89413-B1030 |
M900..TBO ﾌﾟﾗｲﾏﾘ ﾌﾟｰﾘ回転ｾﾝｻ |
1 | ||
| 89637K - SENSOR, OIL PRESSURE | ||||
| 89637-B1010 |
M900..TBO |
1 | ||
| Common parts | ||||
| 9004C-11006 | ||||
| 91611-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
