M900A-BGBVJ (2016)
Toyota Tank/Roomy

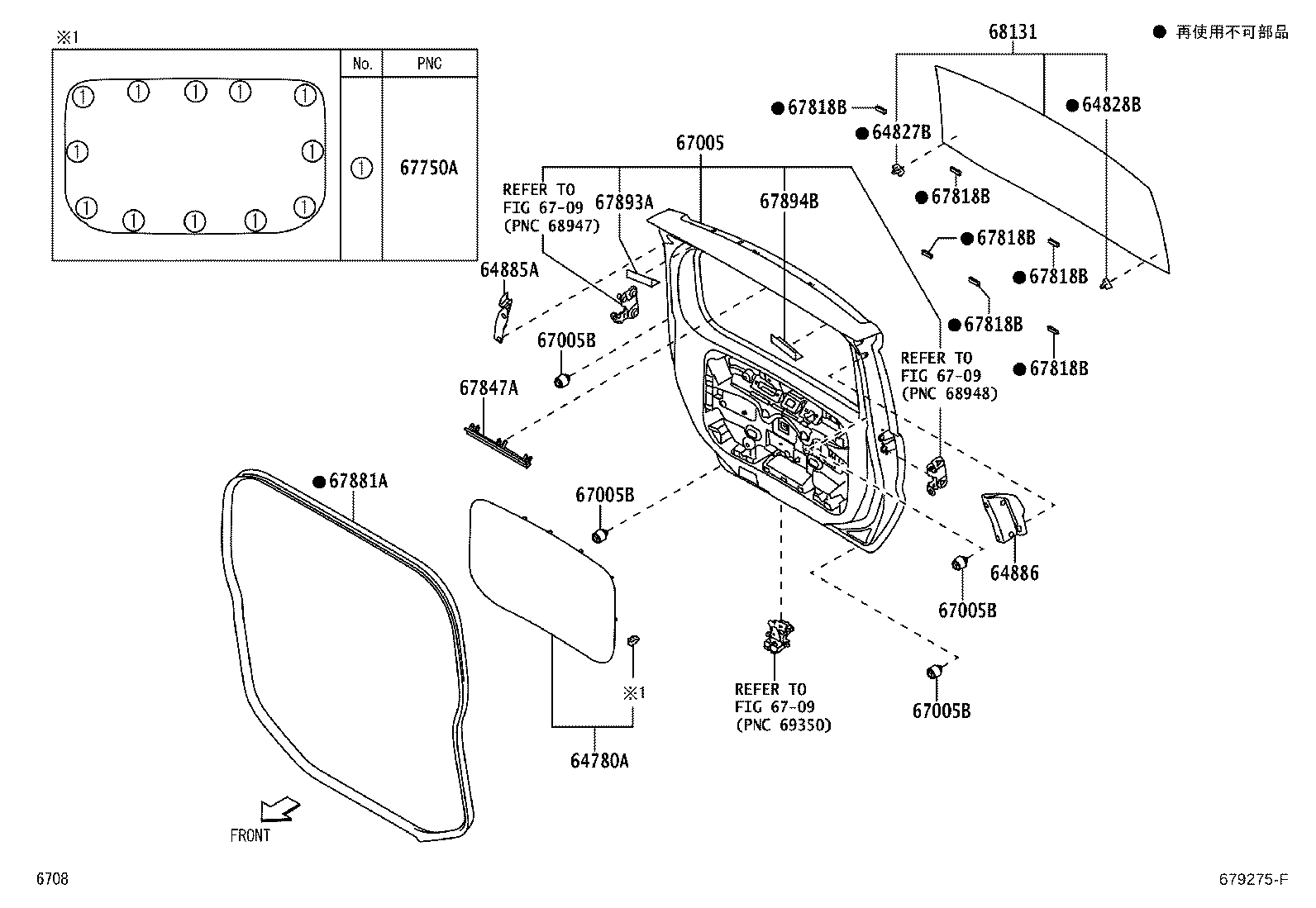

ILLUST NO. 1 OF 3(1611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-B1060B0 |
M900,910 LT.GRAY,TRIM1# |
1 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-B2040 |
M900,910 |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64827-B2040 |
M900,910 |
1 | ||
| 64885A - CHANNEL, BACK WINDOW GLASS, RH | ||||
| 64885-B1020 |
M900,910 |
1 | ||
| 64886 - CHANNEL, BACK WINDOW GLASS, LH | ||||
| 64886-B1020 |
M900,910 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-B1580B0 |
M900,910..G,X LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1520B0 |
M900,910..G,X LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1590B0 |
M900,910..CTMG LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1530B0 |
M900,910..CTMG LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90045-41273 |
M900,910 |
4 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90045-41273 |
M900,910 |
4 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90045-41273 |
M900,910 |
4 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90045-41273 |
M900,910 |
4 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-05172 |
M900,910 |
12 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-B2010 |
M900,910 |
6 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-B2010 |
M900,910 |
6 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-B2010 |
M900,910 |
6 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-B2010 |
M900,910 |
6 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-B2010 |
M900,910 |
6 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-B2010 |
M900,910 |
6 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-B1020 |
M900,910 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-B1060 |
M900,910 |
1 | ||
| 67893A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 76835-B1020B0 |
M900,910 LT.GRAY,TRIM1# |
1 | ||
| 67894B - PROTECTOR, BACK DOOR PANEL, NO.2 | ||||
| 76836-B1020B0 |
M900,910 LT.GRAY,TRIM1# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-B1110 |
M900,910 |
1 | ||
| 68105-B1111 |
M900,910 |
1 | ||
| 68105-B1112 |
M900,910 |
1 | ||
| Linked diagrams | ||||
| 6709 | ||||
ILLUST NO. 3 OF 3(1611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-B1580B0 |
M900,910..G,X LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1520B0 |
M900,910..G,X LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1590B0 |
M900,910..CTMG LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1530B0 |
M900,910..CTMG LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 53145-B1010 |
M900,910..CTMG |
4 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 53145-B2030 |
M900,910..CTMG |
9 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-87502 |
M900,910 |
2 | ||
| 76811A - GARNISH, BACK DOOR, OUTSIDE | ||||
| 76801-B1050 |
M900,910..CTMG |
1 | ||
| Common parts | ||||
| 76826-B1020 | ||||
| 76827-B1020 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7501 | ||||

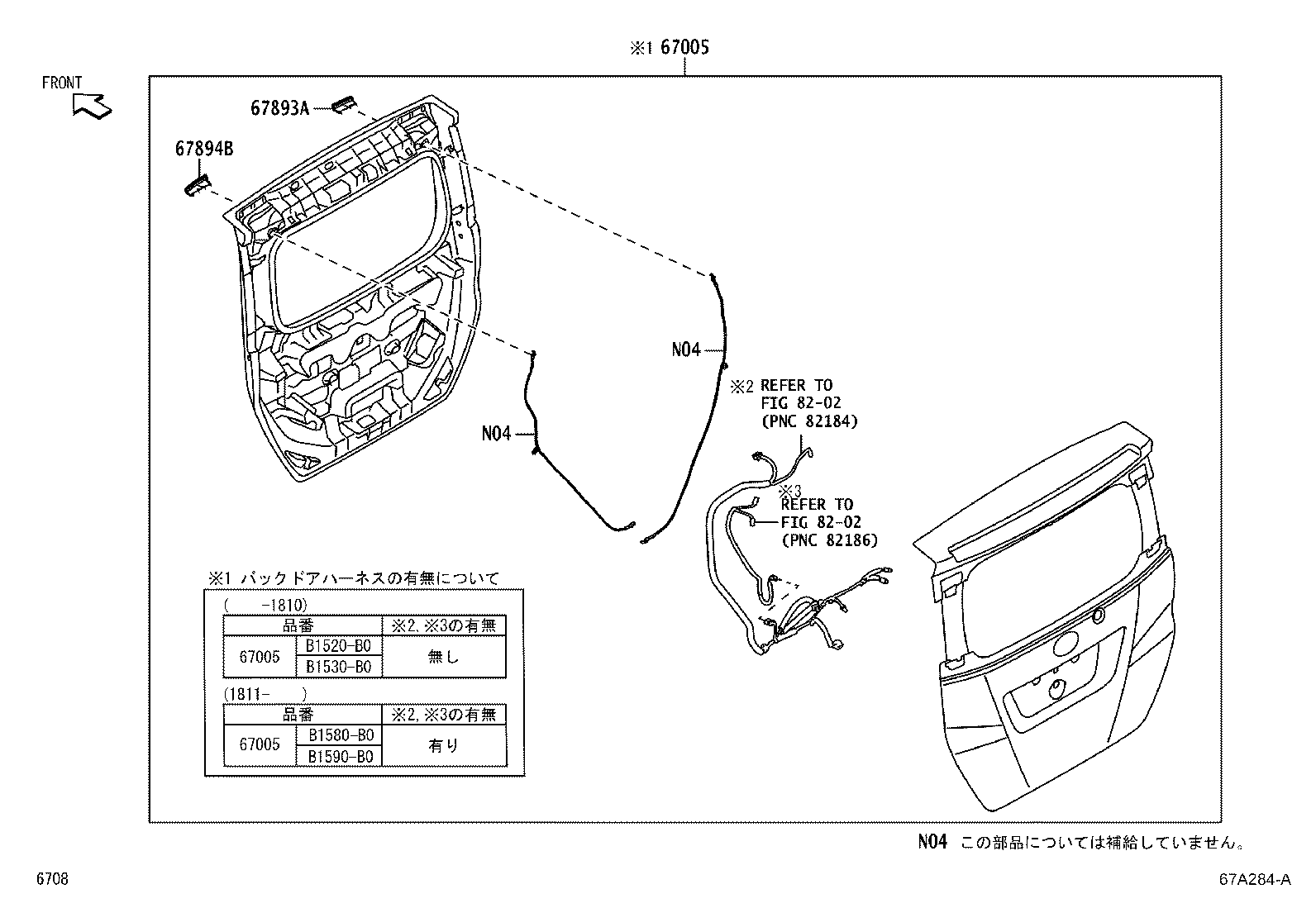

ILLUST NO. 2 OF 3(1611- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-B1580B0 |
M900,910..G,X LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1520B0 |
M900,910..G,X LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1590B0 |
M900,910..CTMG LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67005-B1530B0 |
M900,910..CTMG LT.GRAY,TRIM1#,樹脂製 下塗り塗装のみ |
1 | ||
| 67893A - PROTECTOR, BACK DOOR PANEL, NO.1 | ||||
| 76835-B1020B0 |
M900,910 LT.GRAY,TRIM1# |
1 | ||
| 67894B - PROTECTOR, BACK DOOR PANEL, NO.2 | ||||
| 76836-B1020B0 |
M900,910 LT.GRAY,TRIM1# |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
