M900A-BGBVJ (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

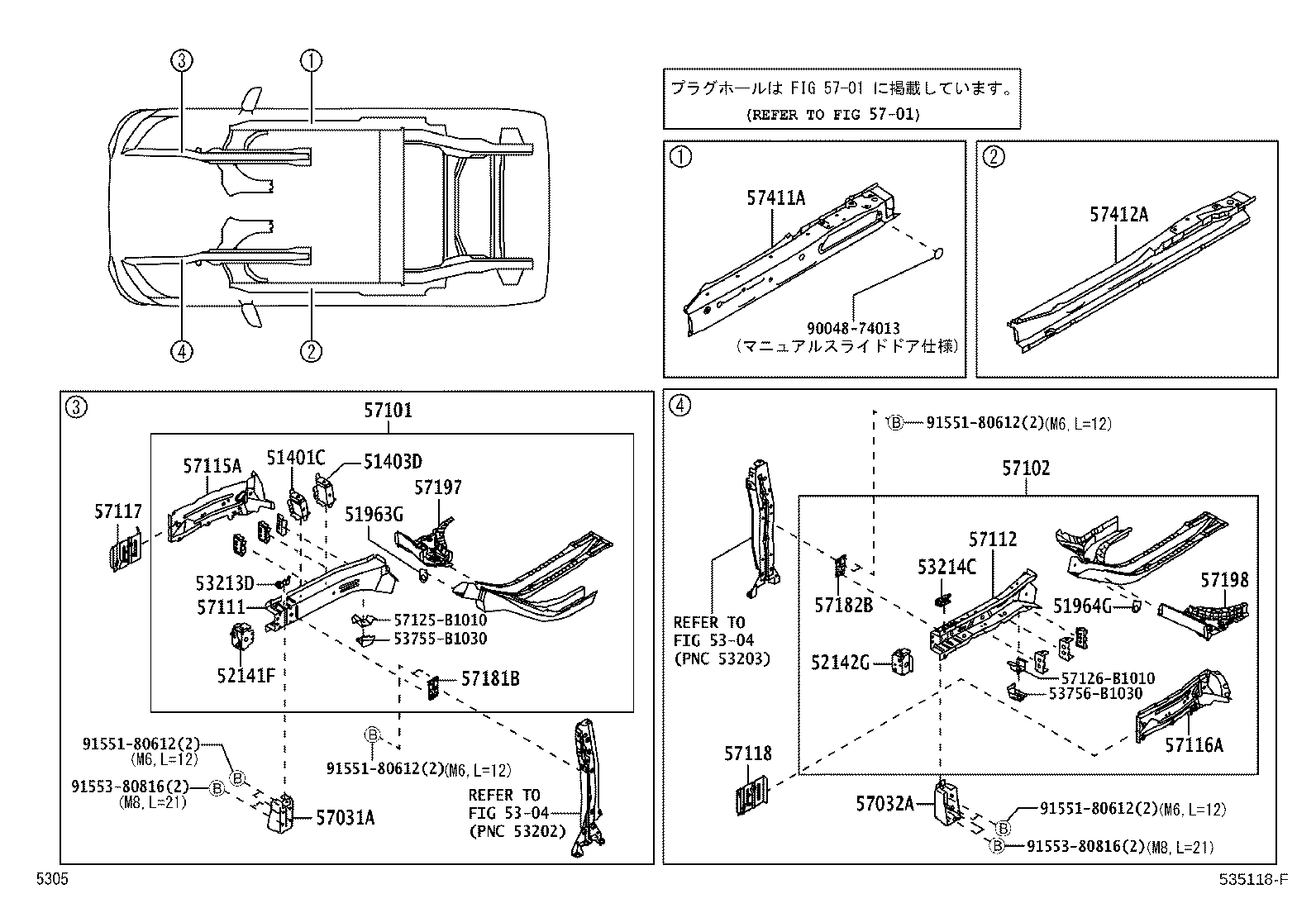

ILLUST NO. 1 OF 2(1611- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51401C - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-B1010 |
M900,910 |
1 | ||
| 51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 51403-B1010 |
M900,910 |
1 | ||
| 51963G - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-B1010 |
M900,910 |
1 | ||
| 51964G - HOOK, TRANSPORT, FRONT LH | ||||
| 51963-B1010 |
M900,910 |
1 | ||
| 52141F - ARM, FRONT BUMPER, RH | ||||
| 52141-B1030 |
M900,910 |
1 | ||
| 52142G - ARM, FRONT BUMPER, LH | ||||
| 52142-B1030 |
M900,910 |
1 | ||
| 53213D - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-B1070 |
M900,910 |
1 | ||
| 53214C - SUPPORT, RADIATOR, UPPER LH | ||||
| 53213-B1070 |
M900,910 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-B1010 |
M900,910 |
1 | ||
| 57032A - BRACKET SUB-ASSY, NO.7 BODY MOUNTING, LH | ||||
| 57032-B1010 |
M900,910 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-B1050 |
M900,910 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-B1060 |
M900,910 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-B1040 |
M900,910 |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-B1050 |
M900,910 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-B1030 |
M900,910 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-B1010 |
M900,910 |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-B1010 |
M900,910 |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-B1010 |
M900,910 |
1 | ||
| 57181B - PLATE, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57181-B1030 |
M900,910 |
1 | ||
| 57182B - PLATE, FRONT SIDE MEMBER, NO.3 LH | ||||
| 57181-B1030 |
M900,910 |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-B1020 |
M900,910 |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-B1020 |
M900,910 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-B1060 |
M900,910 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-B1060 |
M900,910 |
1 | ||
| Common parts | ||||
| 53755-B1030 | ||||
| 53756-B1030 | ||||
| 57125-B1010 | ||||
| 57126-B1010 | ||||
| 90048-74013 | ||||
| 91551-80612 | ||||
| 91553-80816 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 5701 | ||||

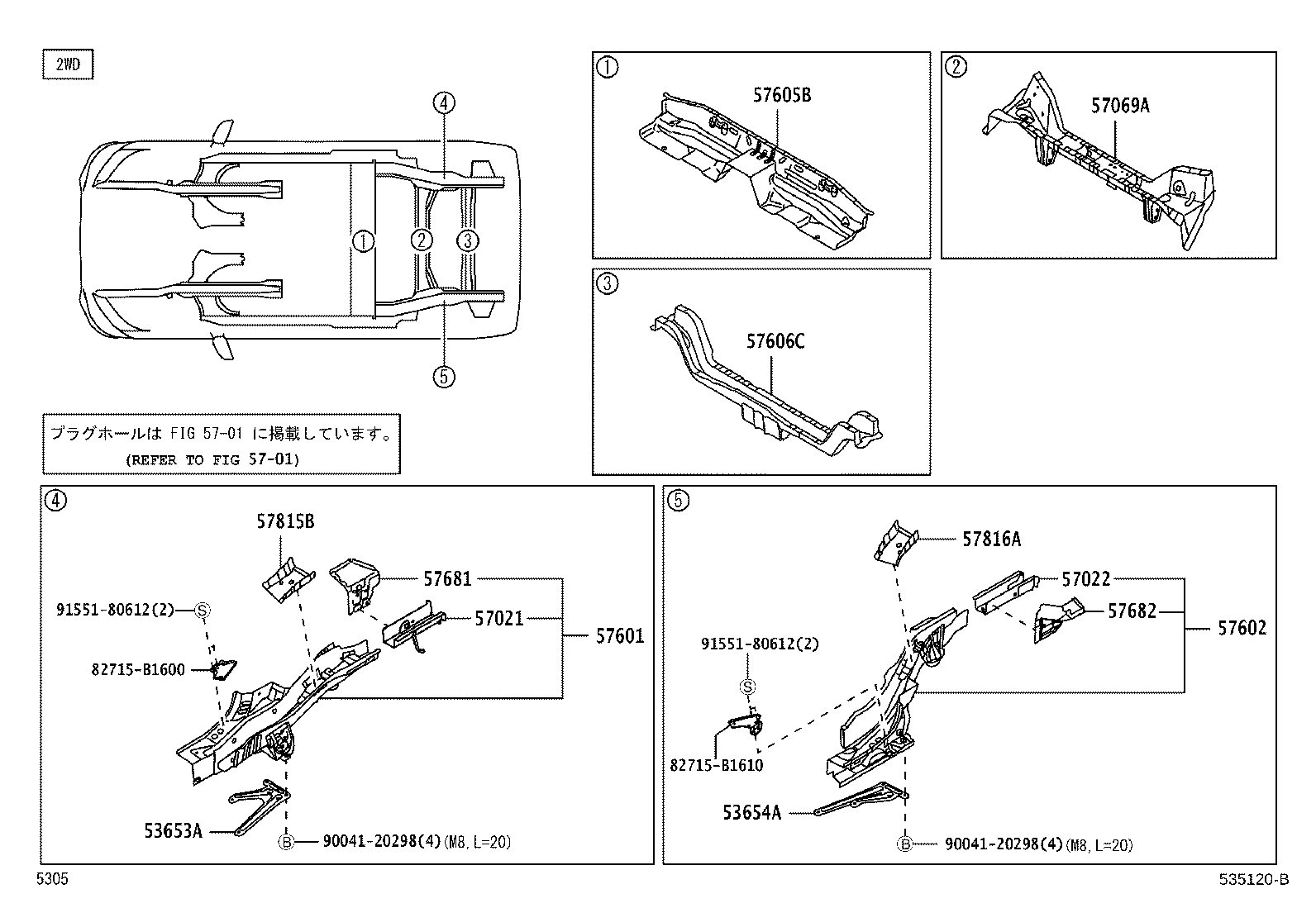

ILLUST NO. 2 OF 2(1611- )M900
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53653A - BRACE, REAR SUSPENSION, LOWER RH | ||||
| 53653-B1010 |
M900 |
1 | ||
| 53654A - BRACE, REAR SUSPENSION, LOWER LH | ||||
| 53654-B1010 |
M900 |
1 | ||
| 57021 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH | ||||
| 57033-B1010 |
M900 |
1 | ||
| 57022 - BRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH | ||||
| 57034-B1020 |
M900,910 |
1 | ||
| 57069A - MEMBER, REAR FLOOR, CENTER | ||||
| 57069-B1060 |
M900 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-B1110 |
M900 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-B1110 |
M900 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-B1080 |
M900 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-B1021 |
M900 |
1 | ||
| 57681 - BRACKET, REAR SHOCK ABSORBER, RH | ||||
| 61063-B1010 |
M900,910 |
1 | ||
| 57682 - BRACKET, REAR SHOCK ABSORBER, LH | ||||
| 61064-B1030 |
M900,910 |
1 | ||
| 57815B - REINFORCEMENT, BELT ANCHOR, NO.1 RH | ||||
| 58298-B1030 |
M900,910 |
1 | ||
| 57816A - REINFORCEMENT, BELT ANCHOR, NO.1 LH | ||||
| 58299-B1030 |
M900,910 |
1 | ||
| Common parts | ||||
| 82715-B1600 | ||||
| 82715-B1610 | ||||
| 90041-20298 | ||||
| 91551-80612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
