M900A-BGBVJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

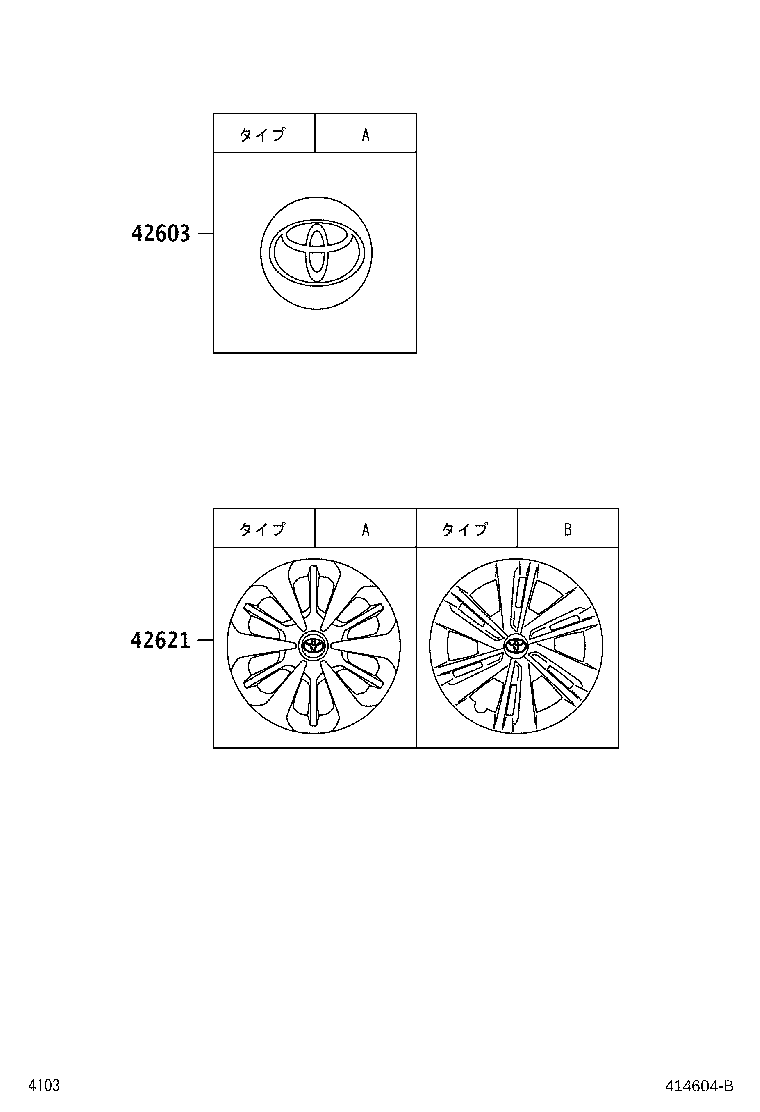

ｵｰﾅﾒﾝﾄ,ﾎｲｰﾙｷｬｯﾌﾟ

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42638-B1110

M900..G..TBO

*ALU(ﾌﾞﾗｯｸﾒﾀﾘｯｸ),175/55R15 5J−ｱﾙﾐﾎｨｰﾙ,ﾀｲﾌﾟ A

 4
42638-B1110

M900,910..CTMG

*ALU(ﾌﾞﾗｯｸﾒﾀﾘｯｸ),ﾀｲﾌﾟ A

 4
42621 - CAP, WHEEL
42602-B1230B0

M900,910..G,X

-,ﾀｲﾌﾟ A

 4

(1611- )

Click highlighted areas on diagram

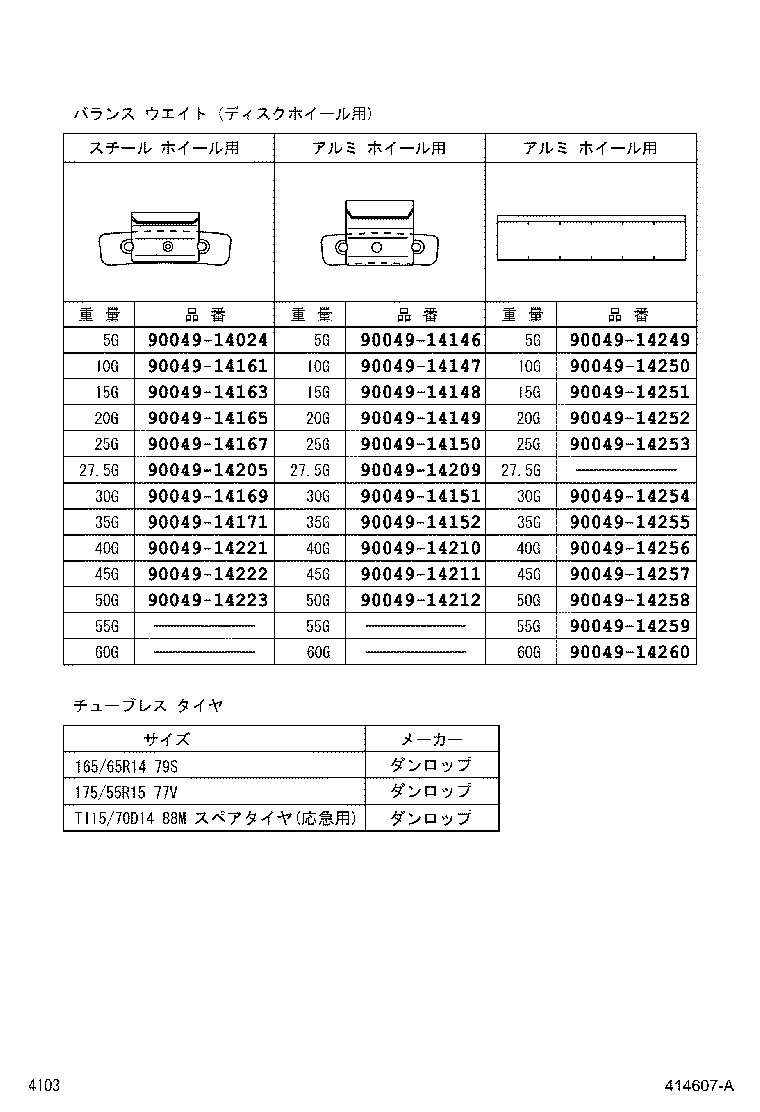

ﾊﾞﾗﾝｽｳｪｲﾄ,ﾁｭｰﾌﾞﾚｽﾀｲﾔ

diagram 9004914024 9004914146 9004914147 9004914148 9004914149 9004914150 9004914151 9004914152 9004914161 9004914163 9004914165 9004914167 9004914169 9004914171 9004914205 9004914209 9004914210 9004914211 9004914212 9004914221 9004914222 9004914223 9004914249 9004914250 9004914251 9004914252 9004914253 9004914254 9004914255 9004914256 9004914257 9004914258 9004914259 9004914260
Part # Description Qty Price
Common parts
90049-14024
90049-14146
90049-14147
90049-14148
90049-14149
90049-14150
90049-14151
90049-14152
90049-14161
90049-14163
90049-14165
90049-14167
90049-14169
90049-14171
90049-14205
90049-14209
90049-14210
90049-14211
90049-14212
90049-14221
90049-14222
90049-14223
90049-14249
90049-14250
90049-14251
90049-14252
90049-14253
90049-14254
90049-14255
90049-14256
90049-14257
90049-14258
90049-14259
90049-14260

(1611- )

Click highlighted areas on diagram

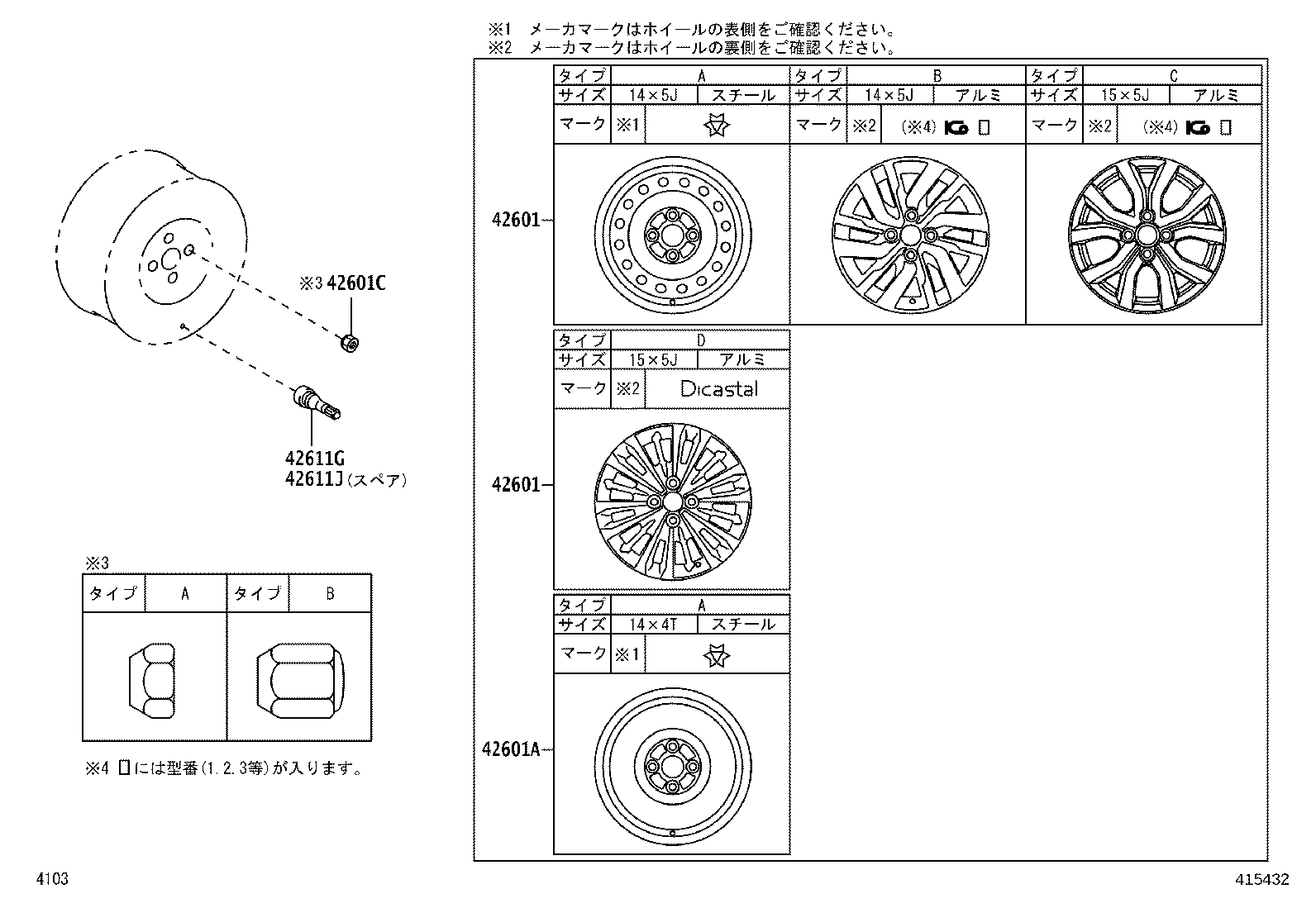

ﾃﾞｨｽｸﾎｲｰﾙ,ｽﾍﾟｱﾎｲｰﾙ

diagram 42601 42601 42601A 42601C 42611G 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
42611-B1230E0

M900..G..TBO

15X5J,175/55R15 5J−ｱﾙﾐﾎｨｰﾙ,-,ﾀｲﾌﾟ C

 4
42611-B1230E0

M900..CTMG..TBO

15X5J,-,ﾀｲﾌﾟ C

 4
42611-B1220

M900,910..G,X

14X5J,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A ﾌﾞﾗｯｸ

 4
42601 - WHEEL, DISC
42611-B1230E0

M900..G..TBO

15X5J,175/55R15 5J−ｱﾙﾐﾎｨｰﾙ,-,ﾀｲﾌﾟ C

 4
42611-B1230E0

M900..CTMG..TBO

15X5J,-,ﾀｲﾌﾟ C

 4
42611-B1220

M900,910..G,X

14X5J,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,TYPE A ﾌﾞﾗｯｸ

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-97540

M900,910

14X4T,ｽﾁｰﾙ,ﾌﾞﾗｯｸ,ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14),TYPE A ﾌﾞﾗｯｸ

 1
42601C - NUT, HUB (FOR AXLE)
90049-11036

M900,910..G,X

ﾀｲﾌﾟ A

 16
90049-11047

M900,910..CTMG

ﾀｲﾌﾟ B

 16
90049-11047

M900..G..TBO

175/55R15 5J−ｱﾙﾐﾎｨｰﾙ,ﾀｲﾌﾟ B

 16
42611G - VALVE (FOR TUBELESS TIRE)
90049-02019

M900,910

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90049-02019

M900,910

ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)

 1
