Toyota Tank/roomy M900A REAR DOOR LOCK & HANDLE

Part #	Description	Period	Qty
68035B - BRACKET SUB-ASSY, SLIDE DOOR CATCH, RH
68035-B2020	M900,910	11/2016 - 06/2017	1
68035-B2040	M900,910	07/2017 - 09/2020	1
68035C - BRACKET SUB-ASSY, SLIDE DOOR CATCH, LH
68035-B2040	M900,910	07/2017 - 09/2020	1
68035-B2020	M900,910	11/2016 - 06/2017	1
69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69050-B2040	M900,910	11/2016 - 03/2018	1
69050-B2041	M900,910	04/2018 - 09/2020	1
69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
69060-B2041	M900,910	04/2018 - 09/2020	1
69060-B2040	M900,910	11/2016 - 03/2018	1
69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH
69070-B2090C0	M900,910..CTMG,G BLACK,TRIM1#,ﾓｰﾀｰ付き	11/2016 - 12/2016	1
69070-B2091C0	M900,910..CTMG,G BLACK,TRIM1#,ﾓｰﾀｰ付き	12/2016 - 09/2020	1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69080-B2170C0	M900,910 BLACK,TRIM1#,ﾓｰﾀｰ付き	11/2016 - 12/2016	1
69080-B2171C0	M900,910 BLACK,TRIM1#,ﾓｰﾀｰ付き	12/2016 - 09/2020	1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-B2040	M900,910	11/2016 - 09/2020	1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69203-B2040	M900,910	11/2016 - 09/2020	1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-B1010B0	M900,910..TANK..CTMG SILVER ME.,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,X07 ,X96 ,X99 ,XE2 ,XG3 ,XG4 ,XG5 ,XG6 ,Y14,ﾘｸｴｽﾄｽｲｯﾁ付き	11/2016 - 09/2020	1
69230-B1010B0	M900,910..TANK..G SILVER ME.,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,X07 ,Y14,ﾘｸｴｽﾄｽｲｯﾁ付き	11/2016 - 09/2020	1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-B1010B0	M900,910..TANK..(G,X) SILVER ME.,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,X07 ,Y14,ﾘｸｴｽﾄｽｲｯﾁ付き	11/2016 - 09/2020	1
69240-B1010B0	M900,910..TANK..CTMG SILVER ME.,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,W24 ,X07 ,X96 ,X99 ,XE2 ,XG3 ,XG4 ,XG5 ,XG6 ,Y14,ﾘｸｴｽﾄｽｲｯﾁ付き	11/2016 - 09/2020	1
69330 - LOCK ASSY, REAR DOOR, RH
69200-B2050	M900,910..CTMG,G ﾓｰﾀｰ付き	11/2016 - 09/2020	1
69331C - ROD, REAR DOOR LOCK OPEN, RH
69331-B1020	M900,910	11/2016 - 09/2020	1
69332A - ROD, REAR DOOR LOCK OPEN, LH
69332-B1020	M900,910	11/2016 - 09/2020	1
69340 - LOCK ASSY, REAR DOOR, LH
69300-B2050	M900,910 ﾓｰﾀｰ付き	11/2016 - 09/2020	1
69393A - COVER, REAR DOOR LOCK, OUTER RH
69482-B2011	M900,910	02/2019 - 09/2020	1
69482-B2010	M900,910	11/2016 - 01/2019	1
69394 - COVER, REAR DOOR LOCK, OUTER LH
69482-B2011	M900,910	02/2019 - 09/2020	1
69482-B2010	M900,910	11/2016 - 01/2019	1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69470-B2010	M900,910	11/2016 - 09/2020	1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69470-B2010	M900,910	11/2016 - 09/2020	1
69425B - PLATE, DOOR LOCK STRIKER AUXILIARY, RH(FOR REAR DOOR)
69420-B2020	M900,910	11/2016 - 09/2020	1
69426B - PLATE, DOOR LOCK STRIKER AUXILIARY, LH(FOR REAR DOOR)
69420-B2020	M900,910	11/2016 - 09/2020	1
69485D - STRIKER, SLIDE DOOR OPEN, RH
69485-46010	M900,910	11/2016 - 09/2018	1
69485-B1010	M900,910	10/2018 - 09/2020	1
69486E - STRIKER, SLIDE DOOR OPEN, LH
69486-B1010	M900,910	10/2018 - 09/2020	1
69486-46020	M900,910	11/2016 - 09/2018	1
69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69707-B2040	M900,910	11/2016 - 09/2020	1
69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69708-B2020	M900,910	11/2016 - 09/2020	1
69735 - SILENCER, REAR DOOR LOCK LINK
69759-B2030	M900,910	11/2016 - 09/2020	1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040	M900,910	11/2016 - 09/2020	1
Common parts
90041-05504
90041-09263
90041-48010
90148-60083
90148-80040
91631-60612
91635-B0618
Linked diagrams
6101
6707
8202

M900A-BGBVE (2016)

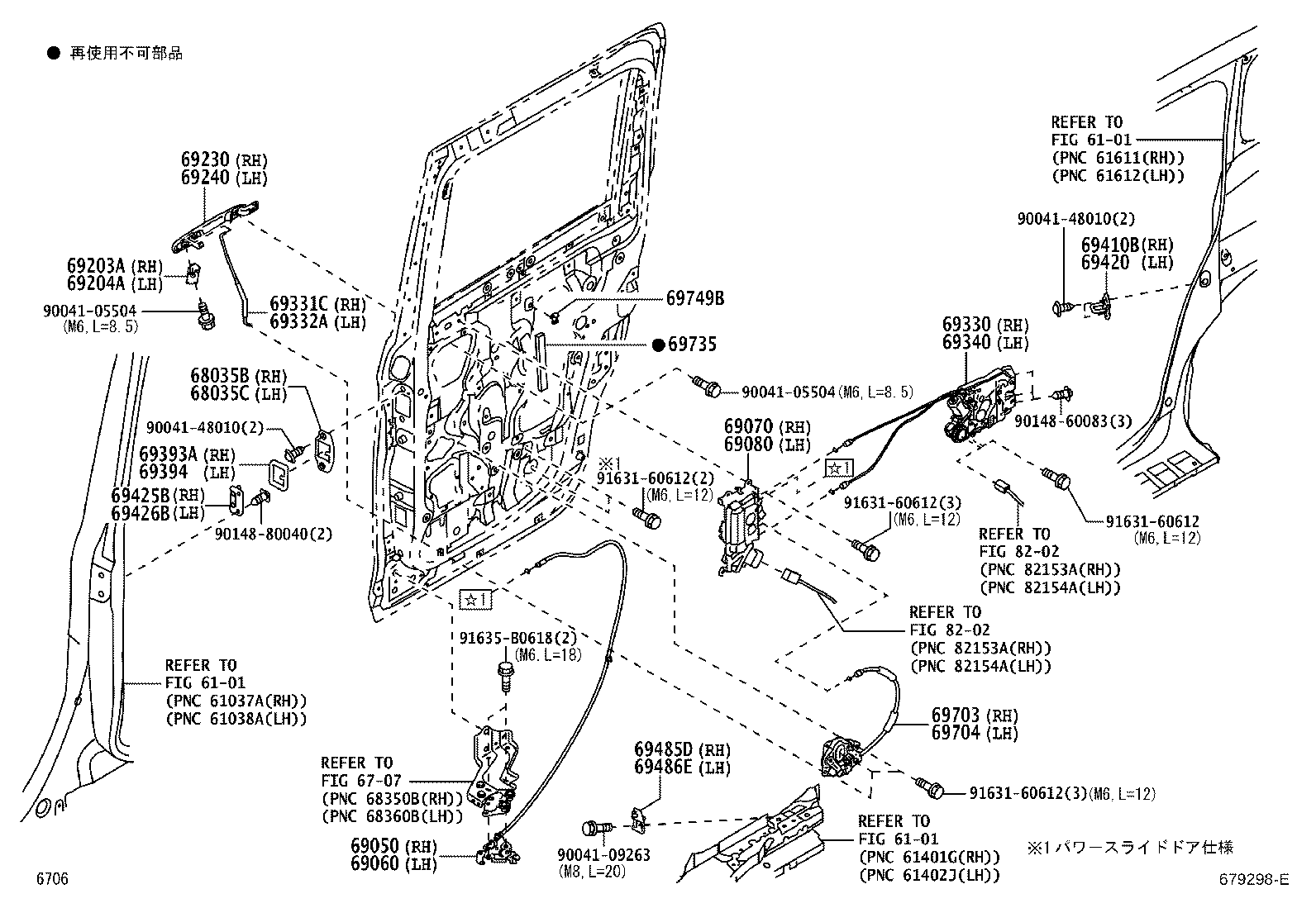

ILLUST NO. 1 OF 2(1611- )

ILLUST NO. 2 OF 2(1611- )

Part Price Details

Part #	Description	Period	Qty

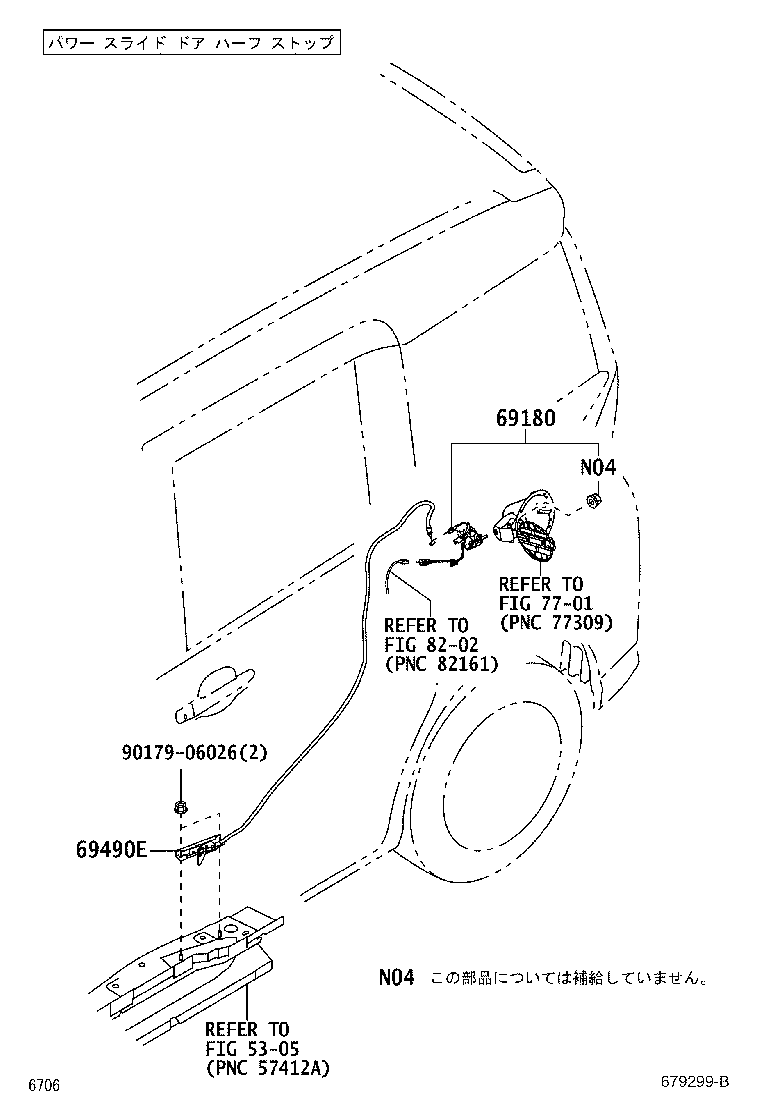

69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
69180-B2031	M900,910	09/2018 - 09/2020	1
69180-B2030	M900,910	11/2016 - 08/2018	1
69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN
69490-B1010	M900,910	11/2016 - 09/2020	1
Common parts
90179-06026
Linked diagrams
5305
7701
8202
