M900A-BGBVE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )M900

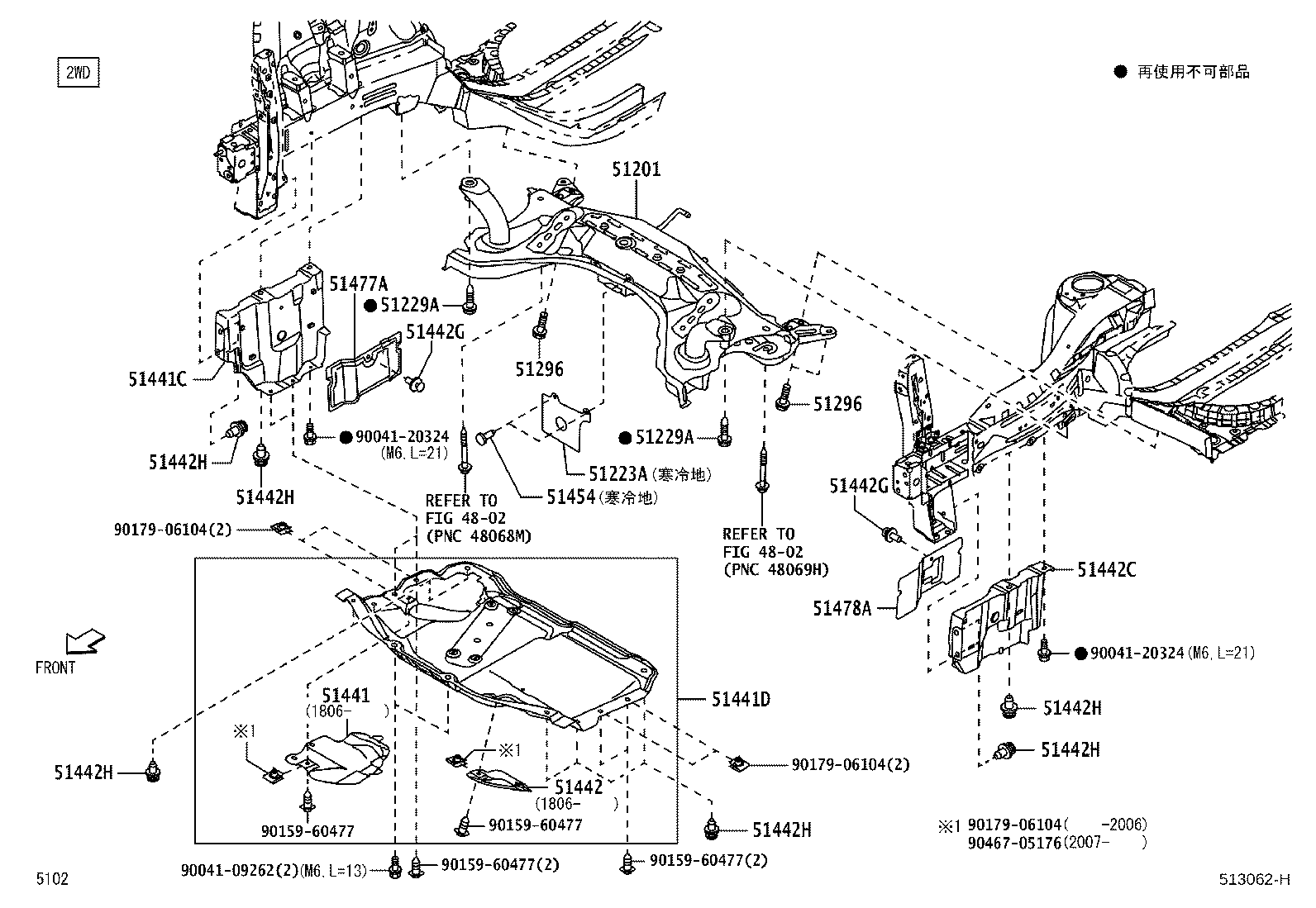

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-B1160 |
M900 |
1 | ||
| 51223A - COVER, ENGINE MOUNTING HOLE | ||||
| 51223-B1010 |
M900 寒冷地仕様 |
1 | ||
| 51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 90041-01638 |
M900,910 M12,L=75 |
2 | ||
| 51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 90041-01638 |
M900,910 M12,L=75 |
2 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 90041-19948 |
M900 M10,L=25 |
4 | ||
| 51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING | ||||
| 90041-19948 |
M900 M10,L=25 |
4 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51453-B1020 |
M900,910 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-B1090 |
M900,910 |
1 | ||
| 51441D - COVER, ENGINE UNDER | ||||
| 51405-B1020 |
M900,910 |
1 | ||
| 51405-B1010 |
M900,910 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51454-B1020 |
M900,910 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-B1070 |
M900,910 |
1 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90044-67617 |
M900,910 |
2 | ||
| 51442G - CLIP, ENGINE UNDER COVER, NO.1 | ||||
| 90044-67617 |
M900,910 |
2 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90044-68320 |
M900,910 |
12 | ||
| 90044-68378 |
M900,910 |
12 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90044-68320 |
M900,910 |
12 | ||
| 90044-68378 |
M900,910 |
12 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90044-68320 |
M900,910 |
12 | ||
| 90044-68378 |
M900,910 |
12 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90044-68320 |
M900,910 |
12 | ||
| 90044-68378 |
M900,910 |
12 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90044-68378 |
M900,910 |
12 | ||
| 90044-68320 |
M900,910 |
12 | ||
| 51442H - CLIP, ENGINE UNDER COVER, NO.2 | ||||
| 90044-68320 |
M900,910 |
12 | ||
| 90044-68378 |
M900,910 |
12 | ||
| 51454 - CLIP | ||||
| 90044-67517 |
M900 寒冷地仕様 |
2 | ||
| 51477A - SILENCER, ENGINE UNDER COVER, RH | ||||
| 51477-B1010 |
M900,910 |
1 | ||
| 51478A - SILENCER, ENGINE UNDER COVER, LH | ||||
| 51478-B1010 |
M900,910 |
1 | ||
| Common parts | ||||
| 90041-09262 | ||||
| 90041-20324 | ||||
| 90159-60477 | ||||
| 90179-06104 | ||||
| 90467-05176 | ||||
| Linked diagrams | ||||
| 4802 | ||||
