Toyota Tank/roomy M900A BACK DOOR LOCK & HANDLE

Manufacturers Home
Toyota
JP
TANK/ROOMY
M900A-BGBGJ (2016)
6709 - BACK DOOR LOCK & HANDLE

M900A-BGBGJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020

Engine 1KRVET

Transmission CVT

Displacement 2500cc

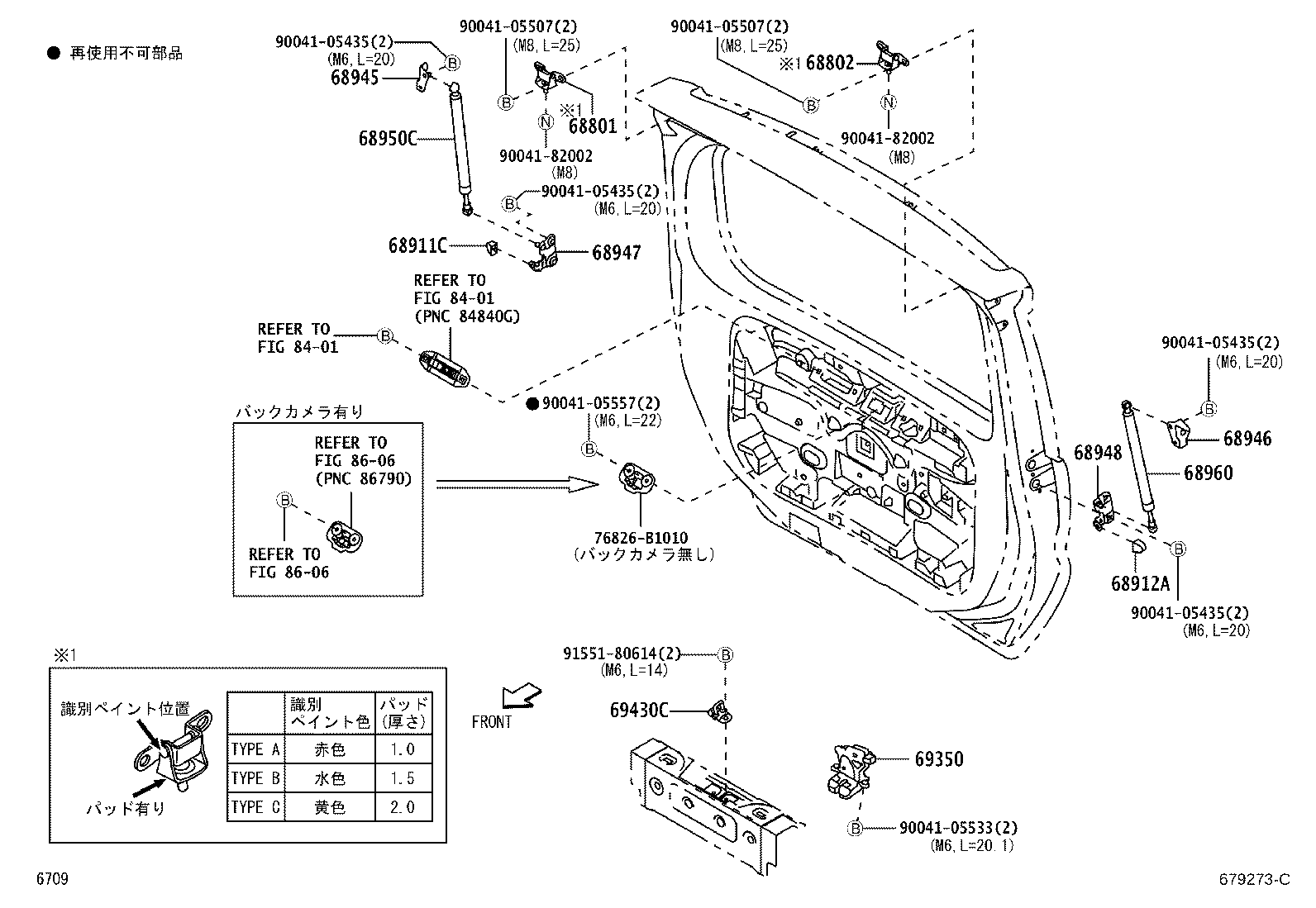

Power 168 HP (125 kW)

(1611-2005)

Click highlighted areas on diagram

Part #	Description	Period	Qty
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-B1050	M900,910 TYPE A / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68801-B1070	M900,910 TYPE C / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68801-B1060	M900,910 TYPE B / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68802-B1020	M900,910 TYPE B / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68802-B1030	M900,910 TYPE C / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68802-B1010	M900,910 TYPE A / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68911C - COVER, BACK DOOR STAY, RH
68911-B1010	M900,910	11/2016 - 09/2020	1
68912A - COVER, BACK DOOR STAY, LH
68911-B1010	M900,910	11/2016 - 09/2020	1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-B1030	M900,910	11/2016 - 09/2020	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-B1020	M900,910	11/2016 - 09/2020	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-B1010	M900,910	11/2016 - 09/2020	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-B1010	M900,910	11/2016 - 09/2020	1
68950C - STAY ASSY, BACK DOOR, RH
68950-B1210	M900,910..G,X	11/2016 - 09/2020	1
68960 - STAY ASSY, BACK DOOR, LH
68950-B1210	M900,910..G,X	11/2016 - 09/2020	1
69350 - LOCK ASSY, BACK DOOR
69350-B1090	M900,910 ﾓｰﾀｰ付き	11/2016 - 01/2017	1
69350-B2400	M900,910 ﾓｰﾀｰ付き	02/2017 - 09/2020	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-B2070	M900,910	11/2016 - 09/2020	1
Common parts
76826-B1010
90041-05435
90041-05507
90041-05533
90041-05557
90041-82002
91551-80614
Linked diagrams
8401
8606

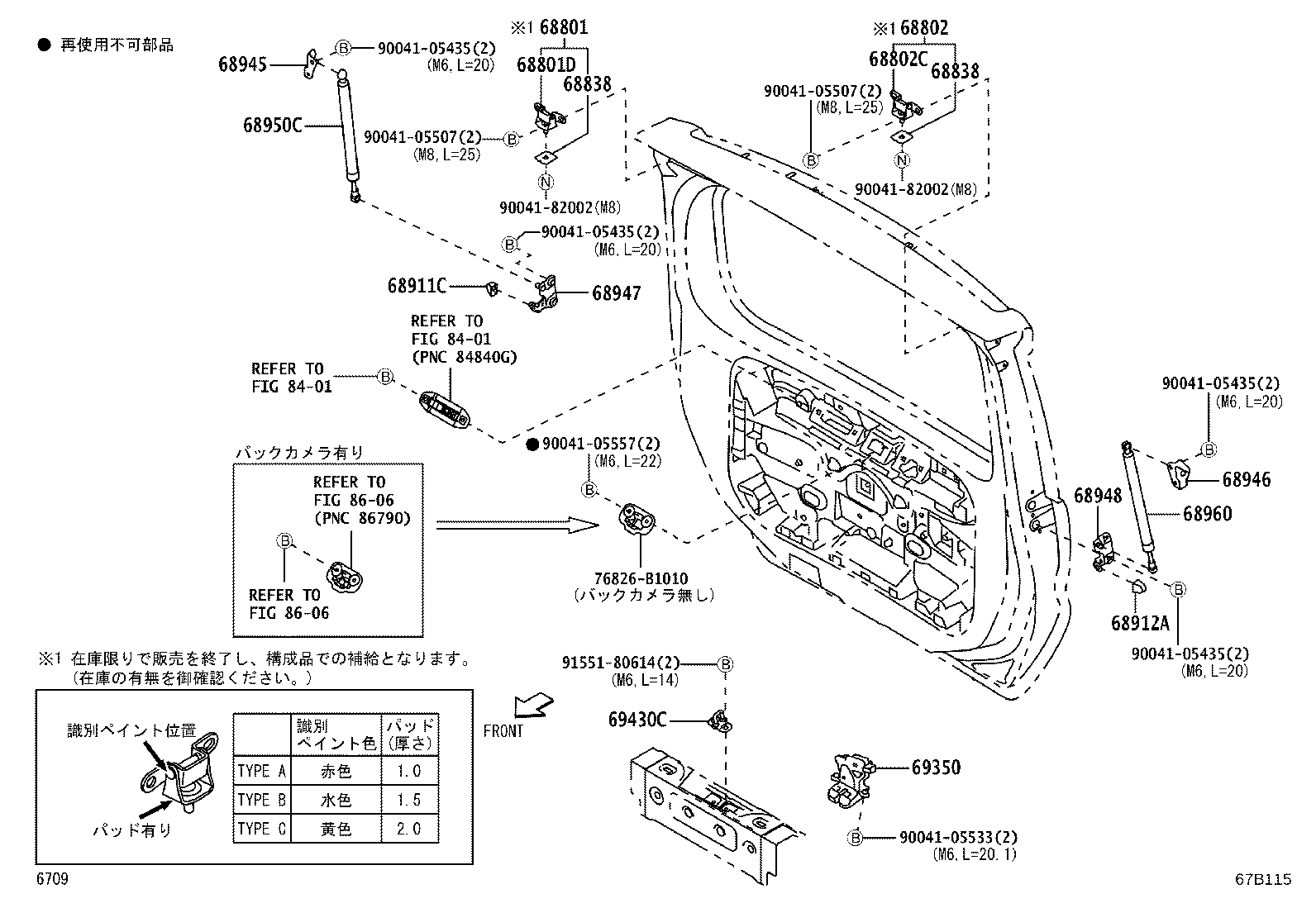

(2005- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-B1050	M900,910 TYPE A / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68801-B1070	M900,910 TYPE C / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68801-B1060	M900,910 TYPE B / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-B1080	M900,910	05/2020 - 09/2020	1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68802-B1020	M900,910 TYPE B / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68802-B1030	M900,910 TYPE C / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68802-B1010	M900,910 TYPE A / ﾊﾟｯﾄﾞ付き	11/2016 - 09/2020	1
68802C - HINGE SUB-ASSY, BACK DOOR, LH
68802-B1040	M900,910	05/2020 - 09/2020	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-B1020	M900,910 厚さ=1.0	05/2020 - 09/2020	1
68838-B1040	M900,910 厚さ=2.0	05/2020 - 09/2020	1
68838-B1030	M900,910 厚さ=1.5	05/2020 - 09/2020	1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-B1020	M900,910 厚さ=1.0	05/2020 - 09/2020	1
68838-B1040	M900,910 厚さ=2.0	05/2020 - 09/2020	1
68838-B1030	M900,910 厚さ=1.5	05/2020 - 09/2020	1
68911C - COVER, BACK DOOR STAY, RH
68911-B1010	M900,910	11/2016 - 09/2020	1
68912A - COVER, BACK DOOR STAY, LH
68911-B1010	M900,910	11/2016 - 09/2020	1
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-B1030	M900,910	11/2016 - 09/2020	1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-B1020	M900,910	11/2016 - 09/2020	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-B1010	M900,910	11/2016 - 09/2020	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-B1010	M900,910	11/2016 - 09/2020	1
68950C - STAY ASSY, BACK DOOR, RH
68950-B1210	M900,910..G,X	11/2016 - 09/2020	1
68960 - STAY ASSY, BACK DOOR, LH
68950-B1210	M900,910..G,X	11/2016 - 09/2020	1
69350 - LOCK ASSY, BACK DOOR
69350-B1090	M900,910 ﾓｰﾀｰ付き	11/2016 - 01/2017	1
69350-B2400	M900,910 ﾓｰﾀｰ付き	02/2017 - 09/2020	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-B2070	M900,910	11/2016 - 09/2020	1
Common parts
76826-B1010
90041-05435
90041-05507
90041-05533
90041-05557
90041-82002
91551-80614
Linked diagrams
8401
8606
