M900A-BGBGJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )1KRVET

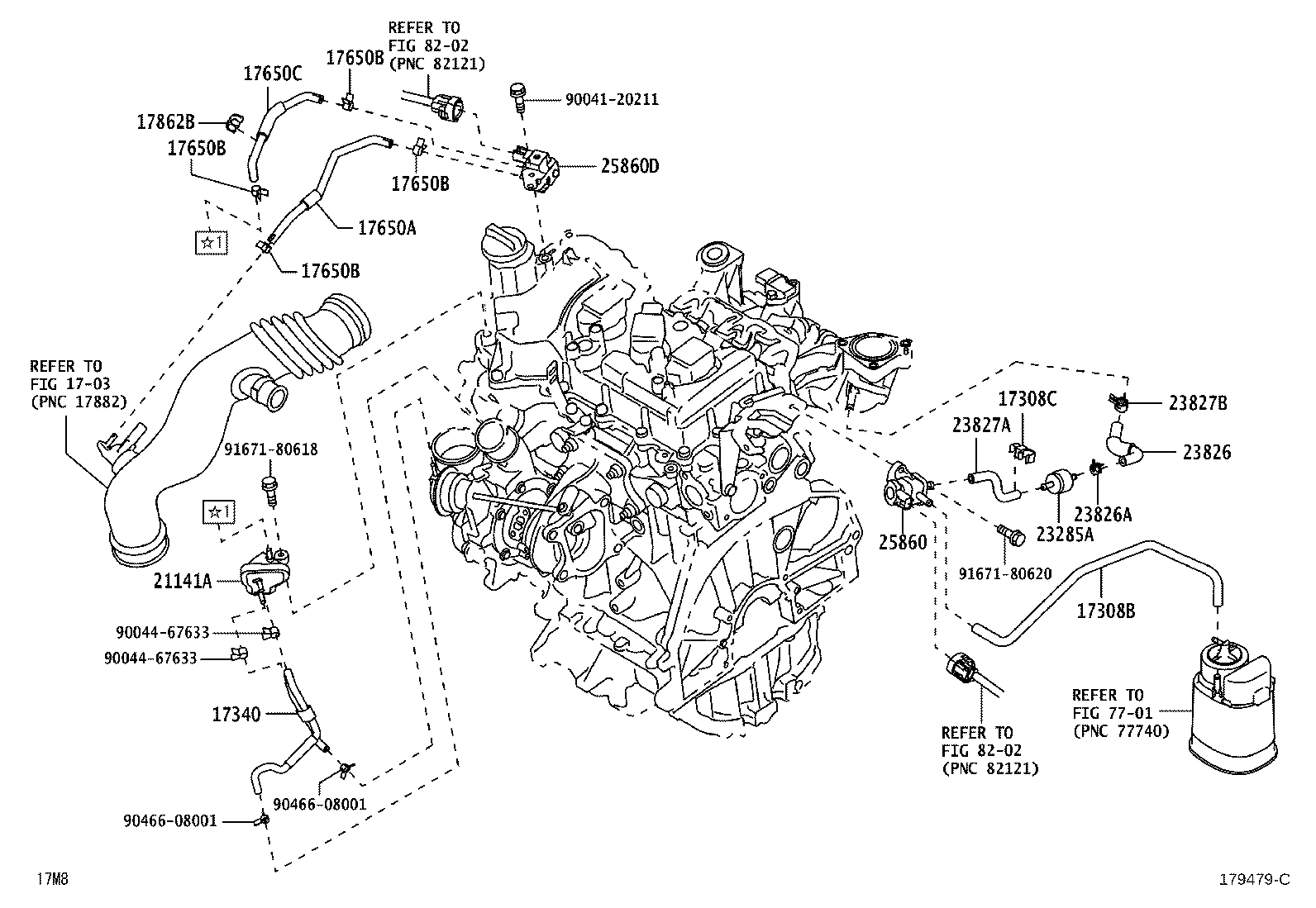

Click highlighted areas on diagram

diagram 1703 17308B 17308C 17340 17650A 17650B 17650B 17650B 17650B 17650C 17862B 21141A 23285A 23826 23826A 23827A 23827B 25860 25860D 7701 8202 8202 9004120211 9004467633 9004467633 9046608001 9046608001 9167180618 9167180620
Part # Description Qty Price
17308B - HOSE SUB-ASSY, VACUUM
77754-B1170

1KRVET..M900

 1
17308C - CLAMP(FOR VACUUM HOSE)
90464-00804

1KRVET..M900

 1
17340 - HOSE ASSY, VACUUM SWITCHING VALVE
17340-B1010

1KRVET..M900

 1
17650A - HOSE(FOR VACUUM SWITCHING VALVE)
17294-B1030

1KRVET..M900

 1
17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE)
90044-67633

1KRVET..M900

 4
17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE)
90044-67633

1KRVET..M900

 4
17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE)
90044-67633

1KRVET..M900

 4
17650B - CLIP(FOR VACUUM SWITCHING VALVE HOSE)
90044-67633

1KRVET..M900

 4
17650C - HOSE(FOR VACUUM SWITCHING VALVE TO MANIFOLD)
17294-B1040

1KRVET..M900

 1
17862B - CLAMP, HOSE
90464-00831

1KRVET..M900

 1
21141A - CHAMBER, SUCTION
21141-B1010

1KRVET..M900

 1
23285A - VALVE, CHECK, NO.1
90048-20012

1KRVET..M900

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-B1020

1KRVET..M900

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90044-67230

1KRVET..M900

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-B1060

1KRVET..M900

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96135-41100

1KRVET..M900

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-B1050

1KR#..M900,910

 1
90910-12280

1KR#..M900,910

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
89470-B1030

1KRVET..M900

 1
Common parts
90041-20211
90044-67633
90466-08001
91671-80618
91671-80620
