M900A-BGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-2009)M900 ; (2009- )M900..G,X

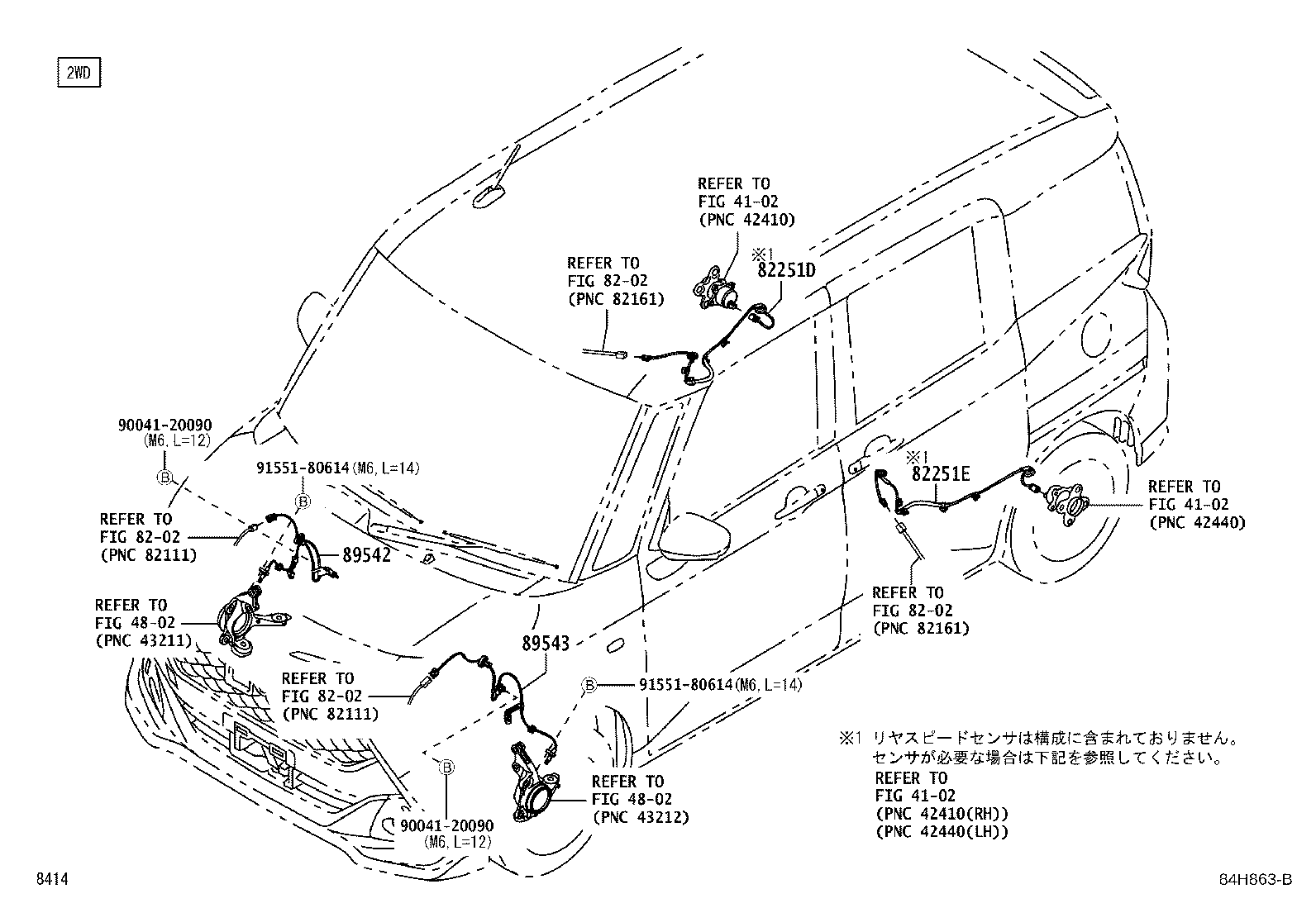

Click highlighted areas on diagram

ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ ﾅｼ

diagram 4102 4102 4102 4802 4802 8202 8202 8202 8202 82251D 82251E 89542 89543 9004120090 9004120090 9155180614 9155180614
Part # Description Qty Price
82251D - WIRE, SPEED SENSOR, RH
82251-B1110

M900

 1
82251E - WIRE, SPEED SENSOR, LH
82251-B1120

M900

 1
89542 - SENSOR, SPEED, FRONT RH
89542-B1040

M900,910

 1
89543 - SENSOR, SPEED, FRONT LH
89543-B1050

M900,910

 1
Common parts
90041-20090
91551-80614
Linked diagrams
4102
4802
8202
