M900A-BGBGE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )CTMG,G

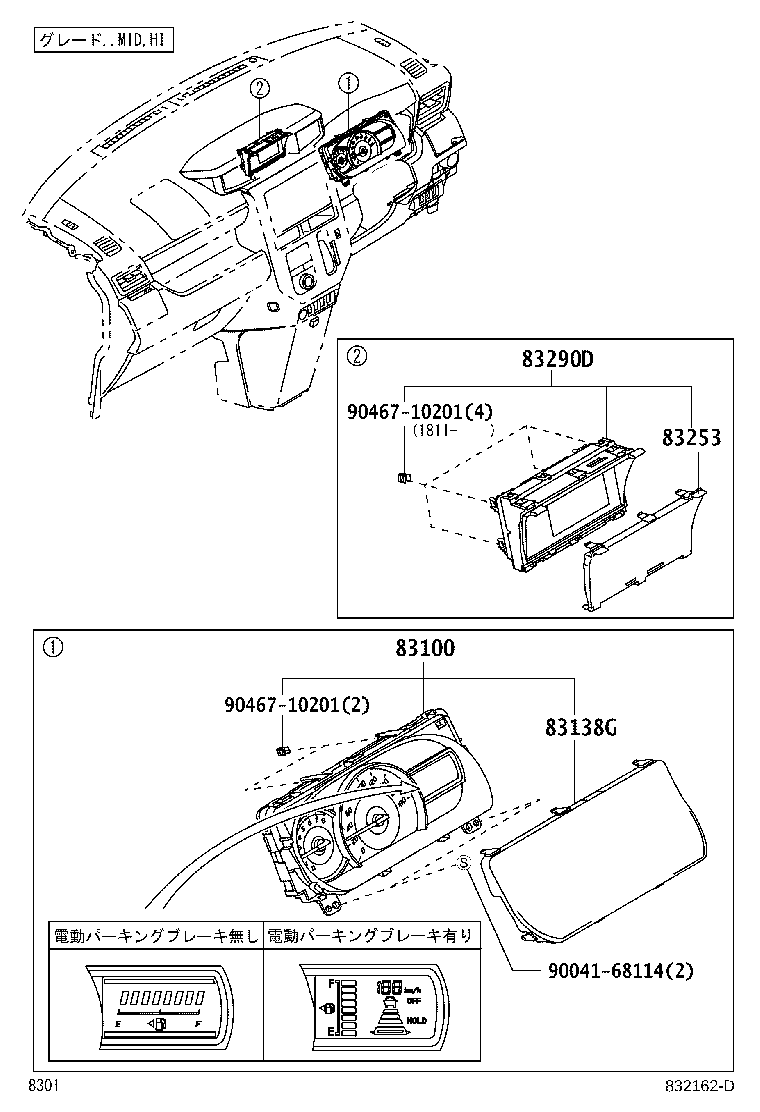

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83800-B1E00 |
M900,910..G YAZAKI |
1 | ||
| 83800-B1E80 |
M900,910..G YAZAKI |
1 | ||
| 83800-B1E01 |
M900,910..G YAZAKI |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-B1E00 |
M900,910..CTMG,G |
1 | ||
| 83253 - GLASS, CENTER DISPLAY | ||||
| 83253-B1010 |
M900,910 |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-B1031 |
M900,910..CTMG,G |
1 | ||
| 83290-B1030 |
M900,910..CTMG,G |
1 | ||
| Common parts | ||||
| 90041-68114 | ||||
| 90467-10201 | ||||
