M900A-BGBGE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )1KRFE

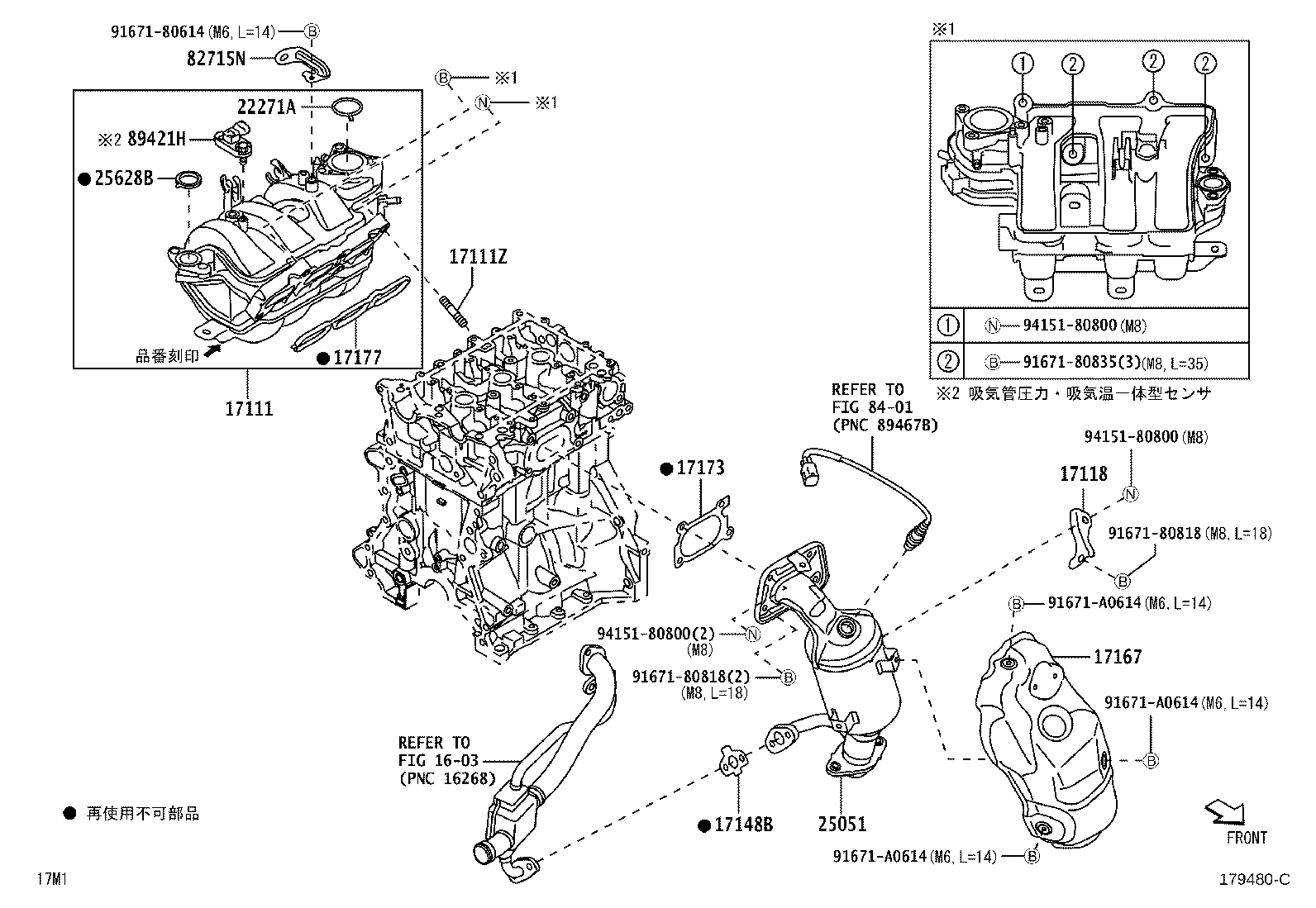

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-B1051 |
1KRFE..M900,910 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 92122-80828 |
1KR#..M900,910 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-40040 |
1KRFE..M900,910 |
1 | ||
| 17148B - GASKET, EGR INLET | ||||
| 25685-B1010 |
1KRFE..M900,910 |
1 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-B1050 |
1KRFE..M900,910 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-40040 |
1KRFE..M900,910 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-B1030 |
1KR#..M900,910 |
1 | ||
| 22271A - GASKET, THROTTLE BODY | ||||
| 22271-40030 |
1KR#..M900,910 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-B1180 |
1KRFE..M900,910 |
1 | ||
| 25051-B1181 |
1KRFE..M900,910 |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-B1040 |
1KRFE..M900,910 |
1 | ||
| 82715N - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-B1510 |
M900,910..NTBO |
1 | ||
| 89421H - SENSOR, VACUUM | ||||
| 89421-52010 |
M900,910..NTBO |
1 | ||
| 89421-B1020 |
M900..TBO |
1 | ||
| Common parts | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 91671-80835 | ||||
| 91671-A0614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
