M900A-AGBVJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

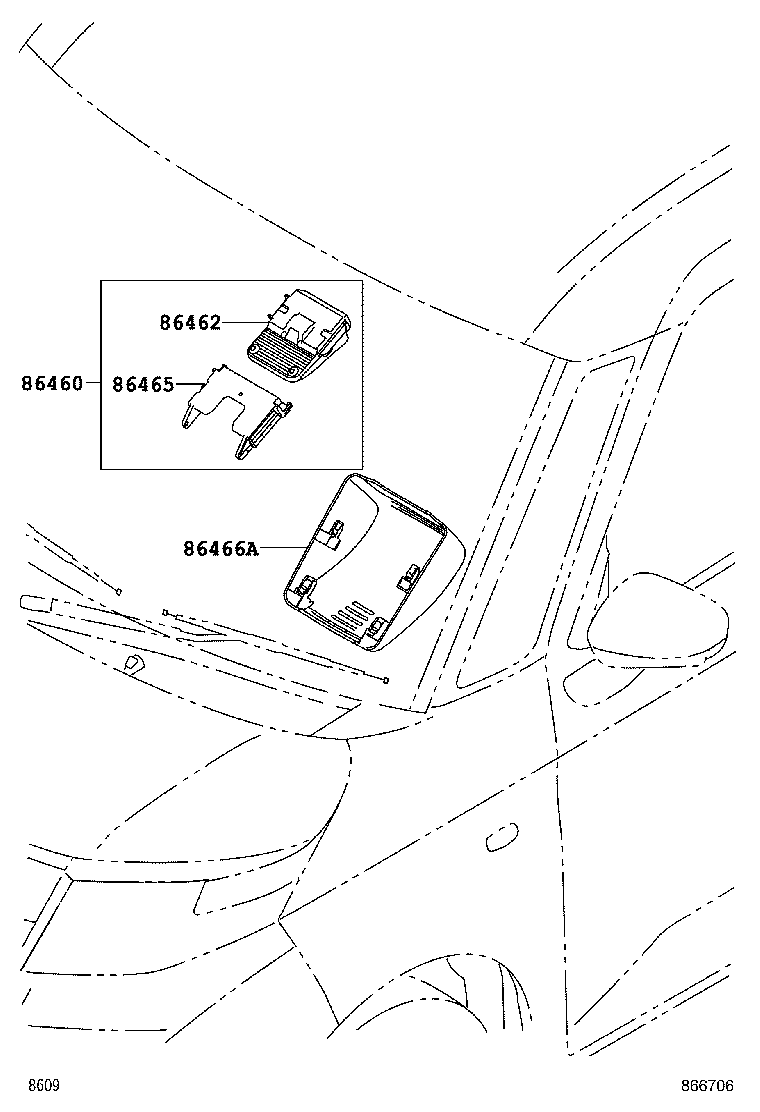

(1611-1811)

Click highlighted areas on diagram

diagram 86460 86462 86465 86466A
Part # Description Qty Price
86460 - SENSOR ASSY, LANE RECOGNITION CAMERA
86460-B1050

M900,910..CTMG,G

 1
86460-B1020

M900..TBO

 1
86462 - CAMERA, OBJECT RECOGNITION
8646C-B1020

M900..TBO

 1
8646C-B1050

M900,910..CTMG,G

 1
86465 - BRACKET, LANE RECOGNITION
87241-B2150

M900,910..CTMG,G

 1
87241-B2090

M900..TBO

 1
86466A - COVER, LANE RECOGNITION, NO.1
86466-B1060C0

M900,910..CTMG,G

BLACK,TRIM1#

 1
86466-B1020C0

M900..TBO

BLACK,TRIM1#

 1

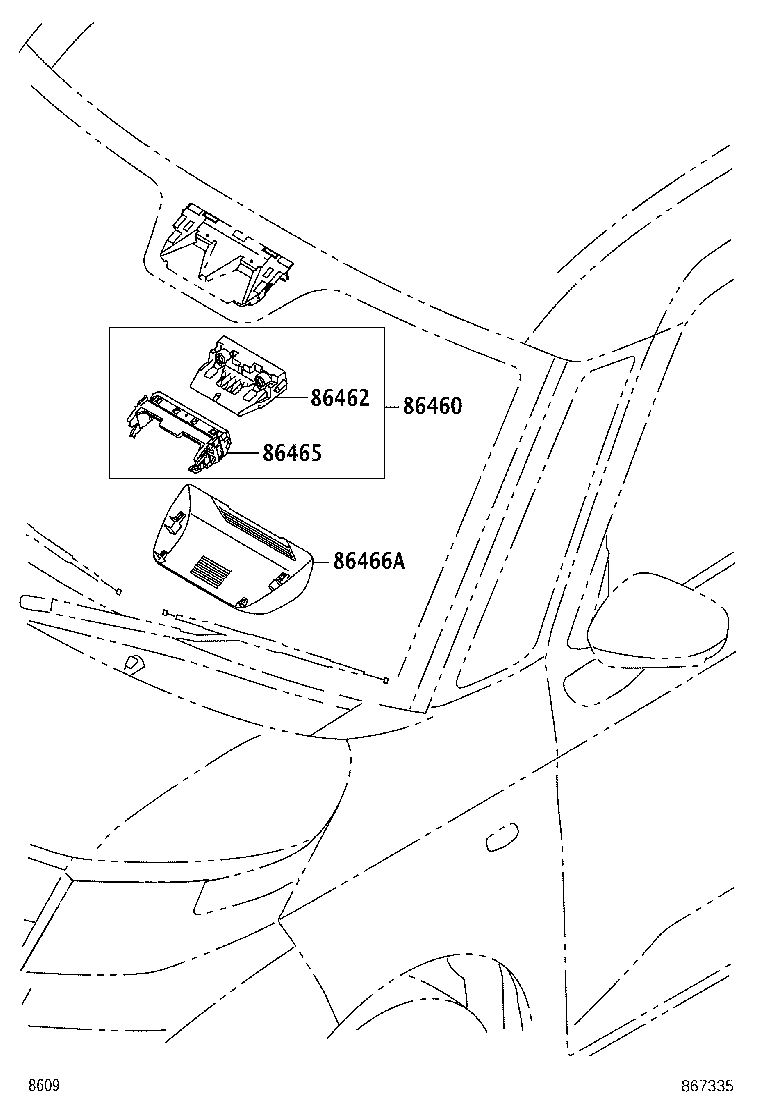

(1811-2009)

Click highlighted areas on diagram

diagram 86460 86462 86465 86466A
Part # Description Qty Price
86460 - SENSOR ASSY, LANE RECOGNITION CAMERA
86460-B1050

M900,910..CTMG,G

 1
86460-B1020

M900..TBO

 1
86462 - CAMERA, OBJECT RECOGNITION
8646C-B1020

M900..TBO

 1
8646C-B1050

M900,910..CTMG,G

 1
86465 - BRACKET, LANE RECOGNITION
87241-B2150

M900,910..CTMG,G

 1
87241-B2090

M900..TBO

 1
86466A - COVER, LANE RECOGNITION, NO.1
86466-B1060C0

M900,910..CTMG,G

BLACK,TRIM1#

 1
86466-B1020C0

M900..TBO

BLACK,TRIM1#

 1
