M900A-AGBME (2016)
Toyota Tank/Roomy

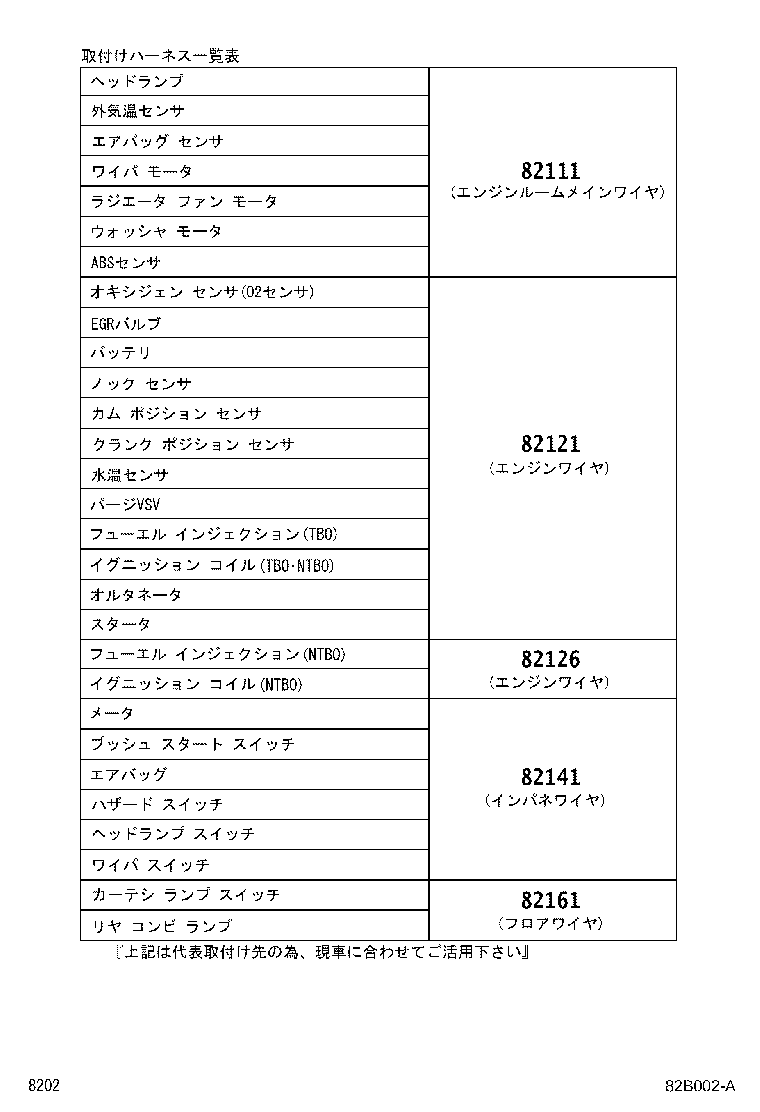

ILLUST NO. 1 OF 9(1611- )
ﾜｲﾔ ﾊｰﾈｽ ｲﾁﾗﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

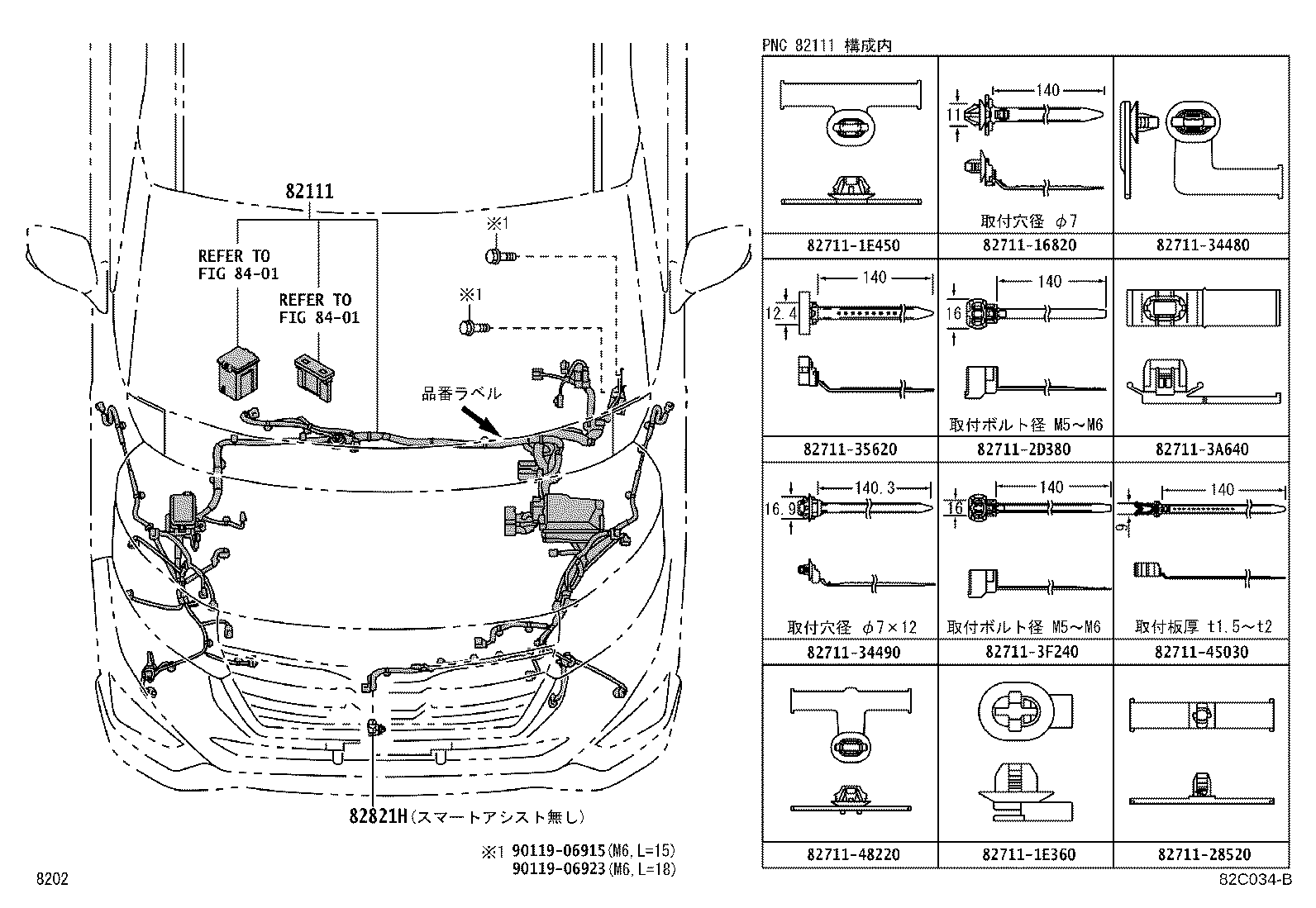

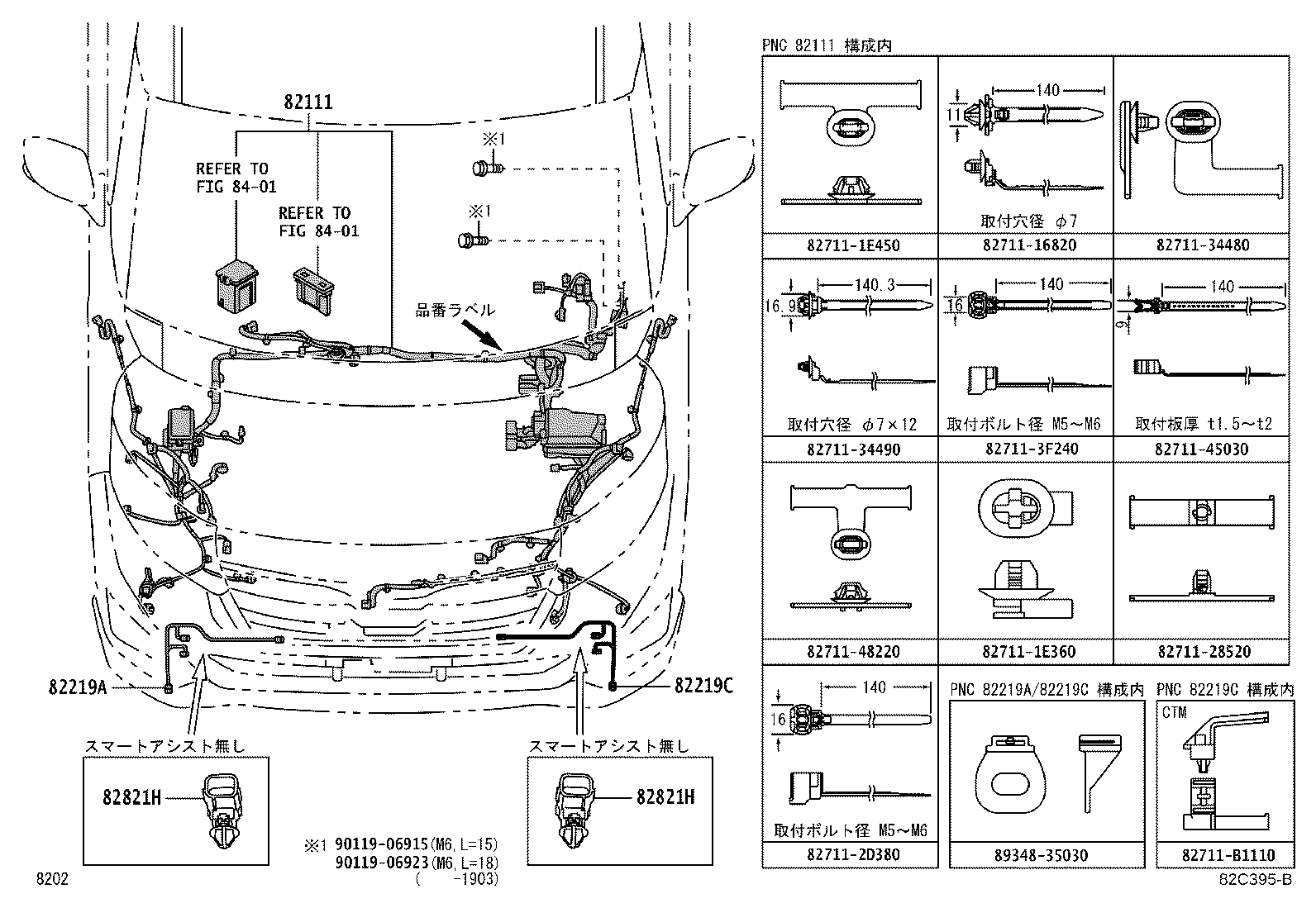

| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B1J10 |
M900,910..G..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J30 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO 寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J50 |
M900..G..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1D70 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1J60 |
M900..ROOMY..G..TBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J30 |
M900,910..X 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J00 |
M900,910..X 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G80 |
M900,910..G..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J90 |
M900..ROOMY..G..TBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1K00 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J80 |
M900..G..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO 寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||

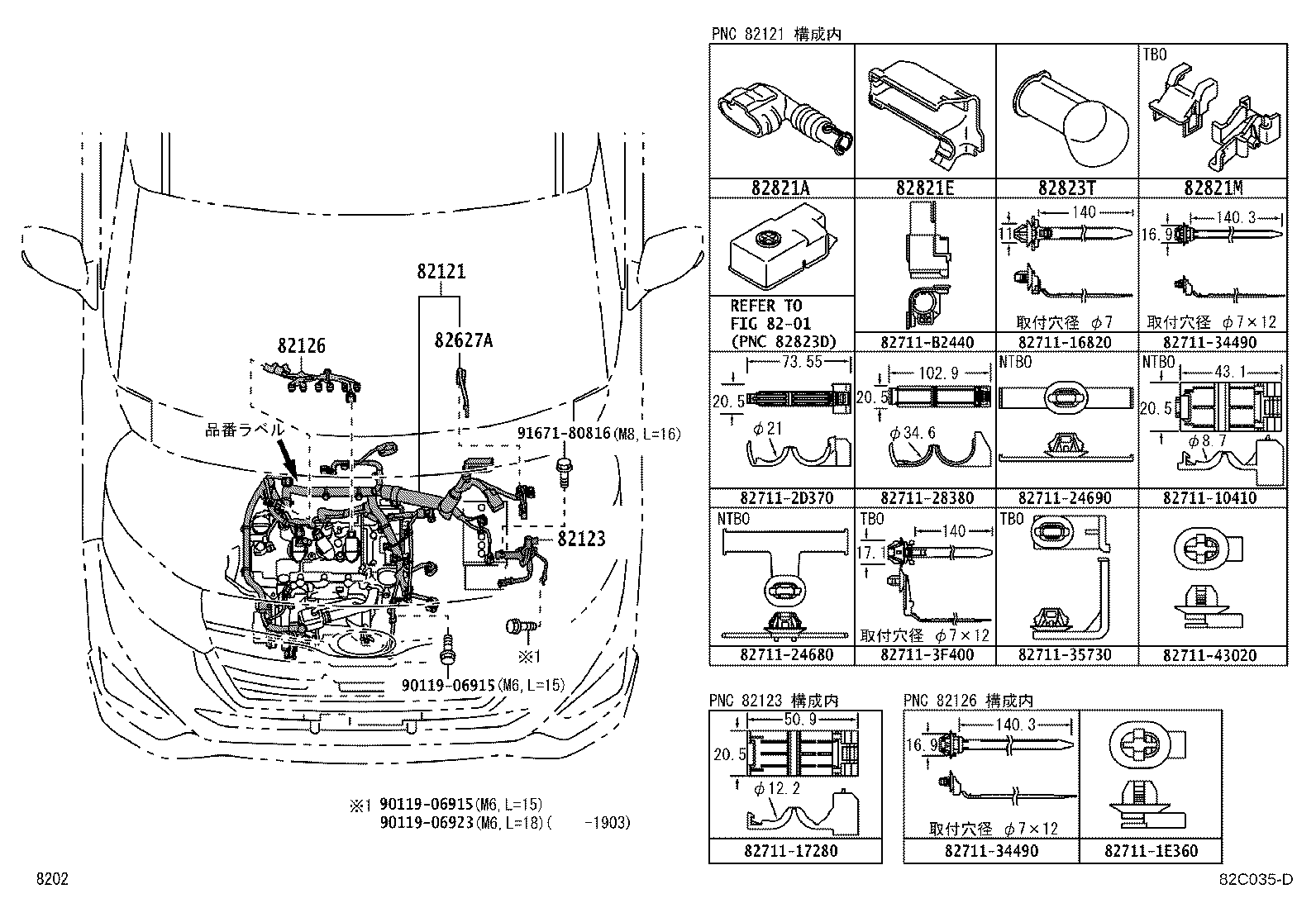

| 82121 - WIRE, ENGINE | ||||
| 82121-B1490 |
M900,910..NTBO |
1 | ||
| 82121-B1500 |
M900..TBO |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-B1010 |
M900,910..NTBO |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-B1K30 |
M900,910..X ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K30 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K30 |
M900,910..G,X |
1 | ||
| 82141-B1K40 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..X ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K50 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様 |
1 | ||
| 82141-B1K50 |
M900,910 寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ |
1 | ||
| 82141-B1K40 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K40 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J10 |
M900,910..G,X |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J20 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J20 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82141-B1J20 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910 寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1J20 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1J90 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様 |
1 | ||

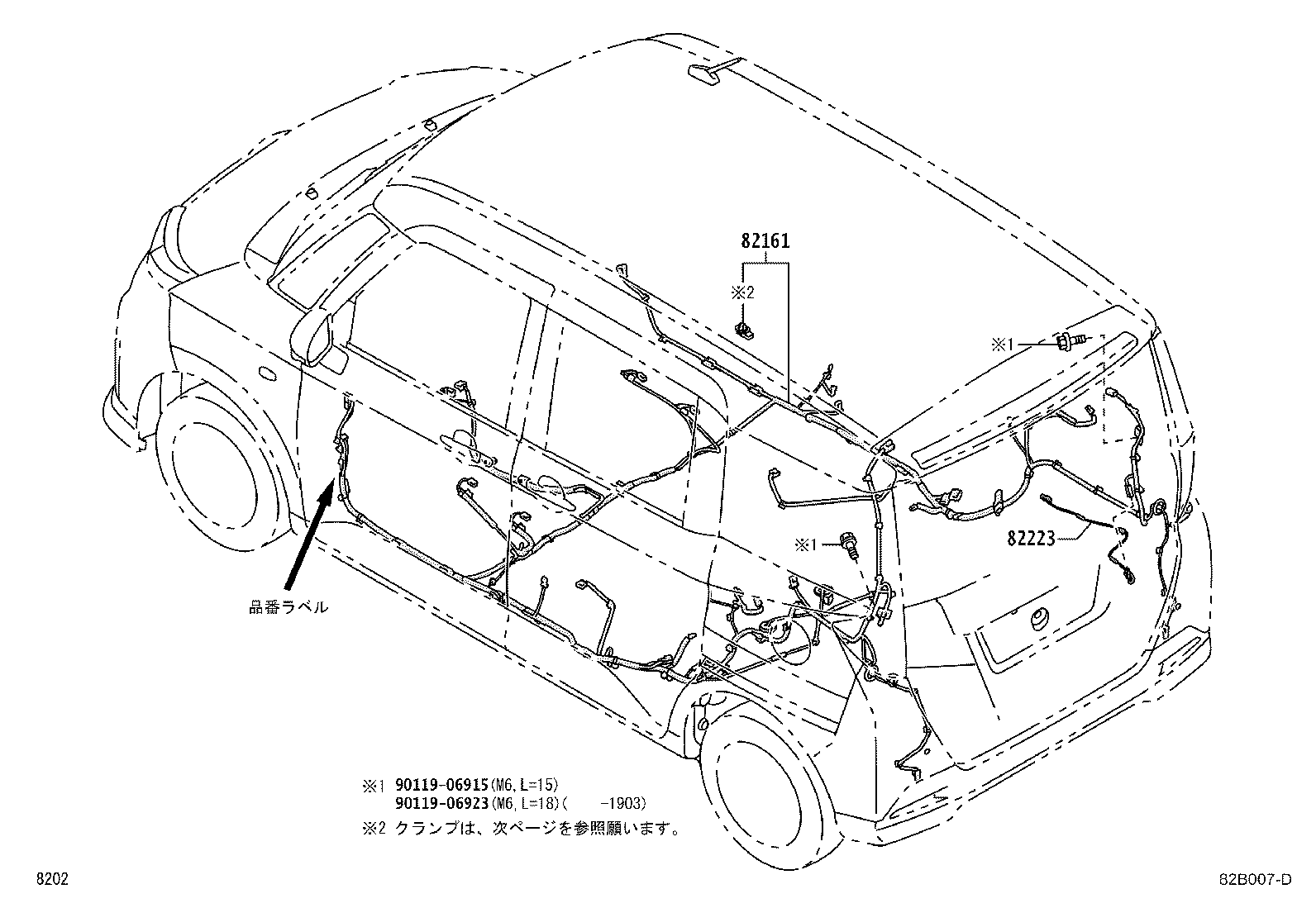

| 82161 - WIRE, FLOOR | ||||
| 82161-B1B30 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B50 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B30 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C70 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B70 |
M900,910..X SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| 82161-B1B50 |
M900,910..CTMG,G SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| 82161-B1C80 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B60 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C80 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C90 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C70 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C70 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C80 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C60 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1D00 |
M900,910..X SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| 82161-B1C80 |
M900,910..CTMG,G SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||

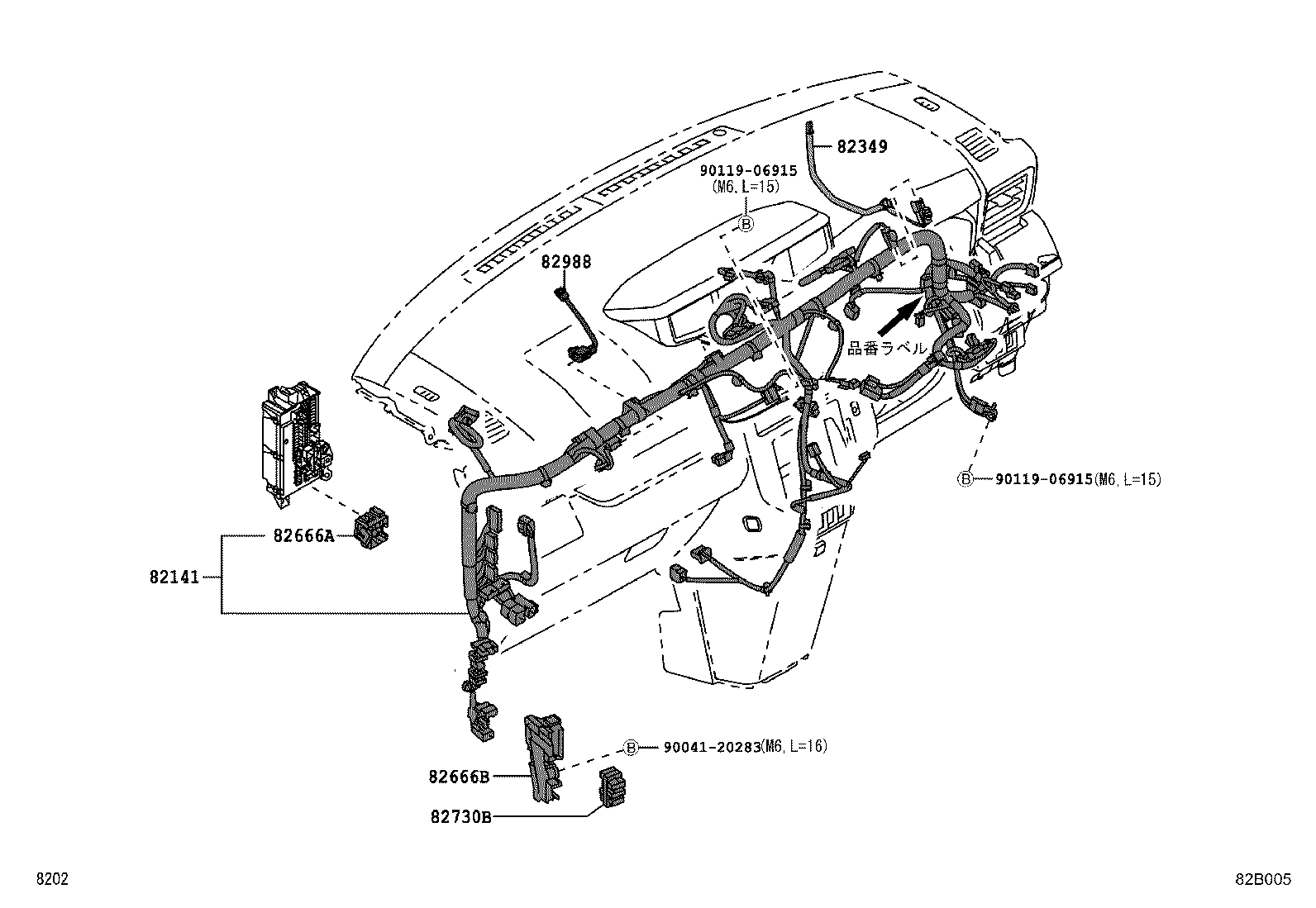

ILLUST NO. 4 OF 9(1611- )
ｲﾝﾊﾟﾈ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-B1K30 |
M900,910..X ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K30 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K30 |
M900,910..G,X |
1 | ||
| 82141-B1K40 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..X ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K50 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様 |
1 | ||
| 82141-B1K50 |
M900,910 寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ |
1 | ||
| 82141-B1K40 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K40 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J10 |
M900,910..G,X |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J20 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J20 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82141-B1J20 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1K60 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J60 |
M900,910 寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ |
1 | ||
| 82141-B1J20 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1J90 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ |
1 | ||
| 82141-B1J90 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様 |
1 | ||
| 82349 - WIRE, LIGHT CONTROL RHEOSTAT | ||||
| 88605-B1040 |
M900,910 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-B2180 |
M900,910 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-B2190 |
M900,910 |
1 | ||
| 82730B - BLOCK ASSY, PASSENGER SIDE JUNCTION | ||||
| 82730-B2170 |
M900,910 |
1 | ||
| 82988 - WIRE, AIR BAG REPAIR | ||||
| 89171-B1030 |
M900,910 |
1 | ||
| Common parts | ||||
| 90041-20283 | ||||
| 90119-06915 | ||||
ILLUST NO. 5 OF 9(1611- )
ﾄﾞｱ&ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-B1470 |
M900,910..G,X |
1 | ||
| 82151-B1490 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82151-B1490 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-B1390 |
M900,910..G,X |
1 | ||
| 82152-B1410 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ |
1 | ||
| 82152-B1410 |
M900,910..G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-B1011 |
M900,910..CTMG,G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82053-B1020 |
M900,910..X |
1 | ||
| 82053-B1010 |
M900,910..CTMG,G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-B1010 |
M900,910 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82054-B1011 |
M900,910 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-B1270 |
M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU”,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171-B1250 |
M900,910..(CTMG,G)..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171-B1250 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171-B1270 |
M900..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171-B1340 |
M900,910..CTMG,G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82171-B1340 |
M900,910..X ”ｽﾏｰﾄｱｼｽﾄV”,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-B1250 |
M900,910 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-B1050 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ |
1 | ||
| 82185-B1050 |
M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ |
1 | ||
| 82185-B1060 |
M900,910 |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-B2100 |
M900,910 |
1 | ||
| 82312 - WIRE, STEP LAMP | ||||
| 82351-B1010 |
M900,910..X 左側 |
1 | ||
| 82351-B1010 |
M900,910..CTMG,G 右側 & 左側 |
2 | ||
| 82312 - WIRE, STEP LAMP | ||||
| 82351-B1010 |
M900,910..X 左側 |
1 | ||
| 82351-B1010 |
M900,910..CTMG,G 右側 & 左側 |
2 | ||
| Common parts | ||||
| 46791-B2020 | ||||
| 91631-60616 | ||||
ILLUST NO. 6 OF 9(1611- )
ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-B1B30 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B50 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B30 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B40 |
M900,910..G..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ&ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C70 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B70 |
M900,910..X SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| 82161-B1B50 |
M900,910..CTMG,G SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| 82161-B1C80 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B60 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C80 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C90 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C70 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C70 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1B50 |
M900,910..G ｲﾙﾐﾈｰｼｮﾝﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C80 |
M900,910..G ｺﾝﾌｫｰﾀﾌﾞﾙ ﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1C60 |
M900,910..G 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82161-B1D00 |
M900,910..X SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| 82161-B1C80 |
M900,910..CTMG,G SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席),品番ﾗﾍﾞﾙLり |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
ILLUST NO. 7 OF 9(1611-2009)

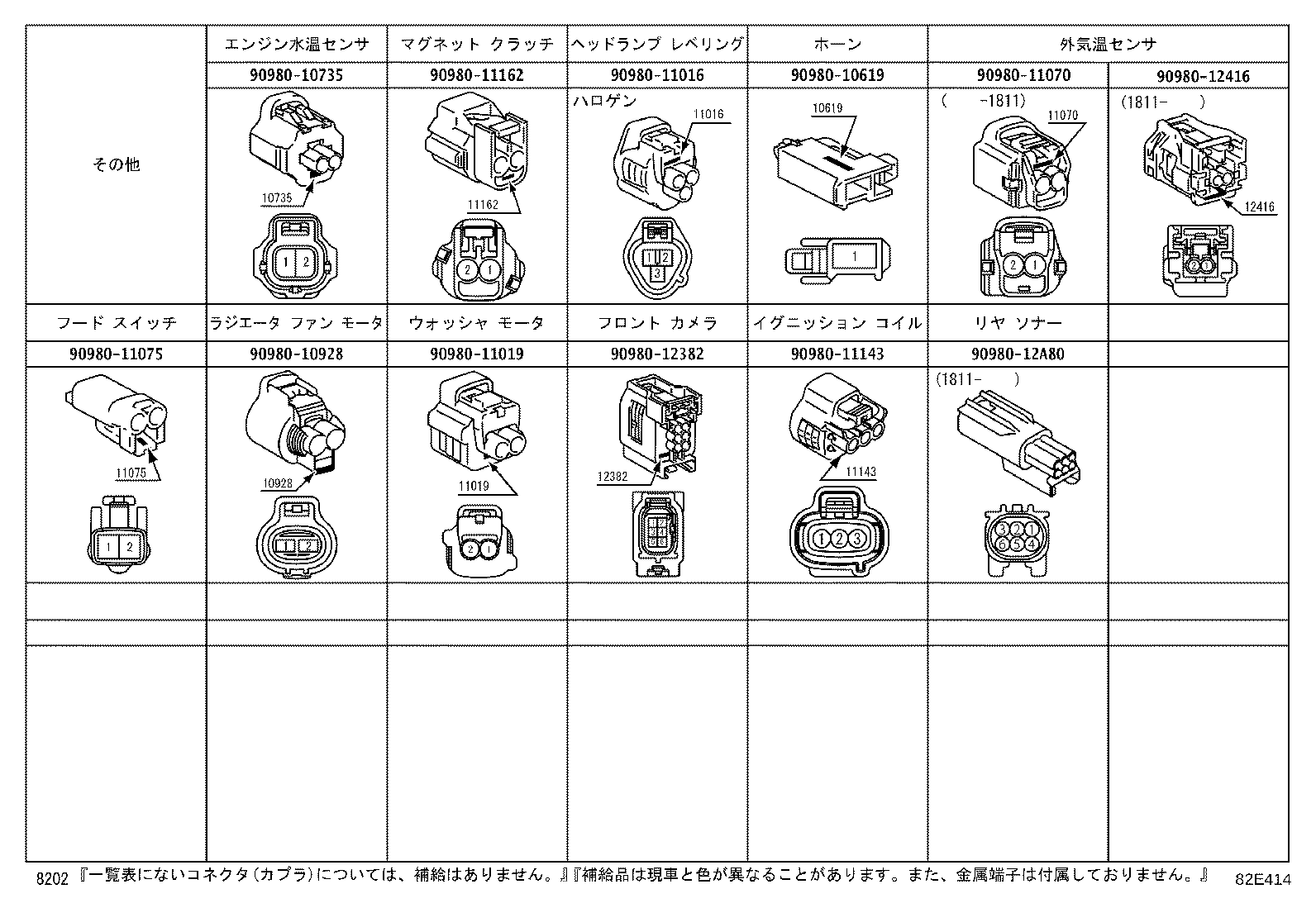

ｺﾈｸﾀ NO.1
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-B2060 | ||||
| 90980-10897 | ||||
| 90980-10988 | ||||
| 90980-11002 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-12520 | ||||
ILLUST NO. 8 OF 9(1803- )G,X..NTBO
ｳｪﾙｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537J - PROTECTOR, FRONT SEAT CUSHION EDGE NO.1 | ||||
| 71537-28060 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ |
4 | ||
| 71537-28060 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納 |
4 | ||
| 71537K - PROTECTOR, FRONT SEAT CUSHION EDGE NO.2 | ||||
| 71537-28060 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納 |
6 | ||
| 71537K - PROTECTOR, FRONT SEAT CUSHION EDGE NO.2 | ||||
| 71537-28060 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納 |
6 | ||
| C8214 - WIRE, POWER LIFT MOTOR | ||||
| C8212-D1260 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
| C8212-D1270 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納 |
1 | ||
| C8231 - WIRE, TECS FRAME | ||||
| C8231-52010 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90464-00620 | ||||
| C6565-18020 | ||||

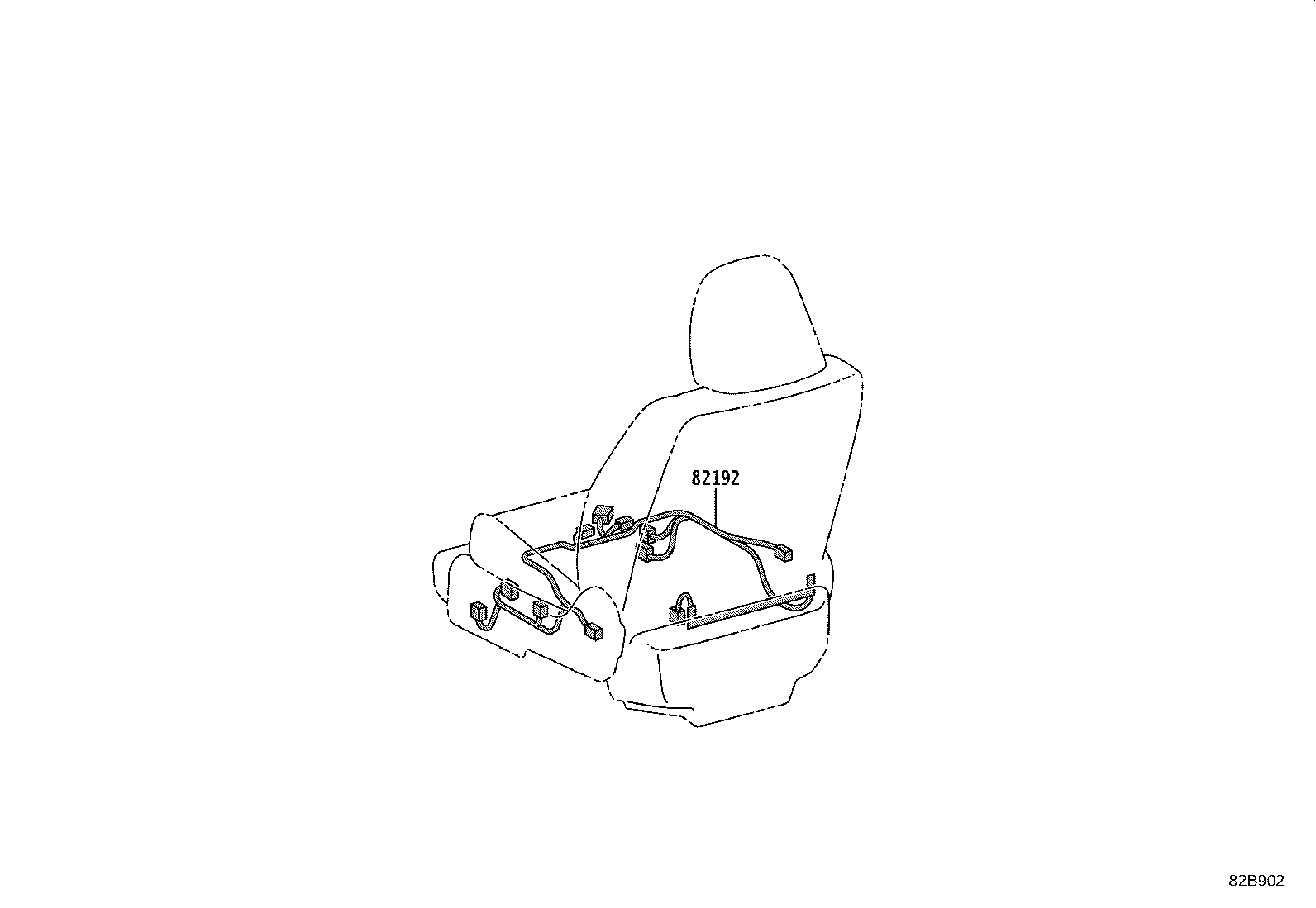

ILLUST NO. 9 OF 9(1803- )G,X..NTBO
ｳｪﾙｷｬﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-28230 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納 |
1 | ||
| 82192-28230 |
M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ |
1 | ||
ILLUST NO. 2 OF 9(1611-1811)
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B1J10 |
M900,910..G..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J30 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO 寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J50 |
M900..G..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1D70 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1J60 |
M900..ROOMY..G..TBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J30 |
M900,910..X 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J00 |
M900,910..X 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G80 |
M900,910..G..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J90 |
M900..ROOMY..G..TBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1K00 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J80 |
M900..G..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO 寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-B2070 |
M900,910..X |
2 | ||
| 82821-B2070 |
M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU” |
1 | ||
| 82821-B2070 |
M900,910..NTBO |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-1E360 | ||||
| 82711-1E450 | ||||
| 82711-28520 | ||||
| 82711-2D380 | ||||
| 82711-34480 | ||||
| 82711-34490 | ||||
| 82711-35620 | ||||
| 82711-3A640 | ||||
| 82711-3F240 | ||||
| 82711-45030 | ||||
| 82711-48220 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 9(1611-2009)
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-B1490 |
M900,910..NTBO |
1 | ||
| 82121-B1500 |
M900..TBO |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-B1110 |
M900,910 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-B1010 |
M900,910..NTBO |
1 | ||
| 82627A - WIRE, FUSIBLE LINK | ||||
| 82627-B1060 |
M900,910 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-B1040 |
M900..TBO |
1 | ||
| 82821-60100 |
M900,910..NTBO |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-B1020 |
M900,910 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-B1050 |
M900..TBO |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
M900,910 |
1 | ||
| Common parts | ||||
| 82711-10410 | ||||
| 82711-16820 | ||||
| 82711-17280 | ||||
| 82711-1E360 | ||||
| 82711-24680 | ||||
| 82711-24690 | ||||
| 82711-28380 | ||||
| 82711-2D370 | ||||
| 82711-34490 | ||||
| 82711-35730 | ||||
| 82711-3F400 | ||||
| 82711-43020 | ||||
| 82711-B2440 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 2 OF 9(1811-2009)
ｴﾝｼﾞﾝ ﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-B1J10 |
M900,910..G..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J30 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO 寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J20 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J50 |
M900..G..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1D70 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J40 |
M900,910..ROOMY..G..NTBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1J60 |
M900..ROOMY..G..TBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1G90 |
M900,910..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J30 |
M900,910..X 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J00 |
M900,910..X 寒冷地仕様,品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1G80 |
M900,910..G..NTBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J90 |
M900..ROOMY..G..TBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番宴xﾙ有り |
1 | ||
| 82111-B1K00 |
M900,910..X 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J80 |
M900..G..TBO 品番ﾗﾍﾞﾙ有り |
1 | ||
| 82111-B1J70 |
M900,910..ROOMY..G..NTBO 寒冷地仕様&LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付),品番ﾗﾍﾞﾙ有り |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-B1170 |
M900,910..X ”ｽﾏｰﾄｱｼｽﾄV”&LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き) |
1 | ||
| 82219-B1290 |
M900,910..G |
1 | ||
| 82219-B1170 |
M900,910..G LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き) |
1 | ||
| 82219-B1290 |
M900,910..X ”ｽﾏｰﾄｱｼｽﾄV” |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-B1180 |
M900,910..ROOMY..X ”ｽﾏｰﾄｱｼｽﾄV”&LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き) |
1 | ||
| 82219-B1300 |
M900,910..ROOMY..X ”ｽﾏｰﾄｱｼｽﾄV” |
1 | ||
| 82219-B1180 |
M900,910..ROOMY..G LEDﾌｫｸﾞﾗﾝﾌﾟ(LEDｲﾙﾐﾈｰｼｮﾝﾗﾝﾌﾟ付き) |
1 | ||
| 82219-B1300 |
M900,910..ROOMY..G |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-B2070 |
M900,910..X |
2 | ||
| 82821-B2070 |
M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU” |
1 | ||
| 82821-B2070 |
M900,910..NTBO |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-B2070 |
M900,910..X |
2 | ||
| 82821-B2070 |
M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU” |
1 | ||
| 82821-B2070 |
M900,910..NTBO |
1 | ||
| Common parts | ||||
| 82711-16820 | ||||
| 82711-1E360 | ||||
| 82711-1E450 | ||||
| 82711-28520 | ||||
| 82711-2D380 | ||||
| 82711-34480 | ||||
| 82711-34490 | ||||
| 82711-3F240 | ||||
| 82711-45030 | ||||
| 82711-48220 | ||||
| 82711-B1110 | ||||
| 89348-35030 | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 9(1611- )
ﾌﾛｱ(ｸﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A830 | ||||
| 82711-1E320 | ||||
| 82711-1E360 | ||||
| 82711-34490 | ||||
| 82711-3F400 | ||||
| 82711-48200 | ||||
| 82711-48210 | ||||
| 82711-48220 | ||||
| 82711-B1010 | ||||
ILLUST NO. 7 OF 9(1611-2009)
ｺﾈｸﾀ NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10735 | ||||
| 90980-10928 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11075 | ||||
| 90980-11143 | ||||
| 90980-11162 | ||||
| 90980-12382 | ||||
| 90980-12416 | ||||
| 90980-12A80 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
