Toyota Tank/roomy M900A CAUTION PLATE (EXTERIOR & INTERIOR)

Manufacturers Home
Toyota
JP
TANK/ROOMY
M900A-AGBME (2016)
7403 - CAUTION PLATE (EXTERIOR & INTERIOR)

M900A-AGBME (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020

Engine 1KRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

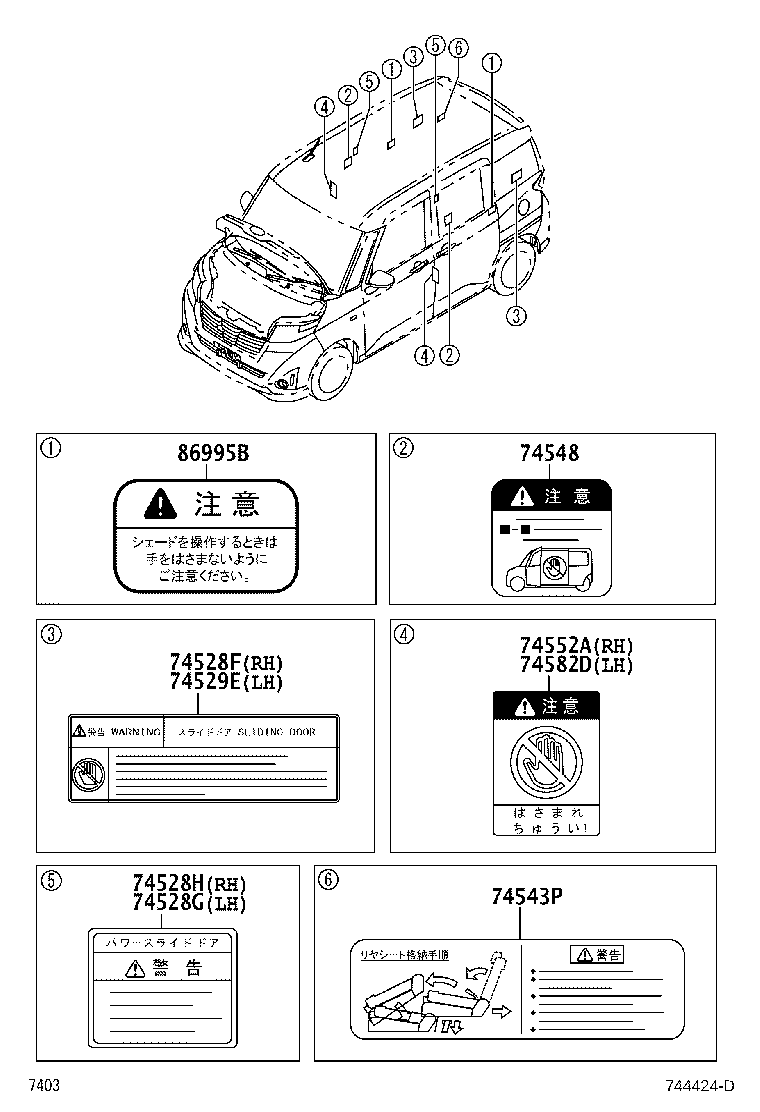

ILLUST NO. 2 OF 9(1611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
74528F - LABEL, DOOR CLOSER CAUTION, RH
74528-B1010	M900,910	11/2016 - 09/2020	1
74528G - LABEL, POWER SLIDE DOOR CAUTION
74541-B1010	M900,910	11/2016 - 09/2020	1
74528H - LABEL, POWER SLIDE DOOR CAUTION
74541-B1010	M900,910..CTMG,G	11/2016 - 09/2020	1
74529E - LABEL, DOOR CLOSER CAUTION, LH
74528-B1010	M900,910	11/2016 - 09/2020	1
74543P - LABEL, REAR SEAT CAUTION
74543-B1040	M900,910	11/2016 - 09/2020	1
74548 - PLATE, BODY CAUTION
74541-B1020	M900,910	11/2016 - 09/2020	2
74552A - LABEL, SAFETY CAUTION
74541-B1030	M900,910	11/2016 - 09/2020	1
74582D - LABEL, SAFETY CAUTION
74541-B1030	M900,910	11/2016 - 09/2020	1
86995B - PLATE, CAUTION
86995-B2070	M900,910	11/2016 - 09/2020	2

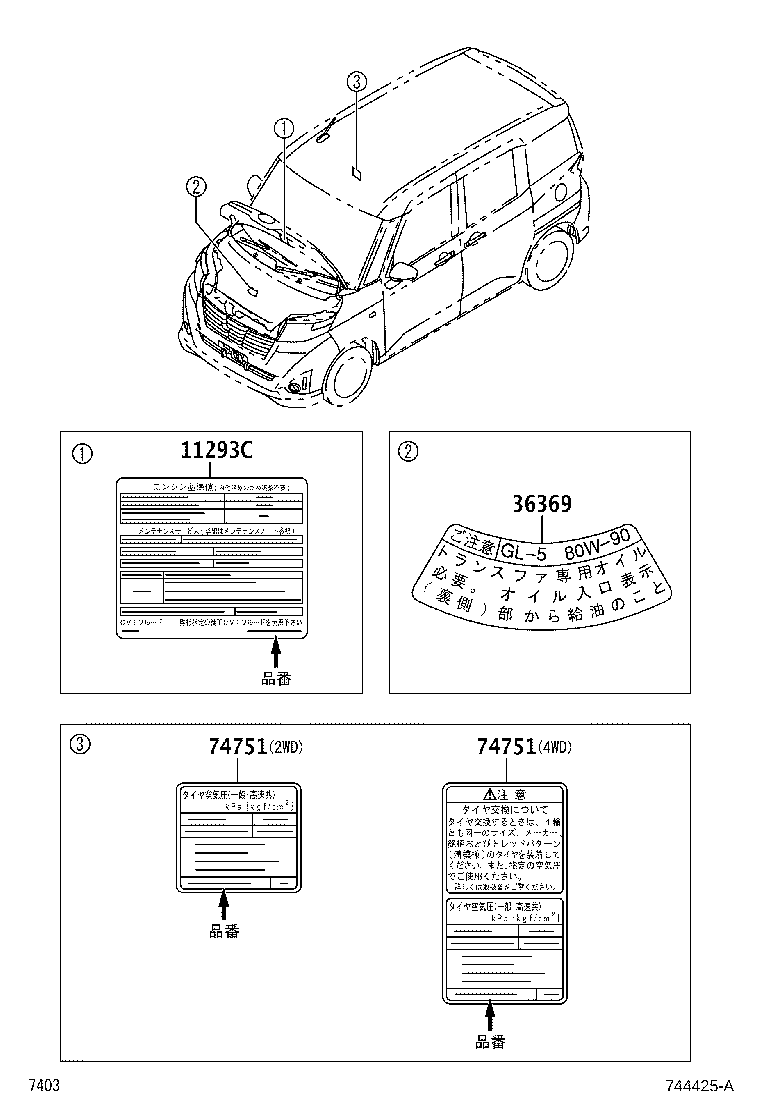

ILLUST NO. 3 OF 9(1611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
11293C - LABEL, TUNE-UP SPECIFICATION INFORMATION
11293-B1350	1KRFE..M900,910 品番記載有り	11/2016 - 09/2020	1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-B1520	M900..G..TBO 175/55R15 5J−ｱﾙﾐﾎｨｰﾙ	11/2016 - 09/2020	1
42661-B1510	M900..G..TBO 175/55R15 5J−ｱﾙﾐﾎｨｰﾙ&ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)	11/2016 - 09/2020	1
42661-B1540	M900..NTBO;M900..G..TBO	11/2016 - 09/2020	1
42661-B1530	M900..NTBO;M900..G..TBO ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)	11/2016 - 09/2020	1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-B1520	M900..G..TBO 175/55R15 5J−ｱﾙﾐﾎｨｰﾙ	11/2016 - 09/2020	1
42661-B1510	M900..G..TBO 175/55R15 5J−ｱﾙﾐﾎｨｰﾙ&ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)	11/2016 - 09/2020	1
42661-B1540	M900..NTBO;M900..G..TBO	11/2016 - 09/2020	1
42661-B1530	M900..NTBO;M900..G..TBO ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)	11/2016 - 09/2020	1

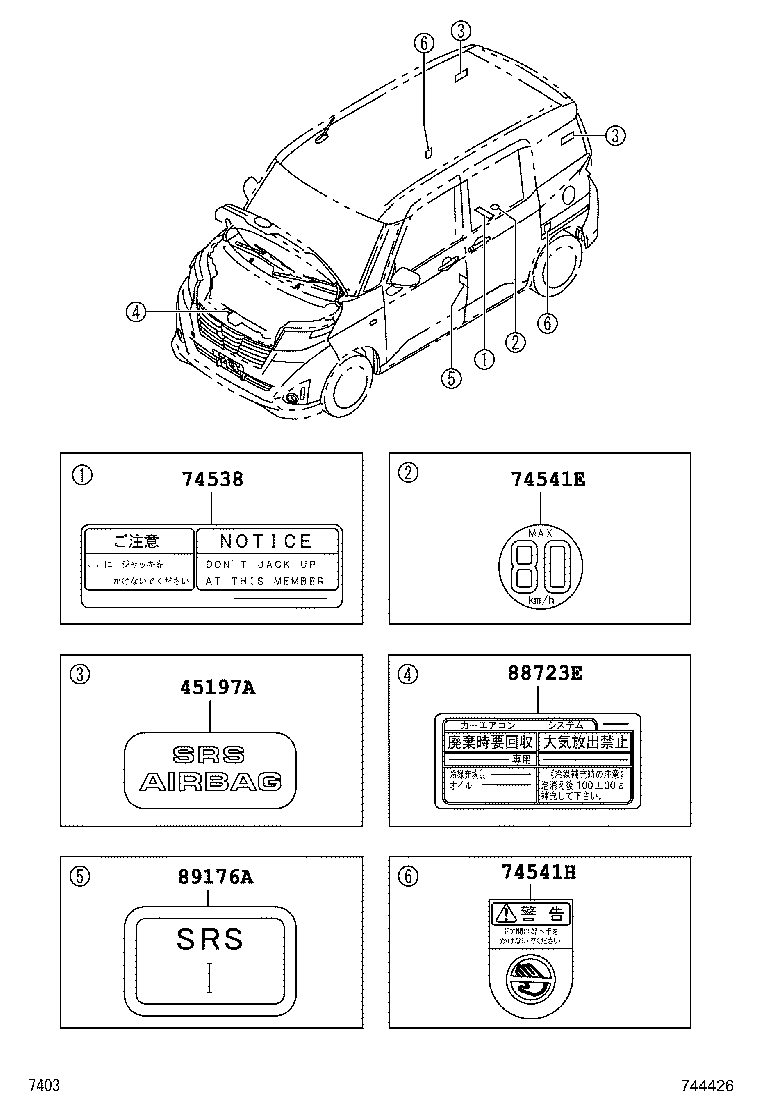

ILLUST NO. 4 OF 9(1611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
45197A - LABEL, AIR BAG CAUTION
74597-B1020	M900,910 SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席)	11/2016 - 09/2020	2
74538 - PLATE, JACK CARRIER CAUTION
74509-97202	M900	11/2016 - 09/2020	1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-87707	M900,910 ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)	11/2016 - 09/2020	1
74541H - PLATE, BODY CAUTION
74541-B2060	M900,910	11/2016 - 09/2020	2
88723E - LABEL, COOLER SERVICE CAUTION
88733-B1040	M900,910	11/2016 - 09/2020	1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-B2010	M900,910	11/2016 - 09/2020	1

ILLUST NO. 5 OF 9(1611-2009)

Click highlighted areas on diagram

Part #	Description	Period	Qty
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-B2010	M900,910	11/2016 - 04/2018	1
74528D - LABEL, POWER SLIDE DOOR NOTICE
85628-B2030	M900,910	11/2016 - 09/2020	1
86995E - LABEL, CAUTION
86995-B2100	M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU”,識別記号 = B	11/2016 - 11/2018	1
86995-B2120	M900,910..CTMG,G 識別記号 = H	11/2018 - 09/2020	1
86995-B2100	M900..TBO 識別記号 = B	11/2016 - 11/2018	1
86995-B2120	M900,910..X ”ｽﾏｰﾄｱｼｽﾄV”,識別記号 = H	11/2018 - 09/2020	1
89616 - LABEL, PUSH START INFORMATION
89616-B2020	M900,910	11/2016 - 05/2018	1

ILLUST NO. 7 OF 9(1611-2009)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2330	M900..TBO ﾀｲﾌﾟ A	04/2017 - 03/2019	1
75459-B2330	M900..TBO	11/2016 - 04/2017	1
75459-B2330	M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU”	11/2016 - 04/2017	1
75459-B2330	M900,910..NTBO ﾀｲﾌﾟ A	11/2016 - 03/2019	1
75459-B1050	M900,910 ﾀｲﾌﾟ B	04/2019 - 09/2020	1
74561A - LABEL, FUEL CONSUMPTION INFORMATION
75459-B2330	M900..TBO ﾀｲﾌﾟ A	04/2017 - 03/2019	1
75459-B2330	M900..TBO	11/2016 - 04/2017	1
75459-B2330	M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU”	11/2016 - 04/2017	1
75459-B2330	M900,910..NTBO ﾀｲﾌﾟ A	11/2016 - 03/2019	1
75459-B1050	M900,910 ﾀｲﾌﾟ B	04/2019 - 09/2020	1
74562B - LABEL, EMISSION INFORMATION
75459-B2040	M900,910	11/2016 - 09/2020	1
C6112A - LABEL, SAFETY INFORMATION
C6112-D1211	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
75459-B2310	M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU”	11/2016 - 04/2017	1
C6112-D1211	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1
75459-B2310	M900..TBO	11/2016 - 04/2017	1

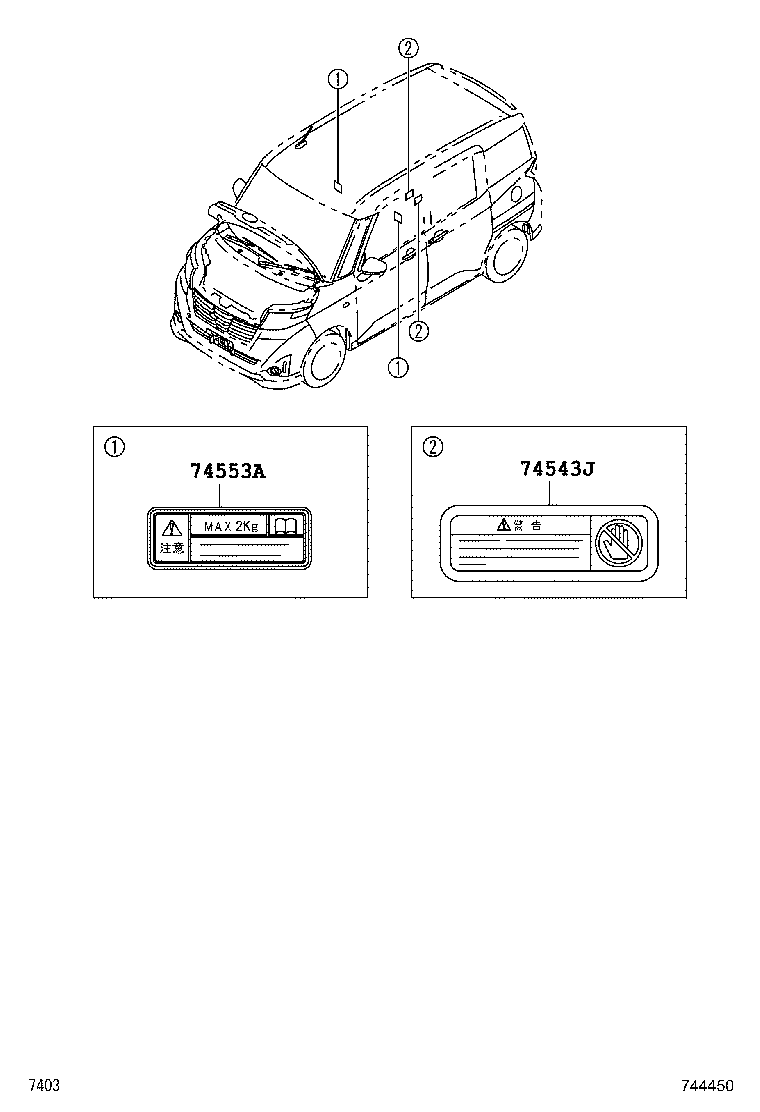

ILLUST NO. 6 OF 9(1611-2009)

Click highlighted areas on diagram

Part #	Description	Period	Qty
74543J - LABEL, REAR SEAT CAUTION
74543-B1050	M900,910	11/2016 - 09/2020	2
74553A - PLATE, FRONT SEAT CAUTION
74553-B1030	M900,910..CTMG,G ｺﾝﾌｫｰﾀﾌﾞﾙﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席)	11/2016 - 09/2020	2
74553-B1030	M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙﾊﾟｯｸ&ｼｰﾄﾋｰﾀｰ(運転席+助手席)	11/2016 - 09/2020	2
74553-B1030	M900,910..X ｺﾝﾌｫｰﾀﾌﾞﾙﾊﾟｯｸ&ｼｰﾄﾋｰﾀｰ(運転席+助手席)&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席)	11/2016 - 09/2020	2
74553-B1030	M900,910..G..NTBO G”ﾘﾐﾃｯﾄﾞ”&ｺﾝﾌｫｰﾀﾌﾞﾙﾊﾟｯｸ&SRSｴｱﾊﾞｯｸﾞ−(運転席+助手席)ｻｲﾄﾞ&ｶｰﾃﾝｼｰﾙﾄﾞ(前後席)	11/2018 - 09/2020	2
74553-B1030	M900,910..G..NTBO G”ﾘﾐﾃｯﾄﾞ”&ｺﾝﾌｫｰﾀﾌﾞﾙﾊﾟｯｸ	11/2018 - 09/2020	2
74553-B1030	M900,910..CTMG,G ｺﾝﾌｫｰﾀﾌﾞﾙﾊﾟｯｸ	11/2016 - 09/2020	2

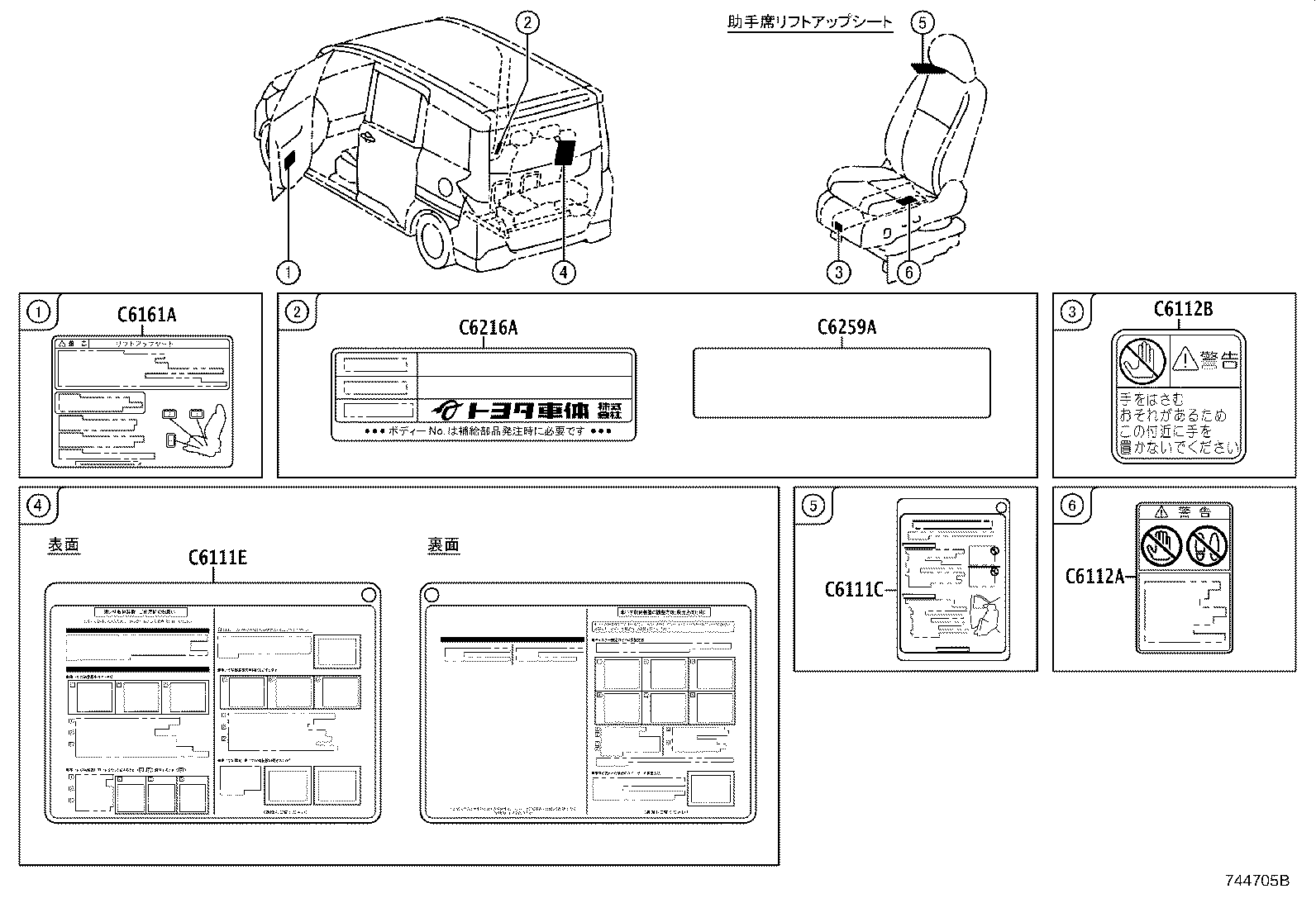

ILLUST NO. 8 OF 9(1803- )G,X..NTBO

Click highlighted areas on diagram

ｳｪﾙｷｬﾌﾞ

Part #	Description	Period	Qty
C6111C - PLATE, TECS SAFETY CAUTION, NO.1
C6111-D1490	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6111-D1490	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1
C6111E - PLATE, TECS SAFETY CAUTION, NO.2
C6111-D1480	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6112A - LABEL, SAFETY INFORMATION
C6112-D1211	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
75459-B2310	M900,910..NTBO ”ｽﾏｰﾄｱｼｽﾄU”	11/2016 - 04/2017	1
C6112-D1211	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1
75459-B2310	M900..TBO	11/2016 - 04/2017	1
C6112B - LABEL, SAFETY INFORMATION, NO.2
C6112-28020	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6112-28020	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1
C6161A - LABEL, POWER LIFT CAUTION
C6161-D1720	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1
C6161-D1720	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6216A - PLATE, IDENTIFICATION NUMBER
C6216-D3020	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1
C6216-D3020	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6259A - FILM, BODY NUMBER LABEL
C6259-44010	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6259-44010	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞ A P席ﾘﾌﾄｱｯﾌﾟ	03/2018 - 09/2020	1

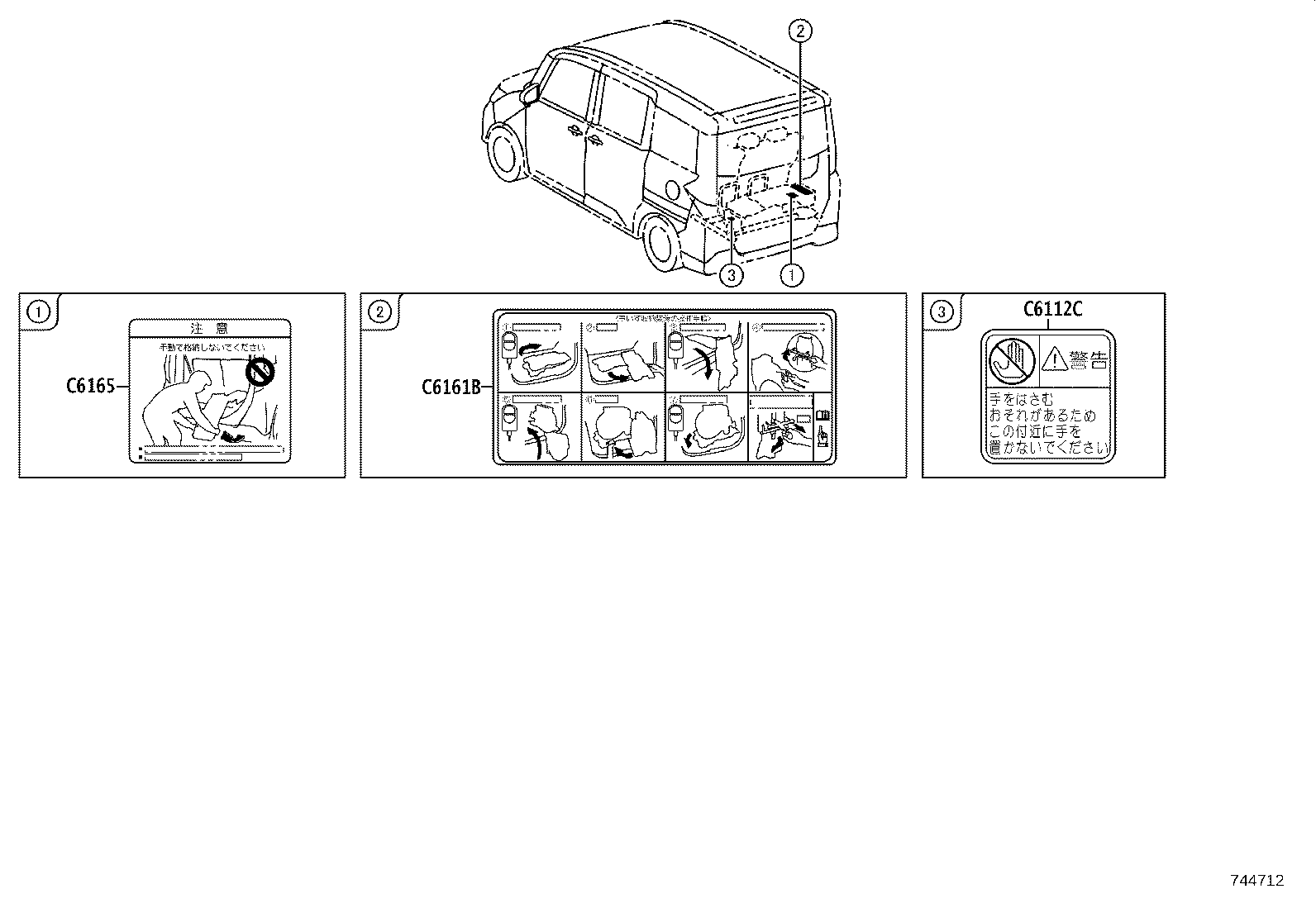

ILLUST NO. 9 OF 9(1803- )G,X..NTBO

Click highlighted areas on diagram

ｳｪﾙｷｬﾌﾞ

Part #	Description	Period	Qty
C6112C - LABEL, SAFETY INFORMATION, NO.3
C6112-28020	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6161B - LABEL, POWER LIFT INFORMATION
C6161-D1760	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1
C6165 - LABEL, POWER LIFT NOTICE
C6165-D1130	M900,910..(G,X)..NTBO ｳｪﾙｷｬﾌﾞB P席+車椅子収納	03/2018 - 09/2020	1

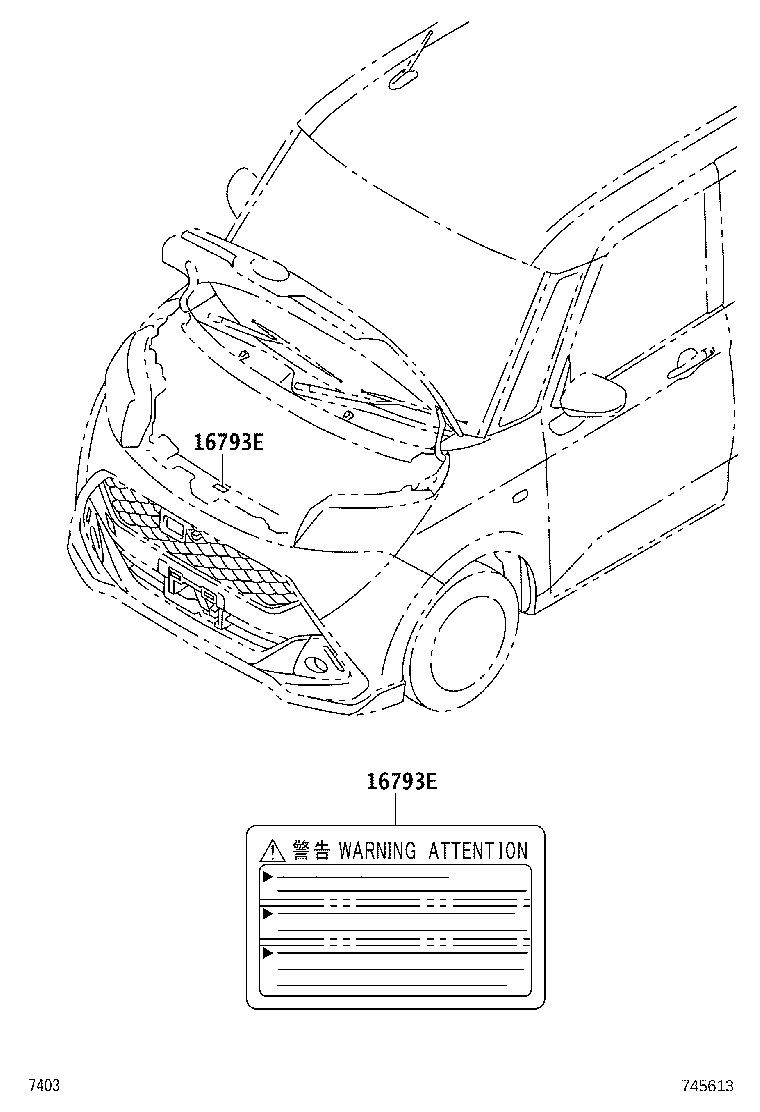

ILLUST NO. 1 OF 9(1611- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
16793E - LABEL, COOLING FAN CAUTION
41991-B2010	1KR#..M900,910	11/2016 - 09/2020	1
16793E - LABEL, COOLING FAN CAUTION
41991-B2010	1KR#..M900,910	11/2016 - 09/2020	1
