M900A-AGBME (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )

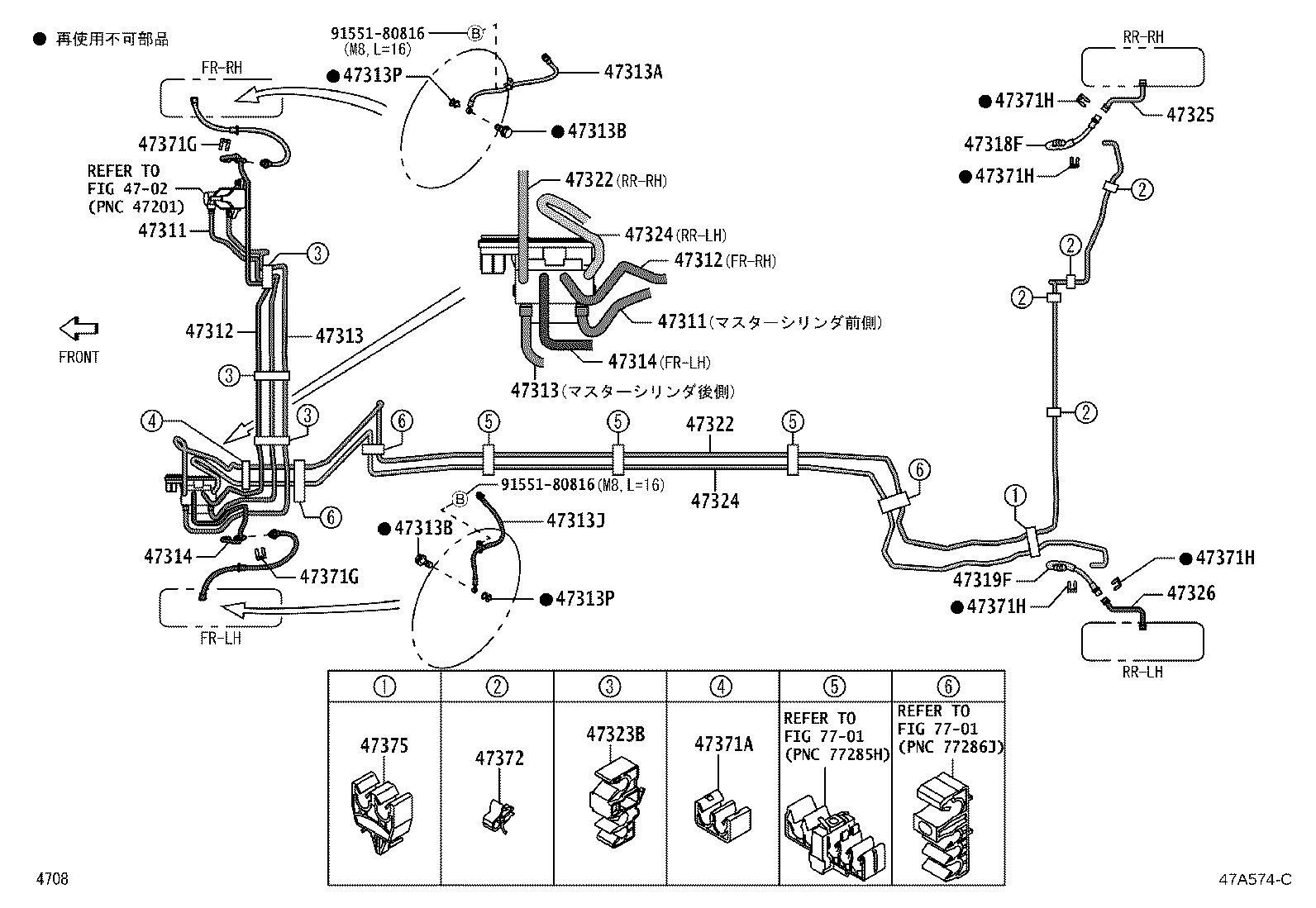

Click highlighted areas on diagram
ﾊｲｶﾝｽﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B1280 |
M900,910 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-B1280 |
M900,910 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B1180 |
M900,910 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-B1180 |
M900,910 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B1280 |
M900,910 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-B1280 |
M900,910 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90049-22289 |
M900,910 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
M900,910 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
M900,910 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90049-22290 |
M900,910 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
M900,910 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
M900,910 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B1150 |
M900,910 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-B1150 |
M900,910 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90049-22193 |
M900 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90049-22193 |
M900 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B1220 |
M900 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-B1220 |
M900 |
1 | ||
| 47323B - TUBE, REAR BRAKE, NO.3 | ||||
| 90044-64892 |
M900,910 |
3 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B1240 |
M900 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-B1240 |
M900 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-B1030 |
M900 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-B1030 |
M900 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00904 |
M900,910 |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
M900,910 |
2 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90044-65441 |
M900,910 |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
M900,910 |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
M900,910 |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
M900,910 |
4 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90044-65441 |
M900,910 |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90044-64889 |
M900,910 |
4 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47372-B1020 |
M900,910 |
1 | ||
| Common parts | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

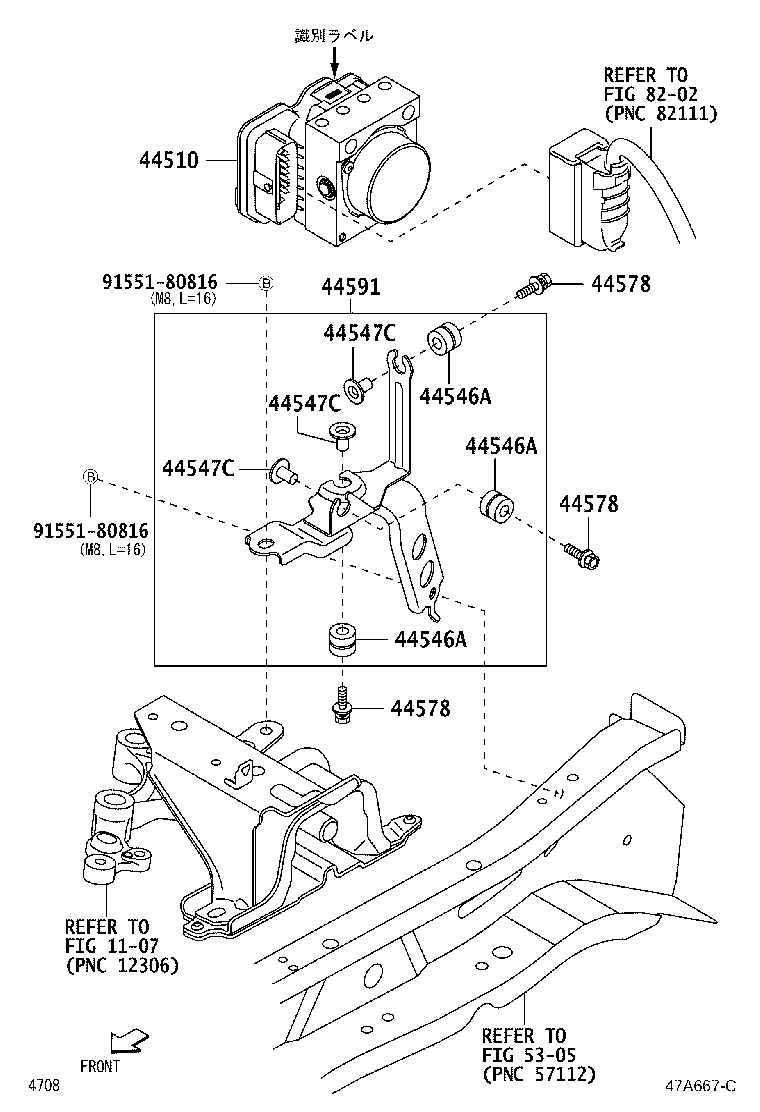

(1611- )
Click highlighted areas on diagram
ｱｸﾁｭｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-B1430 |
M900 ﾏｰｸ=WGX |
1 | ||
| 44050-B1450 |
M900 ﾏｰｸ=WGE |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
M900,910 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
M900,910 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
M900,910 |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 44521-B1010 |
M900,910 |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 44521-B1010 |
M900,910 |
3 | ||
| 44547C - SPACER(FOR BRAKE ACTUATOR BRACKET) | ||||
| 44521-B1010 |
M900,910 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 90119-06834 |
M900,910 M6,L=25 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 90119-06834 |
M900,910 M6,L=25 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 90119-06834 |
M900,910 M6,L=25 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-B1110 |
M900,910 |
1 | ||
| Common parts | ||||
| 91551-80816 | ||||
| Linked diagrams | ||||
| 1107 | ||||
| 5305 | ||||
| 8202 | ||||
