M900A-AGBME (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-2009)

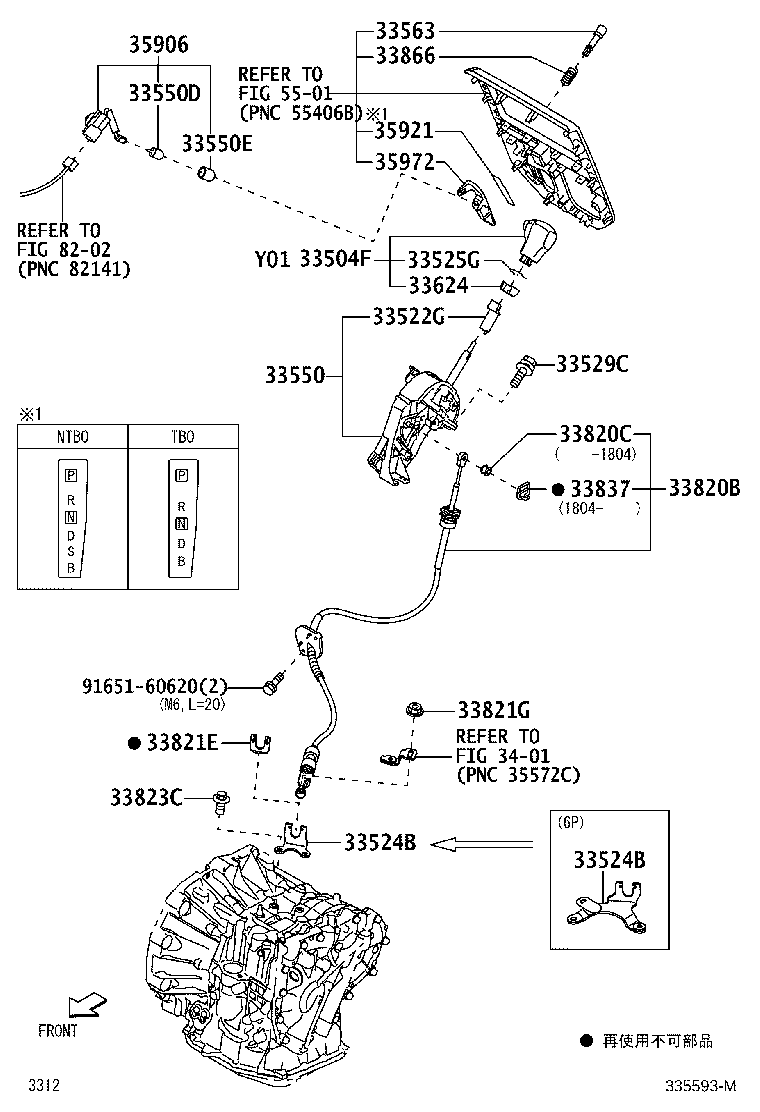

Click highlighted areas on diagram

diagram 33504F 33522G 33524B 33524B 33525G 33529C 33550 33550D 33550E 33563 33624 33820B 33820C 33821E 33821G 33823C 33837 33866 3401 35906 35921 35972 5501 8202 9165160620
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-B2180C1

M900,910..G

BLACK,TRIM1#

 1
33504-B2170C1

M900,910..X

BLACK,TRIM1#

 1
33522G - COVER, SHIFT LEVER HOUSING DUST
33522-B2010

M900,910

 1
33524B - BRACKET, CONTROL CABLE
33524-B1030

M900,910..NTBO

 1
335A0-B1010

M900..TBO

 1
33524B - BRACKET, CONTROL CABLE
33524-B1030

M900,910..NTBO

 1
335A0-B1010

M900..TBO

 1
33525G - RING, SHIFT LEVER
33525-B2010

M900,910

 1
33529C - BOLT, SHIFT LEVER
91671-80830

M900,910

M8,L=30

 3
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-B2700C1

M900,910..NTBO

BLACK,TRIM1#

 1
33550-B2701C1

M900,910..NTBO

BLACK,TRIM1#

 1
33550-B1202C1

M900..TBO

BLACK,TRIM1#

 1
33550-B2702C1

M900,910..NTBO

BLACK,TRIM1#

 1
33550-B1200C1

M900..TBO

BLACK,TRIM1#

 1
33550-B2703C1

M900,910..NTBO

BLACK,TRIM1#

 1
33550-B1203C1

M900..TBO

BLACK,TRIM1#

 1
33550-B1201C1

M900..TBO

BLACK,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
35955-B2040

M900,910

 1
33550E - CAP, POSITION INDICATOR LAMP
35956-B2060

M900,910

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-B2010

M900,910

 1
33624 - HOLDER, KNOB COVER
33551-B2011

M900,910

 1
33551-B2012

M900,910

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-B1162

M900,910..NTBO

 1
33820-B1161

M900,910..NTBO

 1
33820-B1152

M900..TBO

 1
33820-B1160

M900,910..NTBO

 1
33820-B1150

M900..TBO

 1
33820-B1151

M900..TBO

 1
33820C - BUSH (FOR TRANSMISSION CONTROL CABLE)
33835-B1010

M900,910

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33567-B1010

M900,910

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90179-06274

M900,910

 1
90041-79348

M900,910

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90041-05491

M900,910

M8,L=23

 2
90041-05418

M900,910

M8,L=23

 2
33837 - CLIP, TRANSMISSION CONTROL CABLE ADJUST
33837-B2010

M900,910

 1
33866 - SPRING, SHIFT LOCK RELEASE
33866-B2010

M900,910

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
82285-B2030

M900,910

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-B1010

M900..TBO

 1
35921-B1020

M900,910..NTBO

 1
35972 - COVER, POSITION INDICATOR HOUSING
55534-B1010

M900,910

 1
Common parts
91651-60620
Linked diagrams
3401
5501
8202
