M900A-AGBME (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )1KRFE

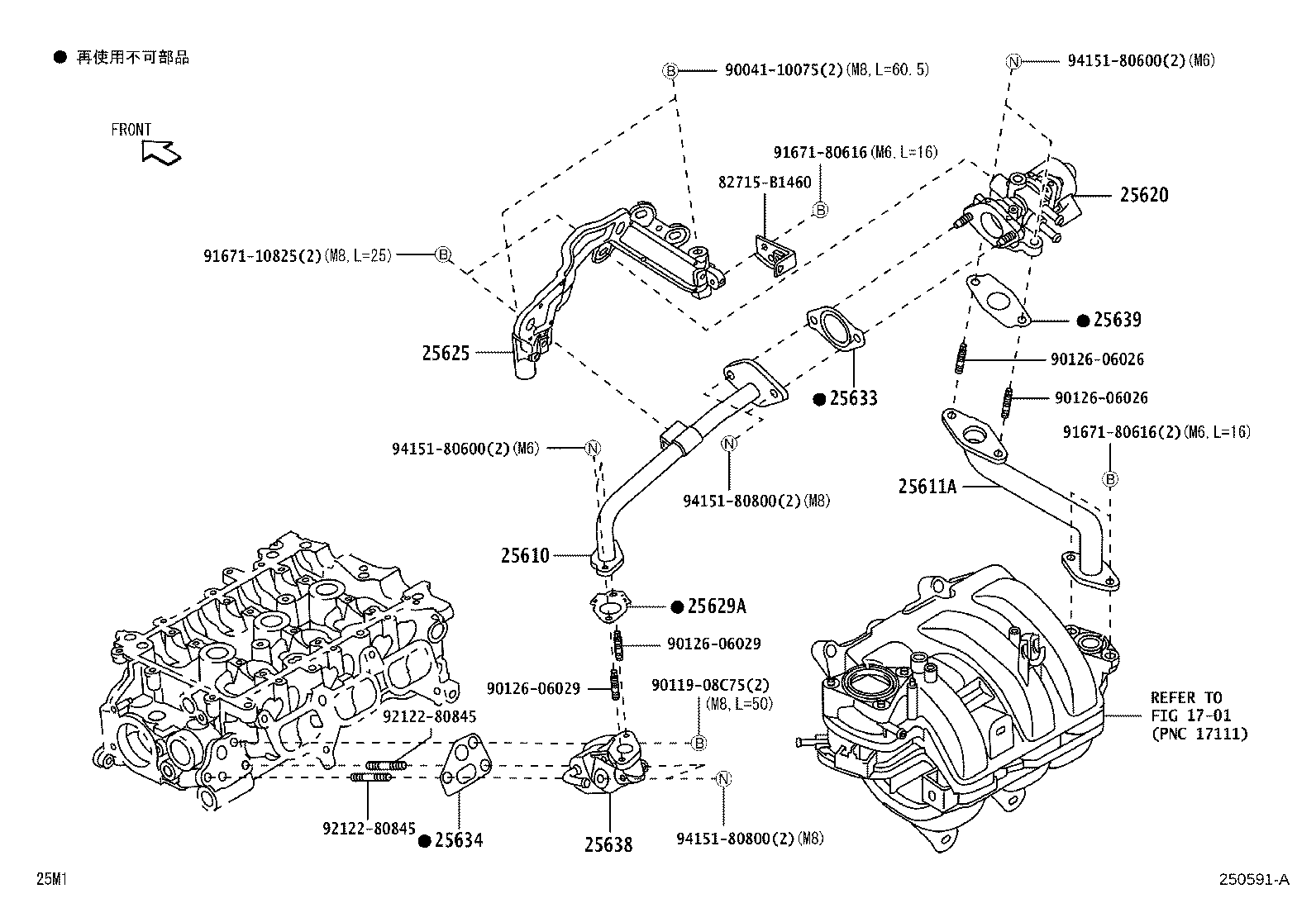

Click highlighted areas on diagram

diagram 1701 25610 25611A 25620 25625 25629A 25633 25634 25638 25639 82715B1460 9004110075 9011908C75 9012606026 9012606026 9012606029 9012606029 9167110825 9167180616 9167180616 9212280845 9212280845 9415180600 9415180600 9415180800 9415180800
Part # Description Qty Price
25610 - PIPE ASSY, EGR
25610-B1010

1KRFE..M900,910

 1
25611A - PIPE, EGR, NO.1
25611-B1011

1KRFE..M900,910

 1
25620 - VALVE ASSY, EGR
25620-B1020

1KRFE..M900,910

 1
25620-B1021

1KRFE..M900,910

 1
25625 - BRACKET, EGR VALVE
25625-B1010

1KRFE..M900,910

 1
25629A - GASKET, EGR PIPE, NO.2
25629-B1010

1KRFE..M900,910

 1
25633 - GASKET, EGR VALVE
25633-B1020

1KRFE..M900,910

 1
25634 - GASKET, EGR PIPE
25634-B1010

1KRFE..M900,910

 1
25638 - CHAMBER, EGR DELIVERY
25638-B1010

1KRFE..M900,910

 1
25639 - GASKET, EGR PIPE, NO.3
25639-B1010

1KRFE..M900,910

 1
Common parts
82715-B1460
90041-10075
90119-08C75
90126-06026
90126-06029
91671-10825
91671-80616
92122-80845
94151-80600
94151-80800
Linked diagrams
1701
