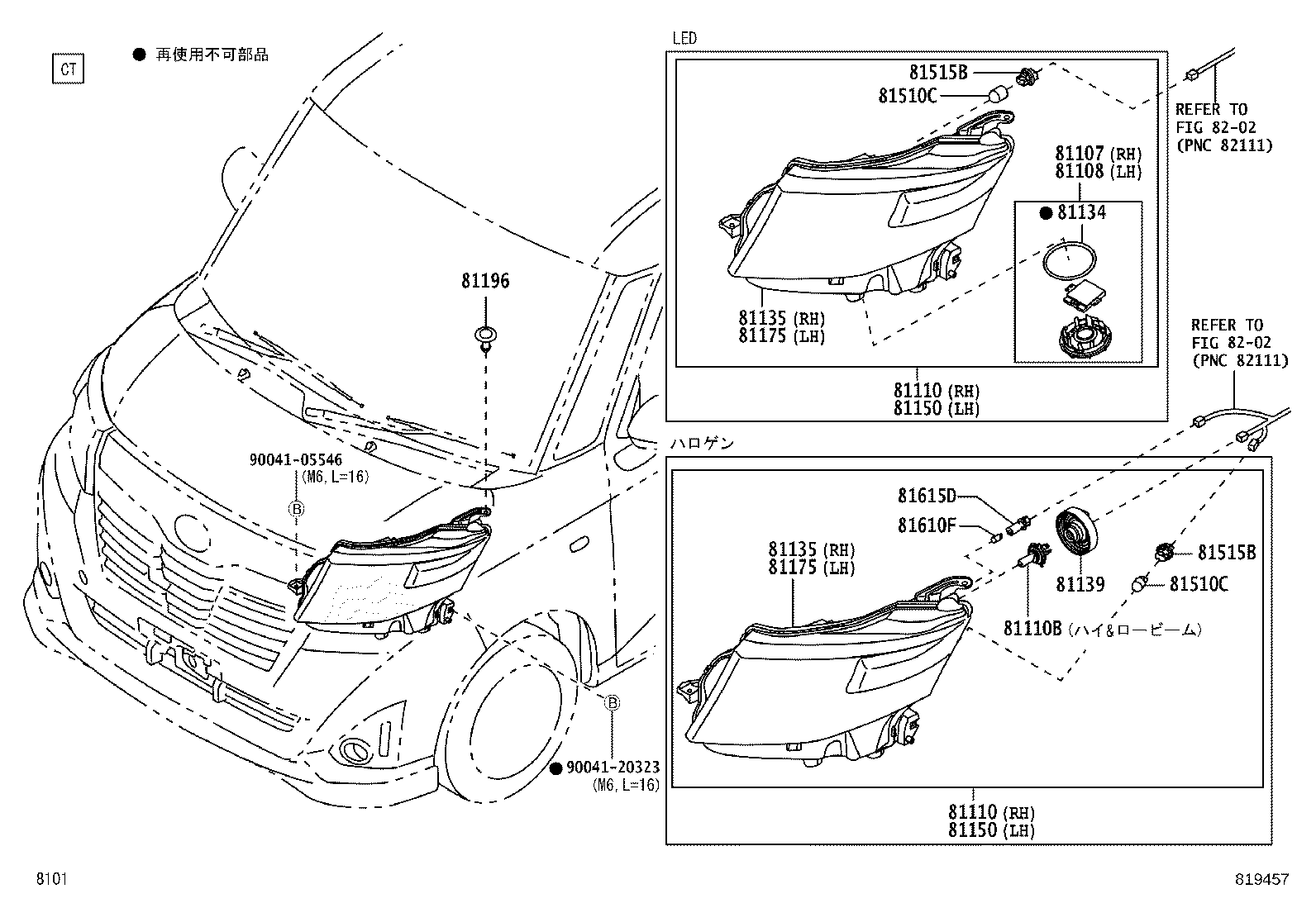

Toyota Tank/roomy M900A HEADLAMP

Part #	Description	Period	Qty
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
85967-B1010	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
85967-B1010	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81110 - HEADLAMP ASSY, RH
81110-B1580	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81110-B1570	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81110 - HEADLAMP ASSY, RH
81110-B1580	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81110-B1570	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81110B - BULB(FOR HEADLAMP, NO.1)
90049-51088	M900,910..G,X 12V 60/55W	11/2016 - 09/2020	2
GAITO-NASHI	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	2
81134 - GASKET, HEADLAMP
81134-B2070	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	2
81135 - UNIT ASSY, HEADLAMP, RH
81130-B1220	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81130-B1210	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81135 - UNIT ASSY, HEADLAMP, RH
81130-B1220	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81130-B1210	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81139 - COVER, HEADLAMP SOCKET
81139-B2030	M900,910..G,X	11/2016 - 09/2020	2
GAITO-NASHI	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	2
81150 - HEADLAMP ASSY, LH
81150-B1530	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81150-B1540	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81150 - HEADLAMP ASSY, LH
81150-B1530	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81150-B1540	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-B1210	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81170-B1220	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81175 - UNIT ASSY, HEADLAMP, LH
81170-B1210	M900,910..ROOMY..(G,X)	11/2016 - 09/2020	1
81170-B1220	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	1
81196 - RETAINER, HEADLAMP
90044-68320	M900,910	11/2016 - 07/2019	2
90044-68378	M900,910	08/2019 - 09/2020	2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51143	M900,910 12V 21W	11/2016 - 09/2020	2
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90049-51143	M900,910 12V 21W	11/2016 - 09/2020	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81945-B1010	M900,910	11/2016 - 09/2020	2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81945-B1010	M900,910	11/2016 - 09/2020	2
81610F - BULB(FOR CLEARANCE LAMP)
90049-51183	M900,910..G,X 12V 5W	11/2016 - 09/2020	2
GAITO-NASHI	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	2
81615D - SOCKET, CLEARANCE LAMP
GAITO-NASHI	M900,910..ROOMY..G LEDﾍｯﾄﾞﾗﾝﾌﾟ(ﾛｰ/ﾊｲ/ｵｰﾄﾚﾍﾞﾘﾝｸﾞ機能/ｸﾘｱﾗﾝｽﾗﾝﾌﾟ付)	11/2016 - 09/2020	2
81125-B4010	M900,910..G,X	11/2016 - 09/2020	2
Common parts
90041-05546
90041-20323
Linked diagrams
8202

M900A-AGBGJ (2016)

(1611-2009)ROOMY
