M900A-AGBGJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-2009)

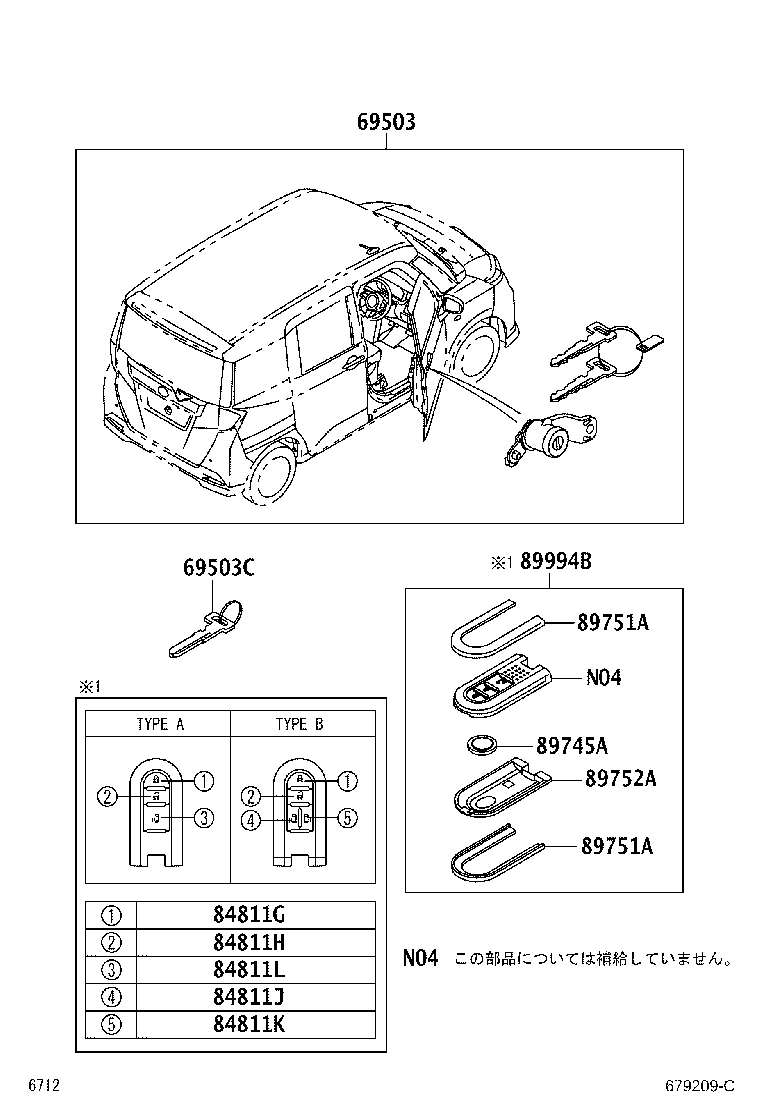

Click highlighted areas on diagram

diagram 69503 69503C 84811G 84811H 84811J 84811K 84811L 89745A 89751A 89751A 89752A 89994B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-B1610

M900,910

 1
69503C - KEY, SUB
69516-B2140

M900,910

 1
84811G - KNOB, SWITCH, NO.1
84811-B2010

M900,910

 1
84811H - KNOB, SWITCH, NO.2
84811-B2020

M900,910

 1
84811J - KNOB, SWITCH, NO.3
84811-B2030

M900,910..CTMG,G

 1
84811K - KNOB, SWITCH, NO.4
84811-B2040

M900,910..CTMG,G

 1
89745A - BATTERY, TRANSMITTER
89745-B2060

M900,910

CR2032

 1
89751A - COVER, TRANSMITTER HOUSING
89751-B2120

M900,910

 2
89751A - COVER, TRANSMITTER HOUSING
89751-B2120

M900,910

 2
89752A - CASE, TRANSMITTER HOUSING
89752-B1030

M900,910

 1
89994B - TRANSMITTER, ELECTRICAL KEY
89994-B2440

M900,910..CTMG,G

ﾀｲﾌﾟ B

 1
