M900A-AGBGJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

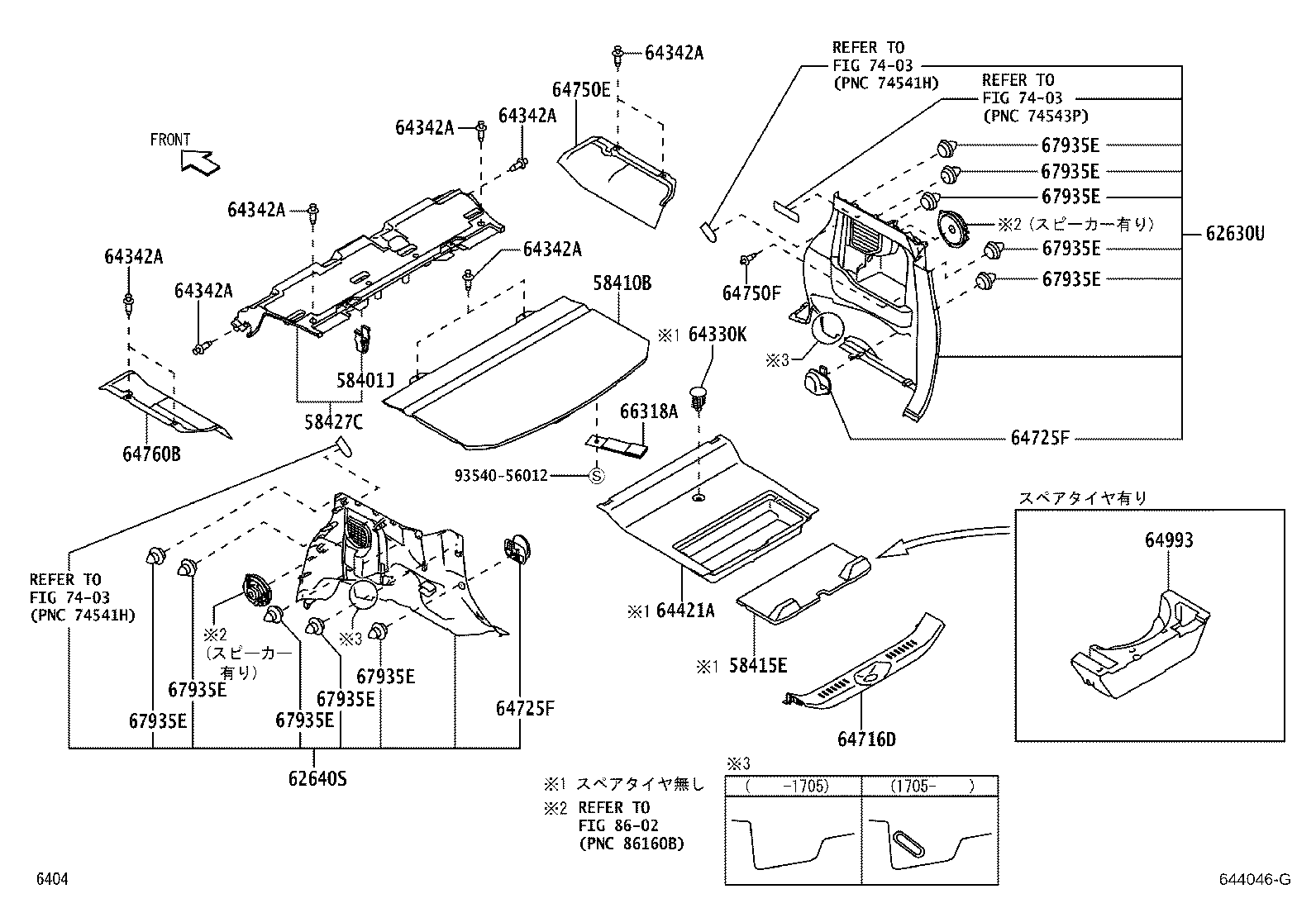

Click highlighted areas on diagram

diagram 58401J 58410B 58415E 58427C 62630U 62640S 64330K 64342A 64342A 64342A 64342A 64342A 64342A 64342A 64421A 64716D 64725F 64725F 64750E 64750F 64760B 64993 66318A 67935E 67935E 67935E 67935E 67935E 67935E 67935E 67935E 67935E 67935E 7403 7403 7403 8602 9354056012
Part # Description Qty Price
58401J - CLIP(FOR DECK BOAD)
90044-68306

M900,910

 1
58410B - BOARD ASSY, DECK
58410-B1140B1

M900,910

DK GRAY,TRIM1#,防汚ｼｰﾄ付き

 1
58410-B1140B0

M900,910

DK GRAY,TRIM1#,防汚ｼｰﾄ付き

 1
58410-B1150B0

M900,910

ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14),DK GRAY,TRIM1#

 1
58415E - BOARD, REAR FLOOR, NO.1
58415-B1051C0

M900,910

BLACK,TRIM1#

 1
58415-B1050C0

M900,910

BLACK,TRIM1#

 1
58427C - SPACER, REAR FLOOR BOARD
58427-B1050C0

M900,910

BLACK,TRIM1#

 1
62630U - PANEL ASSY, QUARTER TRIM, REAR RH
62630-B1131C1

M900,910..G

BLACK,TRIM1#

 1
62630-B1131C0

M900,910..G

BLACK,TRIM1#

 1
62630-B1130C0

M900,910..G

BLACK,TRIM1#

 1
62640S - PANEL ASSY, QUARTER TRIM, REAR LH
62640-B1140C0

M900,910..CTMG,G

BLACK,TRIM1#

 1
62640-B1141C0

M900,910..CTMG,G

BLACK,TRIM1#

 1
62640-B1141C1

M900,910..CTMG,G

BLACK,TRIM1#

 1
64330K - CLIP(FOR PACKAGE TRAY TRIM PANEL)
90044-67298C0

M900,910

BLACK,TRIM1#

 1
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64342A - CLIP
90044-67609C0

M900,910

BLACK,TRIM1#

 10
64421A - TRAY, LUGGAGE COMPARTMENT
64421-B1020C0

M900,910

BLACK,TRIM1#

 1
64716D - COVER, DECK TRIM, REAR
64716-B1080C0

M900,910

BLACK,TRIM1#

 1
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-B1010C0

M900,910

BLACK,TRIM1#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-B1010C0

M900,910

BLACK,TRIM1#

 2
64750E - CARPET SUB-ASSY, DECK TRIM SIDE, RH
58540-B1040B0

M900,910

DK GRAY,TRIM1#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90044-67204C1

M900,910

BLACK,TRIM1#

 1
64760B - CARPET SUB-ASSY, DECK TRIM SIDE, LH
58550-B1020B0

M900,910

DK GRAY,TRIM1#

 1
64993 - BOX, DECK FLOOR, REAR
64993-B1010C0

M900,910

ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14),BLACK,TRIM1#

 1
64993-B1010

M900,910

ﾃﾝﾊﾟｰﾀｲﾔ(T115−70D14)

 1
66318A - BAND, ROPE HOOK
66318-B1010

M900,910

 1
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
67935E - RETAINER, DOOR TRIM
67771-B2010

M900,910

 10
Common parts
93540-56012
Linked diagrams
7403
8602
