M900A-AGBGJ (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )TBO

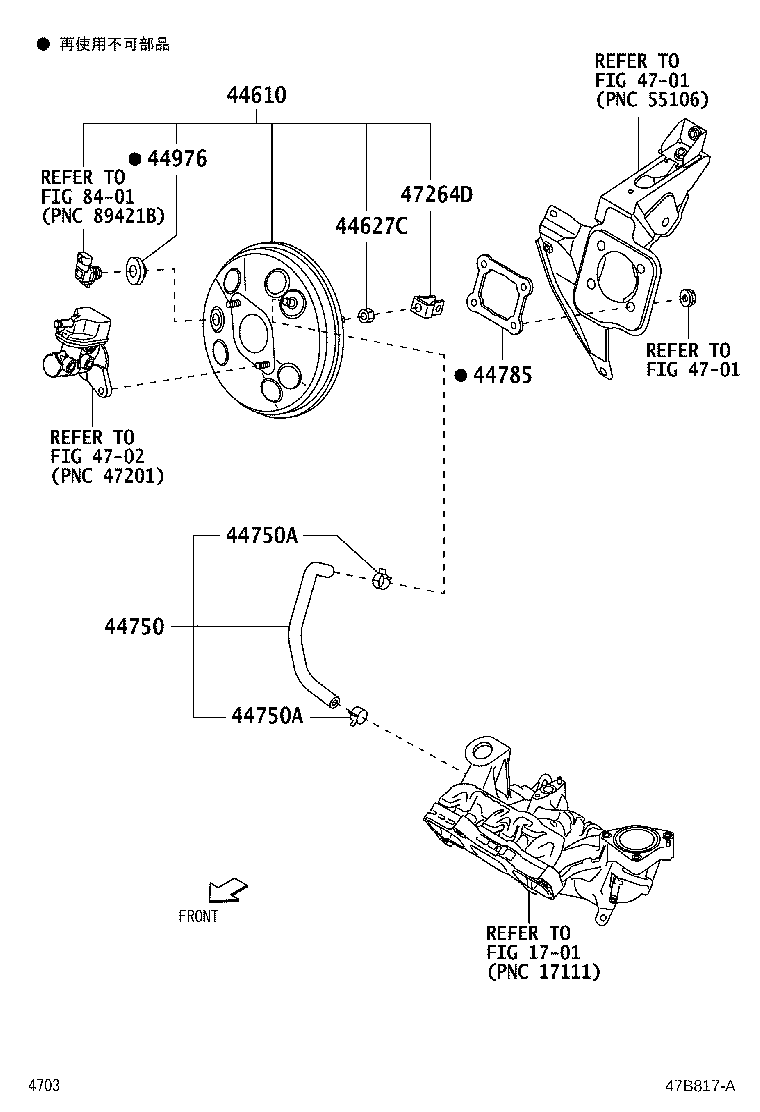

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-B1230 |
M900,910 |
1 | ||
| 44610-B1231 |
M900,910 |
1 | ||
| 44627C - NUT, BOOSTER SLEEVE CYLINDER | ||||
| 94130-01002 |
M900,910 |
1 | ||
| 44750 - HOSE ASSY, VACUUM | ||||
| 44750-B1140 |
M900..TBO |
1 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90044-67161 |
M900,910 |
2 | ||
| 44750A - CLIP(FOR VACUUM HOSE ASSY) | ||||
| 90044-67161 |
M900,910 |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 47278-87703 |
M900,910 |
1 | ||
| 44976 - SEAL, BOOSTER | ||||
| 44685-B2010 |
M900,910 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-B1010 |
M900,910 |
1 | ||
| Linked diagrams | ||||
| 1701 | ||||
| 4701 | ||||
| 4702 | ||||
| 8401 | ||||
