M900A-AGBGJ (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611-2009)

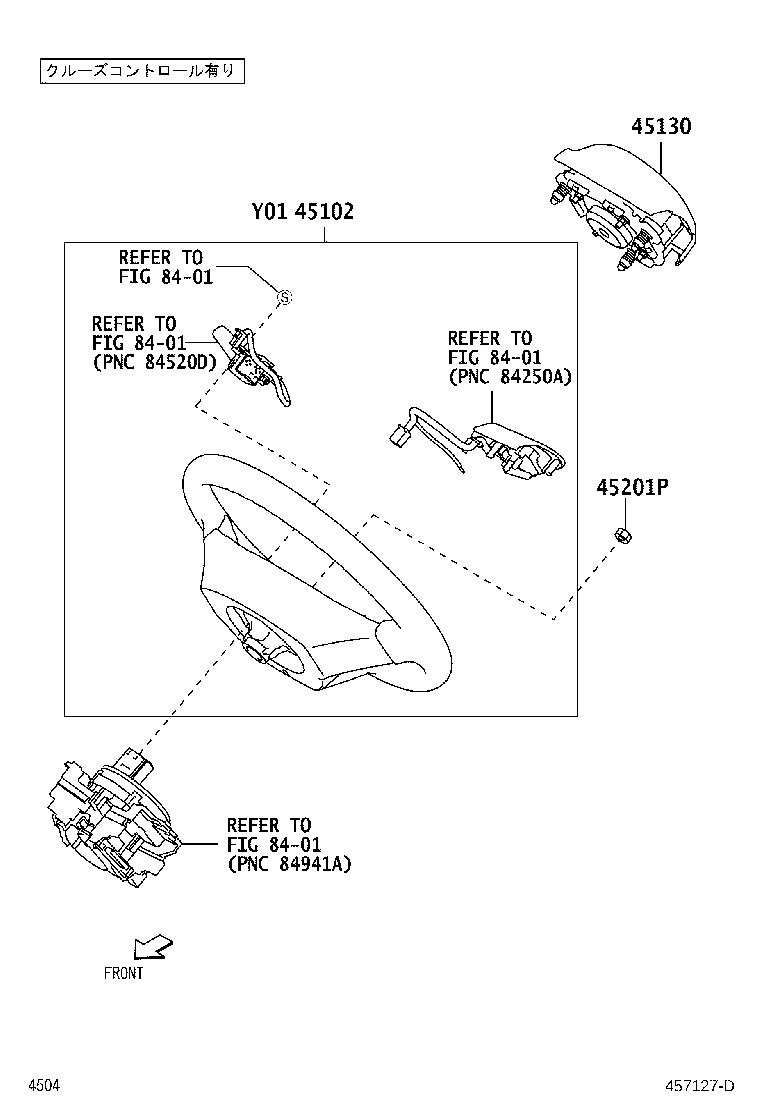

Click highlighted areas on diagram

ｸﾙｰｽﾞｺﾝﾄﾛｰﾙ ｱﾘ

diagram 45102 45130 45201P 8401 8401 8401 8401
Part # Description Qty Price
45102 - WHEEL SUB-ASSY, STEERING
45102-B1300C1

M900..G..TBO

SILVER,TRIM1#

 1
45102-B1310C1

M900..G..TBO

純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ,SILVER,TRIM1#

 1
45102-B1310C1

M900..G..TBO

CD/AM/FM/AUX(9”ﾌｪｲｽ),SILVER,TRIM1#

 1
45102-B1310C1

M900..G..TBO

ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,SILVER,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-B1150C0

M900,910

BLACK,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90041-70014

M900,910

 1
Linked diagrams
8401
