M900A-AGBGJ (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )
Click highlighted areas on diagram

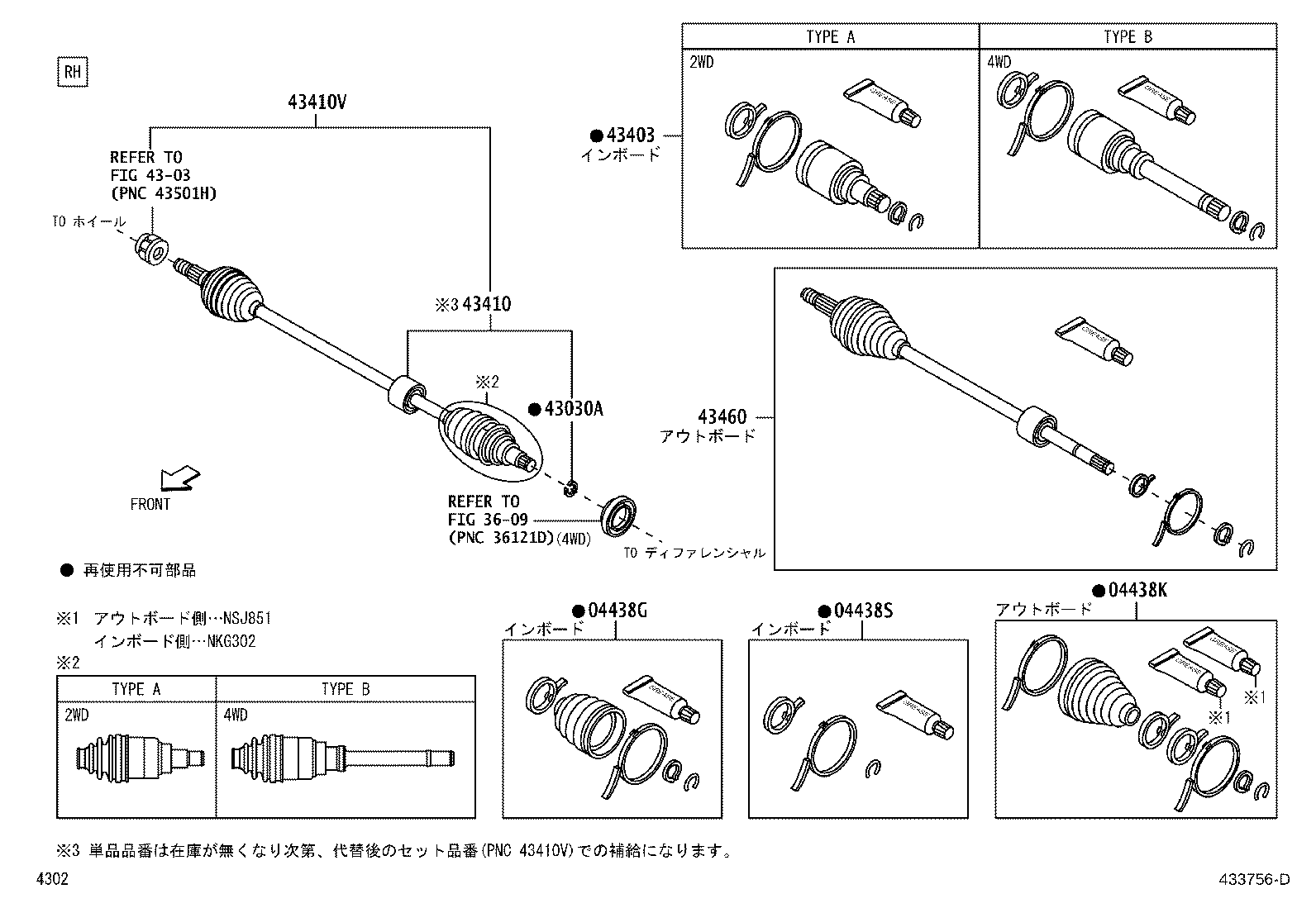

RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-B1091 |
M900..TBO |
1 | ||
| 04438K - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, RH | ||||
| 04425-B1140 |
M900..TBO |
1 | ||
| 04438S - CLAMP KIT, FRONT DRIVE SHAFT, RH | ||||
| 04435-B1101 |
M900..TBO |
1 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 43425-B1030 |
M900..TBO |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43408-B9431 |
M900..TBO ﾀｲﾌﾟ A |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-B1170 |
M900..TBO ﾀｲﾌﾟ A |
1 | ||
| 43410V - SHAFT SET, FRONT DRIVE, RH | ||||
| 43410-B9630 |
M900..TBO |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43411-B9560 |
M900..TBO |
1 | ||
| Linked diagrams | ||||
| 3609 | ||||
| 4303 | ||||
(1611- )
Click highlighted areas on diagram

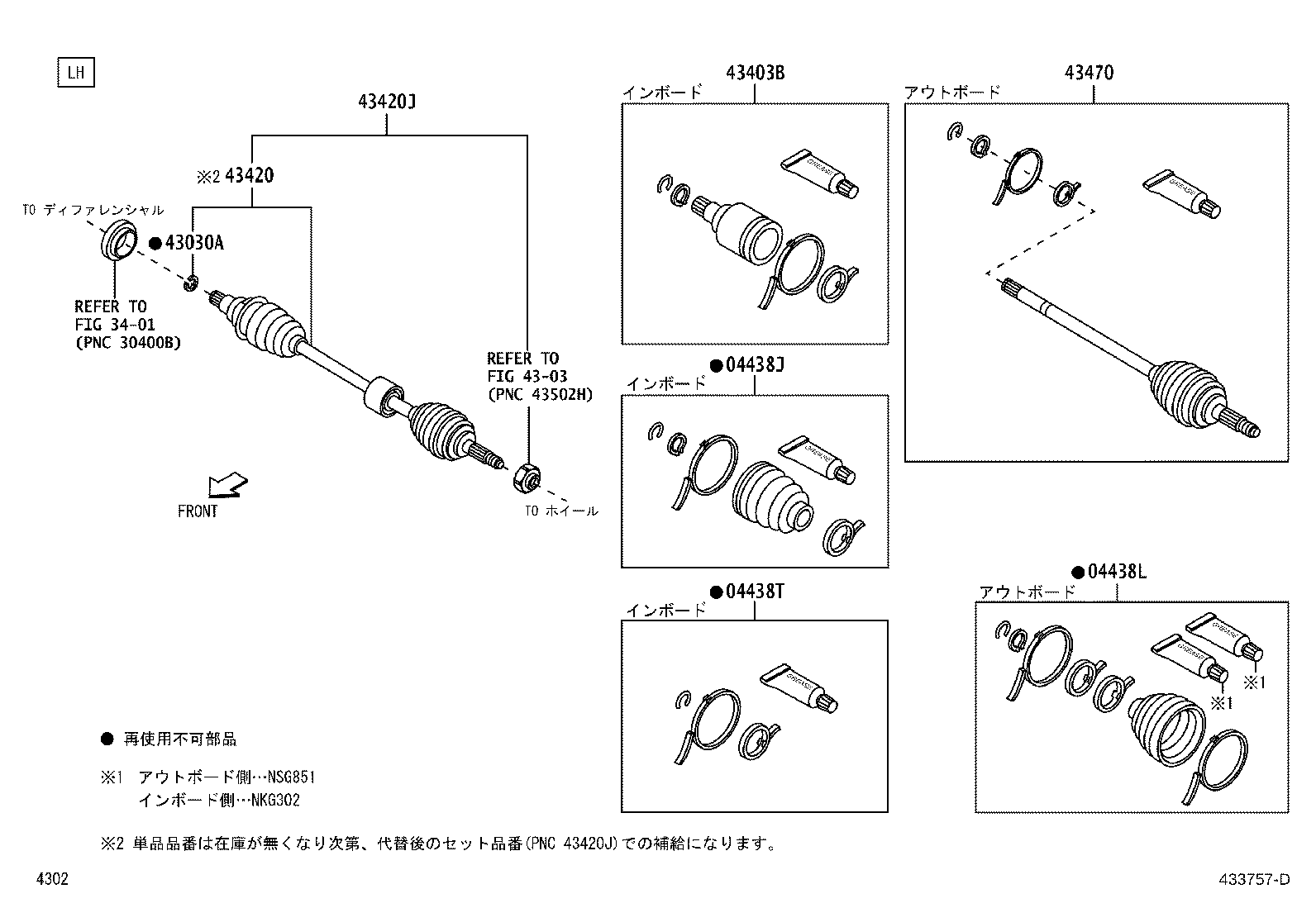

LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-B1091 |
M900..TBO |
1 | ||
| 04438L - BOOT KIT, FRONT DRIVE SHAFT OUTBOARD JOINT, LH | ||||
| 04425-B1140 |
M900..TBO |
1 | ||
| 04438T - CLAMP KIT, FRONT DRIVE SHAFT, LH | ||||
| 04435-B1101 |
M900..TBO |
1 | ||
| 43030A - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT) | ||||
| 43425-B1030 |
M900..TBO |
2 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43408-B9431 |
M900..TBO |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-B1090 |
M900..TBO |
1 | ||
| 43420J - SHAFT SET, FRONT DRIVE, LH | ||||
| 43420-B9590 |
M900..TBO |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43412-B9330 |
M900..TBO |
1 | ||
| Linked diagrams | ||||
| 3401 | ||||
| 4303 | ||||
