M900A-AGBGE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

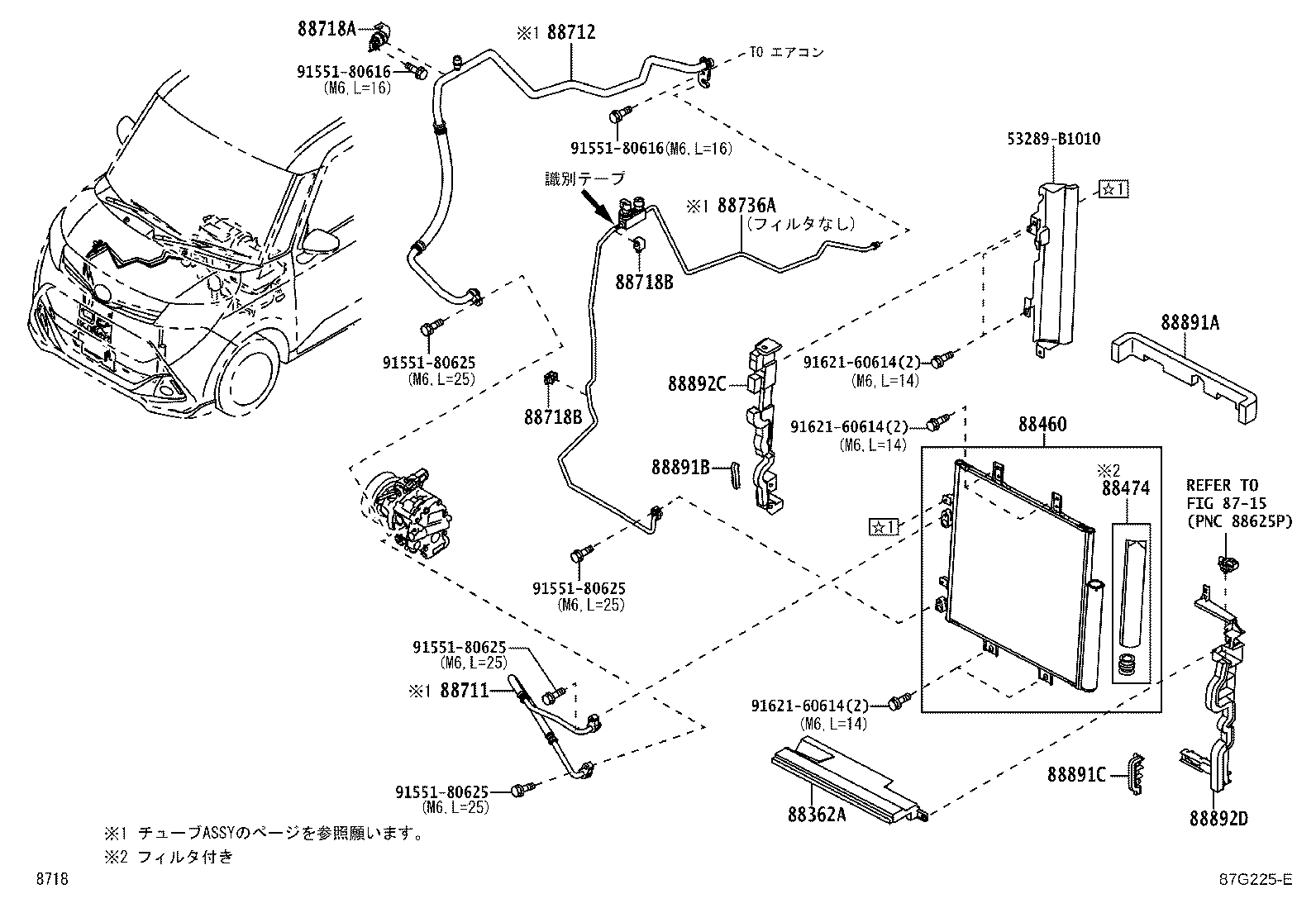

ILLUST NO. 1 OF 2(1611-2009)
Click highlighted areas on diagram
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-B1020 |
M900,910 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-B2010 |
M900,910 ﾄﾞﾗｲﾔ,ﾌｨﾙﾀ付き |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B1210 |
M900,910 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B1240 |
M900,910 |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-B1070 |
M900,910 |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-13060 |
M900,910 |
2 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-13060 |
M900,910 |
2 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-B1320 |
M900,910 識別ﾃｰﾌﾟ=ｲｴﾛｰ |
1 | ||
| 88716-B1321 |
M900,910 識別ﾃｰﾌﾟ=ｸﾞﾘｰﾝ |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-B1600 |
M900,910..ROOMY |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88619-B1050 |
M900,910 |
1 | ||
| 88891C - PACKING C (FOR COOLER) | ||||
| 88629-B1030 |
M900,910 |
1 | ||
| 88892C - PLATE, CONDENSER, NO.1 | ||||
| 53285-B1020 |
M900,910 |
1 | ||
| 88892D - PLATE, CONDENSER, NO.2 | ||||
| 53286-B1020 |
M900,910 |
1 | ||
| Common parts | ||||
| 53289-B1010 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91621-60614 | ||||
| Linked diagrams | ||||
| 8715 | ||||

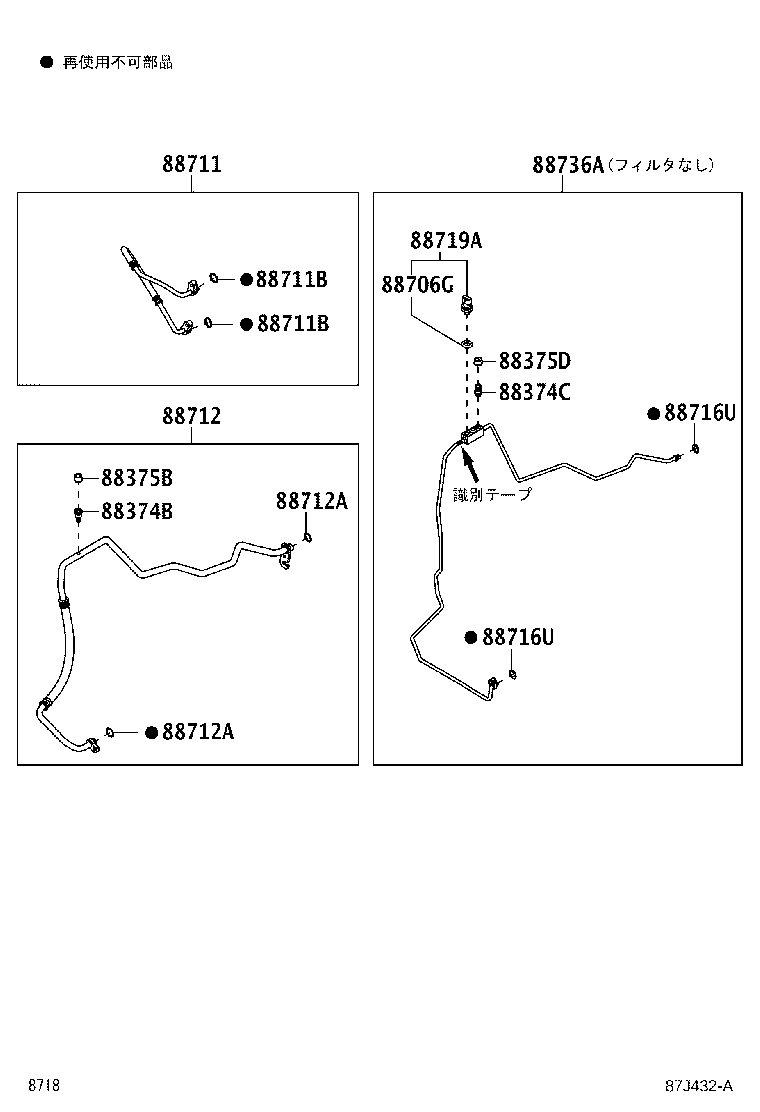

ILLUST NO. 2 OF 2(1611- )
Click highlighted areas on diagram
ﾁｭｰﾌﾞASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-87601 |
M900,910 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-87601 |
M900,910 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-87601 |
M900,910 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-87603 |
M900,910 |
1 | ||
| 88706G - RING, O(FOR LIQUID TUBE) | ||||
| 15188-B5090 |
M900,910 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-B1210 |
M900,910 |
1 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
M900,910 |
2 | ||
| 88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE) | ||||
| 15188-87402 |
M900,910 |
2 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-B1240 |
M900,910 |
1 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
M900,910 |
2 | ||
| 88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE) | ||||
| 15188-87403 |
M900,910 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
M900,910 |
2 | ||
| 88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 15188-87401 |
M900,910 |
2 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-B2010 |
M900,910 識別ﾃｰﾌﾟ=ｲｴﾛｰ |
1 | ||
| 88719-B2020 |
M900,910 識別ﾃｰﾌﾟ=ｸﾞﾘｰﾝ |
1 | ||
| 88736A - TUBE, LIQUID, A(FOR COOL BOX) | ||||
| 88716-B1320 |
M900,910 識別ﾃｰﾌﾟ=ｲｴﾛｰ |
1 | ||
| 88716-B1321 |
M900,910 識別ﾃｰﾌﾟ=ｸﾞﾘｰﾝ |
1 | ||
