Toyota Tank/roomy M900A CAMERA & REAR MONITOR DISPLAY

Part #	Description	Period	Qty
86790 - CAMERA ASSY, TELEVISION
86790-B1050	M900,910 純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ	11/2016 - 11/2017	1
86790-B1100	M900,910 純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｹｰｼﾞ or ﾅﾋﾞﾚﾃﾞｨﾊﾟｯｹｰｼﾞ	12/2017 - 09/2020	1
86790-B1050	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	11/2016 - 09/2020	1
86790-B1050	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ	11/2016 - 11/2018	1
86790B - CAMERA ASSY, TELEVISION, FR
86790-B1060	M900,910..G;M900,910..ROOMY..CTMG ﾊﾟﾉﾗﾏﾓﾆﾀｰ	11/2016 - 11/2018	1
86790-B1060	M900,910..G;M900,910..ROOMY..CTMG ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	11/2016 - 09/2020	1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-B1070	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	11/2016 - 09/2020	1
86790-B1070	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ	11/2016 - 11/2018	1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-B1070	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ	11/2016 - 11/2018	1
86790-B1070	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	11/2016 - 09/2020	1
86792 - CONTROLLER, TELEVISION CAMERA
86792-B1060	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り	11/2018 - 09/2020	1
86792-B1010	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ,品番ﾗﾍﾞﾙ有り	11/2016 - 11/2018	1
86792-B1010	M900,910..CTMG,G ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ,品番ﾗﾍﾞﾙ有り	11/2016 - 11/2018	1
86799 - WIRE, TELEVISION CAMERA
86799-B1010	M900,910..ROOMY..(CTMG,G) ﾊﾟﾉﾗﾏﾓﾆﾀｰ	11/2016 - 11/2018	1
86799-B1010	M900,910..ROOMY..(CTMG,G) ﾊﾟﾉﾗﾏﾓﾆﾀｰ&純正ﾅﾋﾞ装着用ｱｯﾌﾟｸﾞﾚｰﾄﾞﾊﾟｯｸ	11/2016 - 09/2020	1
Common parts
90041-05557
90159-70003
93567-15014

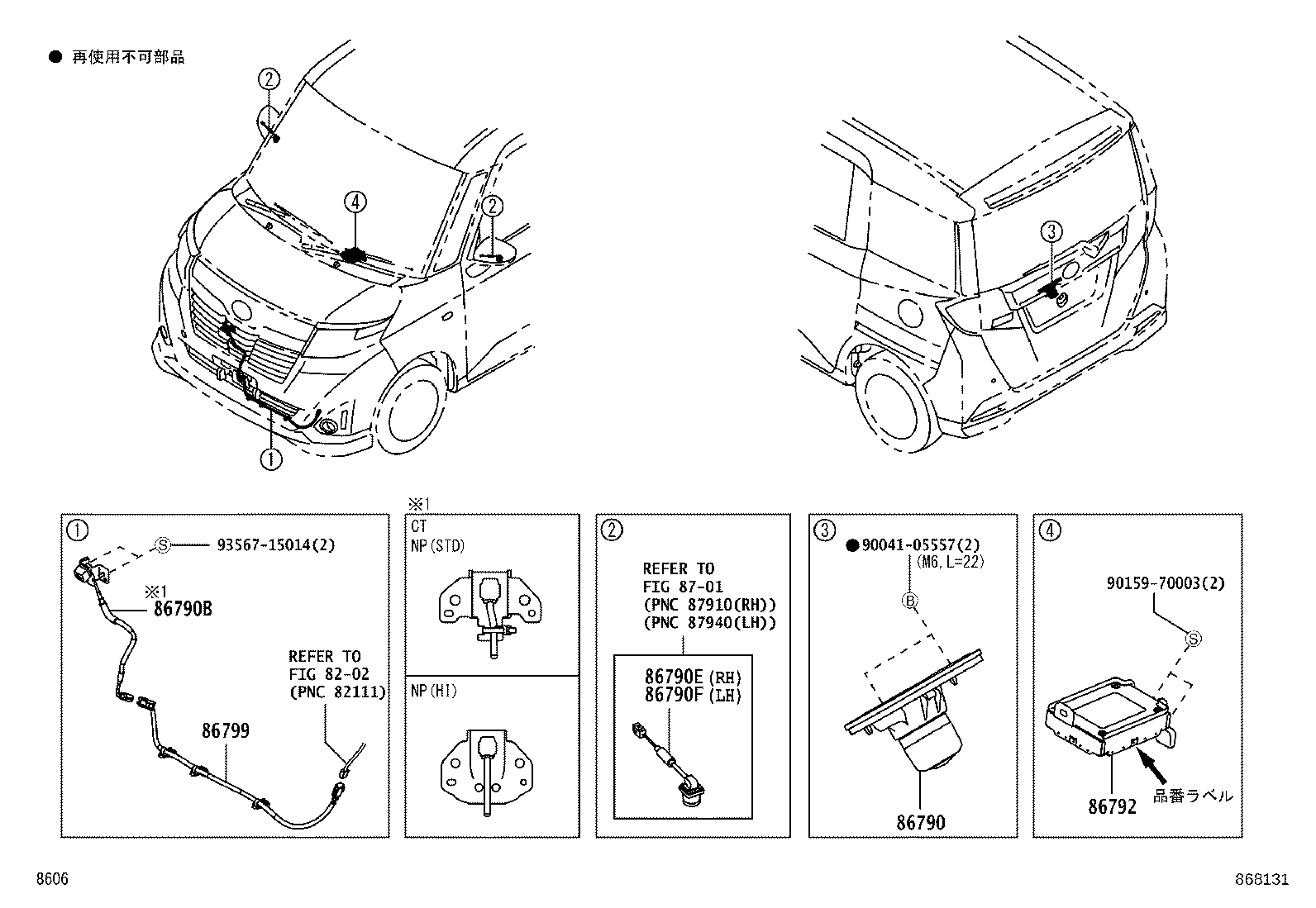

Linked diagrams
8202
8701

M900A-AGBGE (2016)

(1611-2009)
