M900A-AGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1611- )

Click highlighted areas on diagram

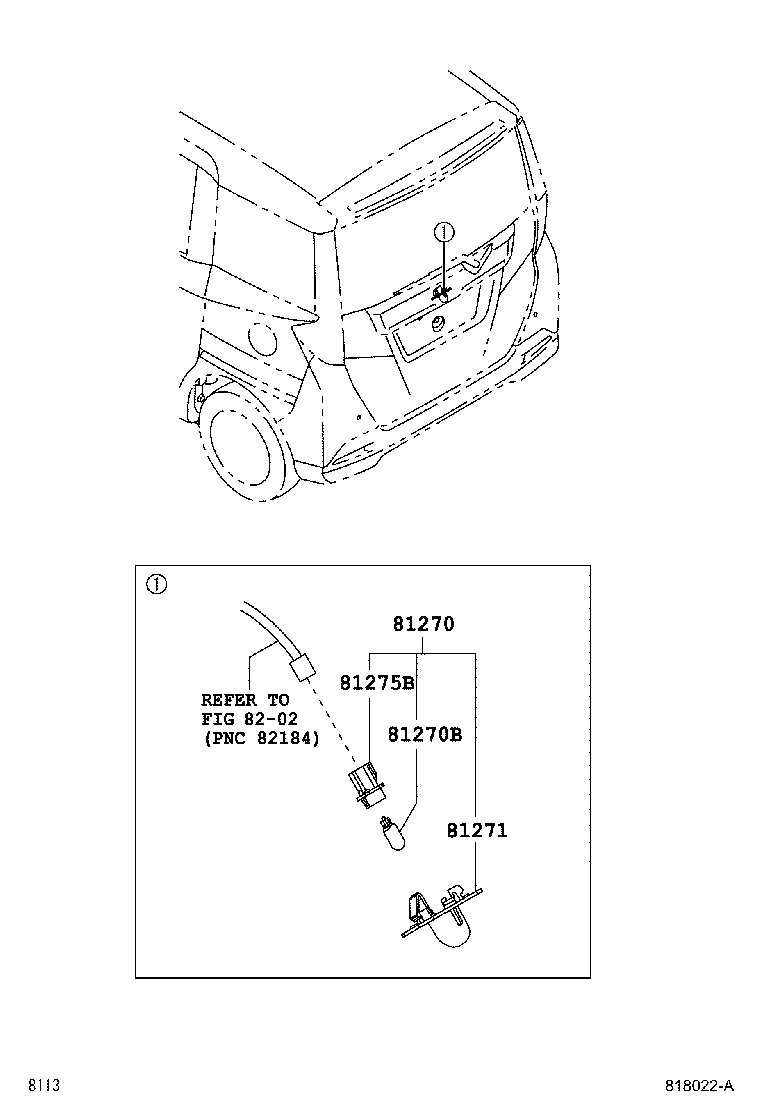

diagram 81270 81270B 81271 81275B 8202
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-B1100

M900,910

 1
81270-B1030

M900,910

 1
81270B - BULB (FOR LICENSE PLATE LAMP)
90049-51184

M900,910

12V 5W

 1
81271 - LENS, LICENSE PLATE LAMP
81271-B1010

M900,910

 1
81275B - SOCKET PLUG, LICENSE PLATE LAMP
81278-B1010

M900,910

 1
Linked diagrams
8202
