M900A-AGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

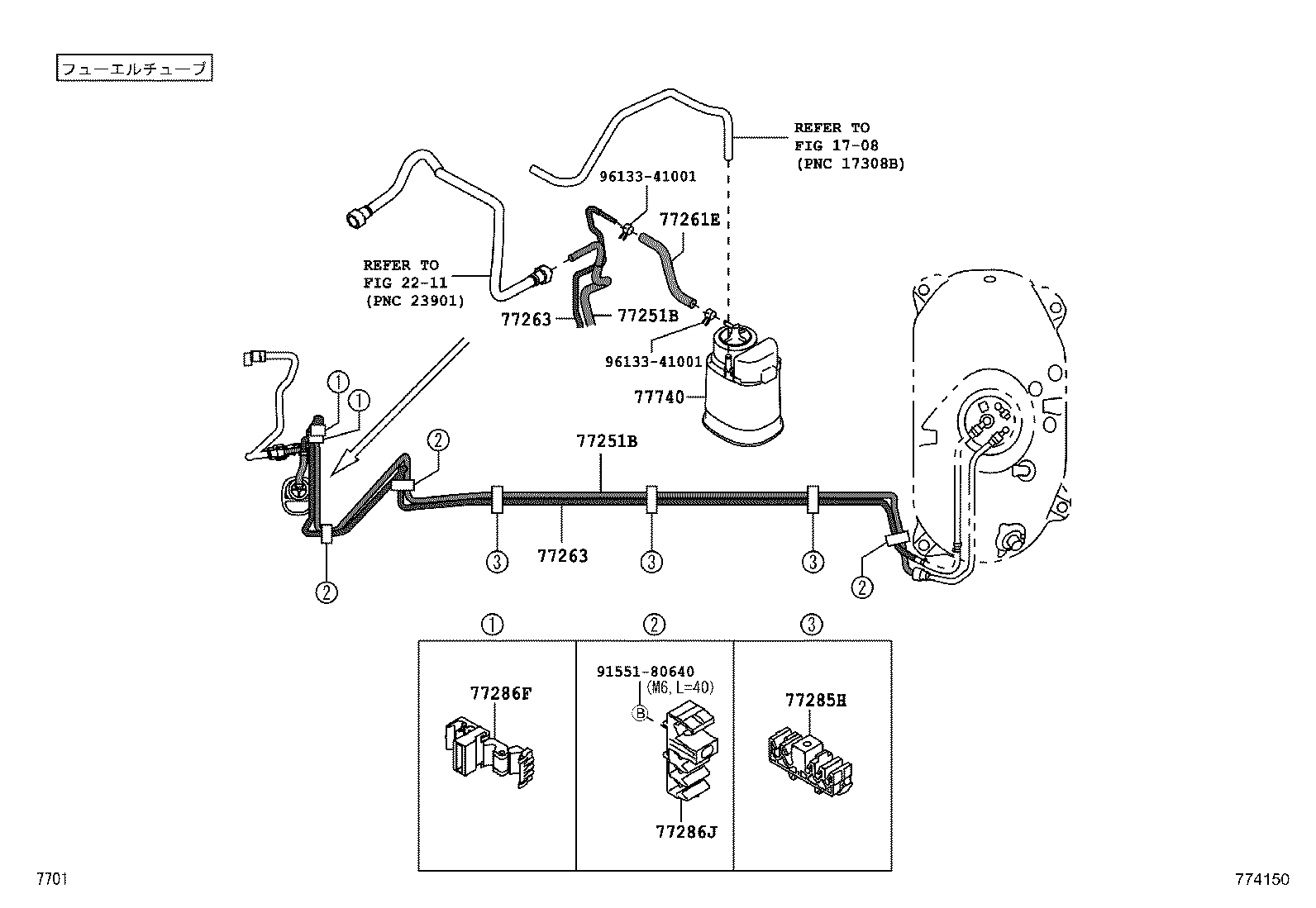

ILLUST NO. 2 OF 3(1611- )

Click highlighted areas on diagram

diagram 1708 2211 77251B 77251B 77261E 77263 77263 77285H 77286F 77286J 77740 9155180640 9613341001 9613341001
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-B1110

M900,910

 1
77251B - TUBE, FUEL MAIN
77251-B1110

M900,910

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95333-04095

M900,910

*H,L=130

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1120

M900,910

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1120

M900,910

 1
77285H - CLAMP, FUEL TUBE, NO.1
90044-64888

M900,910

 3
77286F - CLAMP, FUEL TUBE, NO.2
47371-B2070

M900,910

 2
47371-B2071

M900,910

 2
77286J - CLAMP, FUEL TUBE, NO.4
90044-64890

M900,910

 3
77740 - CANISTER ASSY, CHARCOAL
77740-B1040

M900,910

 1
Common parts
91551-80640
96133-41001
Linked diagrams
1708
2211

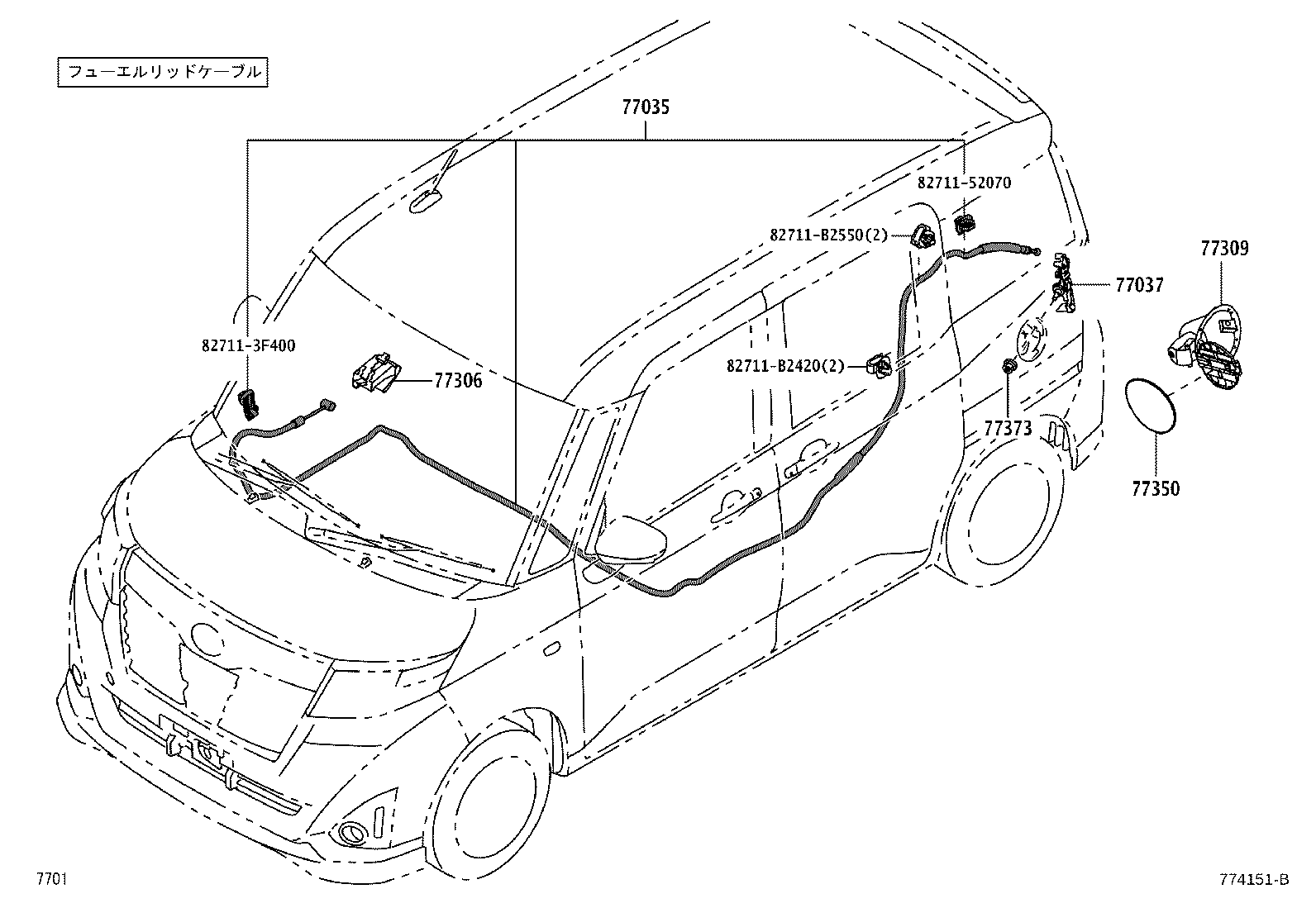

ILLUST NO. 3 OF 3(1611- )

Click highlighted areas on diagram

diagram 77035 77037 77306 77309 77350 77373 827113F400 8271152070 82711B2420 82711B2550
Part # Description Qty Price
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-B1090

M900,910

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-B2030

M900,910

 1
77037-B2031

M900,910

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-B2010C1

M900,910

BLACK,TRIM1#

 1
77309 - HINGE SUB-ASSY, FUEL INLET BOX COVER
77308-B1020

M900,910

 1
77350 - LID ASSY, FUEL FILLER OPENING
77351-B1080

M900,910

 1
77373 - NUT, FUEL LID LOCK
90041-70299

M900,910

M10

 1
Common parts
82711-3F400
82711-52070
82711-B2420
82711-B2550

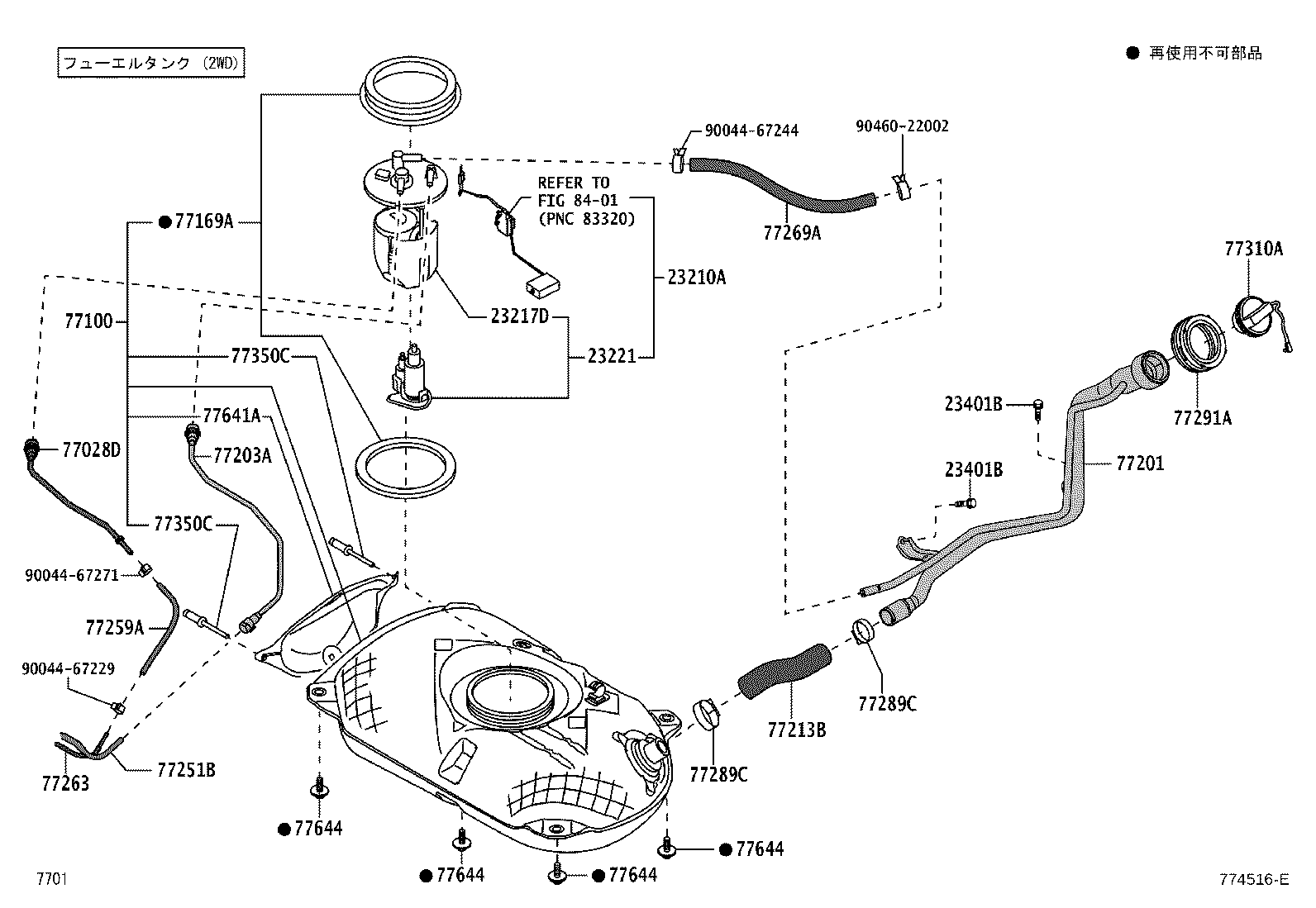

ILLUST NO. 1 OF 3(1611- )M900

Click highlighted areas on diagram

diagram 23210A 23217D 23221 23401B 23401B 77028D 77100 77169A 77201 77203A 77213B 77251B 77259A 77263 77269A 77289C 77289C 77291A 77310A 77350C 77350C 77641A 77644 77644 77644 77644 8401 9004467229 9004467244 9004467271 9046022002
Part # Description Qty Price
23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-B1110

1KR#..M900

 1
23210-B1170

1KR#..M900

 1
23217D - FILTER, FUEL PUMP
23908-B1050

1KR#..M900

 1
23221 - PUMP, FUEL
23100-B1090

1KR#..M900

 1
23401B - BOLT
21814-B1010

1KR#..M900

M8,L=20

 2
23401B - BOLT
21814-B1010

1KR#..M900

M8,L=20

 2
77028D - TUBE SUB-ASSY, FUEL EMISSION, REAR
77028-B1010

M900

 1
77100 - TANK ASSY, FUEL
77001-B1070

M900

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-B2030

M900

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-B1200

M900

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-B1040

M900

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-B2110

M900

 1
77251B - TUBE, FUEL MAIN
77251-B1110

M900,910

 1
77259A - HOSE, FUEL(FOR BREATHER TUBE)
77259-B2050

M900

長さ=190

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1120

M900,910

 1
77269A - HOSE, FUEL TANK BREATHER
77269-B1040

M900

 1
77289C - CLAMP, FUEL TUBE, NO.4
90044-60129

M900,910

 2
77289C - CLAMP, FUEL TUBE, NO.4
90044-60129

M900,910

 2
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-B2060

M900,910

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

M900,910

 1
77350C - RIVET
77645-B2030

M900

 2
77350C - RIVET
77645-B2030

M900

 2
77641A - PROTECTOR, FUEL TANK, NO.1
77641-B1020

M900

 1
77644 - BOLT, FUEL TANK
90041-20292

M900,910

M8,L=29.5

 4
77644 - BOLT, FUEL TANK
90041-20292

M900,910

M8,L=29.5

 4
77644 - BOLT, FUEL TANK
90041-20292

M900,910

M8,L=29.5

 4
77644 - BOLT, FUEL TANK
90041-20292

M900,910

M8,L=29.5

 4
Common parts
90044-67229
90044-67244
90044-67271
90460-22002
Linked diagrams
8401
