M900A-AGBGE (2016)

Toyota Tank/Roomy

Production Nov 2016 - Sep 2020
Engine 1KRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

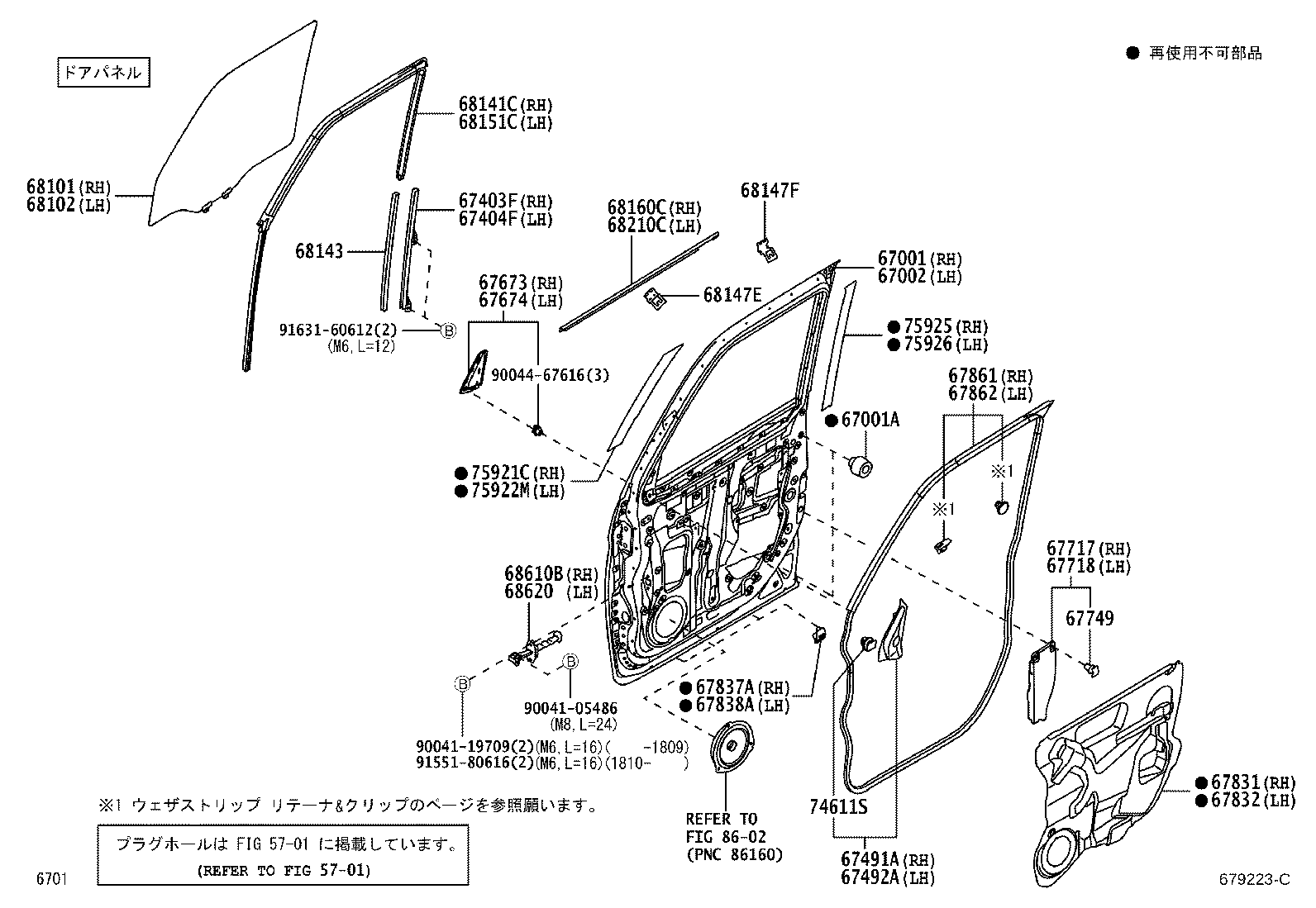

ILLUST NO. 1 OF 3(1611- )

Click highlighted areas on diagram

diagram 5701 67001 67001A 67002 67403F 67404F 67491A 67492A 67673 67674 67717 67718 67749 67831 67832 67837A 67838A 67861 67862 68101 68102 68141C 68143 68147E 68147F 68151C 68160C 68210C 68610B 68620 74611S 75921C 75922M 75925 75926 8602 9004105486 9004119709 9004467616 9155180616 9163160612
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-B1060

M900,910

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09069

M900,910

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-B1100

M900,910

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-B1060

M900,910

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-B1060

M900,910

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-B1050

M900,910

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-B1050

M900,910

 1
67673 - GARNISH, DOOR FRAME, LOWER RH
62225-B1040

M900,910

 1
67674 - GARNISH, DOOR FRAME, LOWER LH
62226-B1040

M900,910

 1
67717 - PAD, FRONT DOOR TRIM, CENTER RH
75787-B1020

M900,910

 1
67718 - PAD, FRONT DOOR TRIM, CENTER LH
75788-B1020

M900,910

 1
67749 - CLIP, DOOR TRIM MOULDING
67749-B2030

M900,910

 4
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-B1090

M900,910

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-B1090

M900,910

 1
67837A - SEAL, FRONT DOOR VENT, RH
67837-B2010

M900,910

 3
67838A - SEAL, FRONT DOOR VENT, LH
67837-B2010

M900,910

 3
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-B1100

M900,910

 1
67861-B1101

M900,910

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-B1101

M900,910

 1
67862-B1100

M900,910

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-B1120

M900,910..CTMG,G

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-B1120

M900,910..CTMG,G

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-B1071

M900,910

 1
68141-B1070

M900,910

 1
68143 - RUN, FRONT DOOR GLASS, LOWER
68143-B2111

M900,910

 2
68143-B2112

M900,910

 2
68147E - STOP, FRONT DOOR GLASS, UPPER
67216-B1010

M900,910

 2
68147F - STOP, FRONT DOOR GLASS, UPPER
67216-B1020

M900,910

 2
68151C - RUN, FRONT DOOR GLASS, LH
68151-B1071

M900,910

 1
68151-B1070

M900,910

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-B1060

M900,910

 1
68161-B1061

M900,910

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-B1060

M900,910

 1
68162-B1061

M900,910

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-B1060

M900,910

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-B1060

M900,910

 1
74611S - CLIP
90044-67615

M900,910

 4
75921C - TAPE, BLACK OUT, NO.1 RH
75921-B1030C0

M900,910..ROOMY..G

TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24

 1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-B1030C0

M900,910..ROOMY..G

TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24

 1
75925 - TAPE, BLACK OUT, NO.3 RH
75925-B1060C0

M900,910..ROOMY..G

TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24

 1
75926 - TAPE, BLACK OUT, NO.3 LH
75926-B1060C0

M900,910..ROOMY..G

TUYAKESI BLACK DUMMYCOLOR,B67 ,B82 ,G57 ,R59 ,R67 ,R72 ,S28 ,T33 ,W24

 1
Common parts
90041-05486
90041-19709
90044-67616
91551-80616
91631-60612
Linked diagrams
5701
8602

ILLUST NO. 2 OF 3(1611- )

Click highlighted areas on diagram

diagram 67001C 67001C 67601 67601A 67601F 67601F 67602 67743C 67777 67778 68171B 68172A
Part # Description Qty Price
67001C - GROMMET(FOR FRONT DOOR PANEL)
90041-89019

M900,910

 4
67001C - GROMMET(FOR FRONT DOOR PANEL)
90041-89019

M900,910

 4
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-B1270C0

M900,910..G,X

BLACK,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-B2080

M900,910

 14
67601F - SCREW(FOR FRONT DOOR TRIM BOARD)
90041-68137

M900,910

 4
67601F - SCREW(FOR FRONT DOOR TRIM BOARD)
90041-68137

M900,910

 4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-B1180C0

M900,910..G,X

BLACK,TRIM1#

 1
67743C - SEAL, FRONT DOOR TRIM
67743-B1010

M900,910

 2
67777 - POCKET, FRONT DOOR TRIM, RH
67777-B1030C0

M900,910

BLACK,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-B1030C0

M900,910

BLACK,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-B1060

M900,910

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-B1060

M900,910

 1

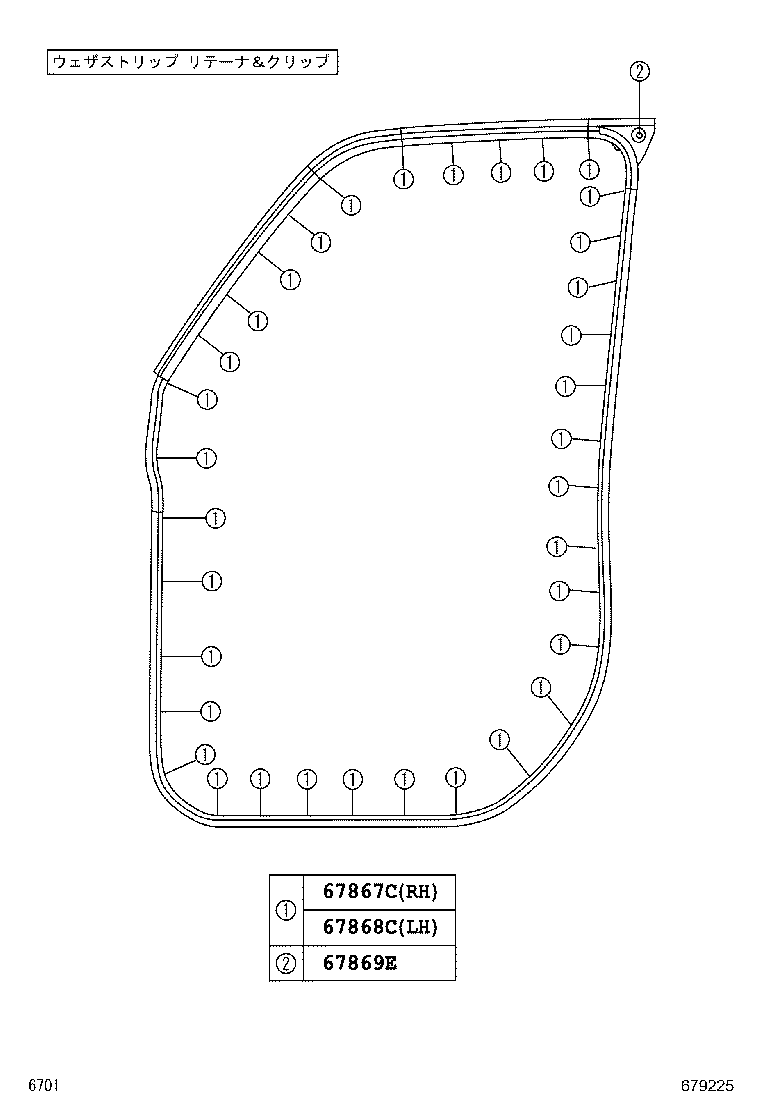

ILLUST NO. 3 OF 3(1611- )

Click highlighted areas on diagram

diagram 67867C 67868C 67869E
Part # Description Qty Price
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-B2460

M900,910

 35
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-B2450

M900,910

 35
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-B2010

M900,910

 2
