M900A-AGBGE (2016)
Toyota Tank/Roomy
Production
Nov 2016
-
Sep 2020
Engine
1KRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1611- )1KRFE

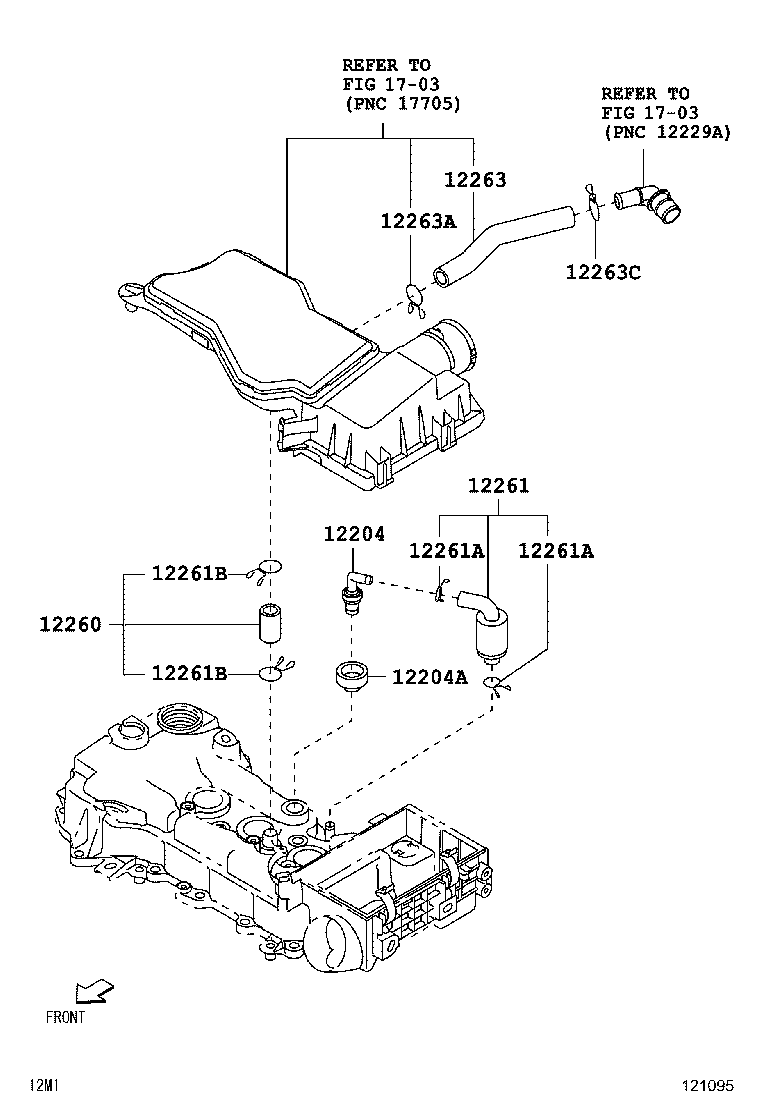

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-40040 |
1KRFE..M900,910 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18016 |
1KR#..M900,910 |
1 | ||
| 12260 - HOSE ASSY, VENTILATION | ||||
| 12260-40010 |
1KRFE..M900,910 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-40051 |
1KRFE..M900,910 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
1KRFE..M900,910 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
1KRFE..M900,910 |
2 | ||
| 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21004 |
1KRFE..M900,910 |
2 | ||
| 12261B - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-21004 |
1KRFE..M900,910 |
2 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 12263-B1010 |
1KRFE..M900,910 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-21004 |
1KRFE..M900,910 |
1 | ||
| 12263C - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-21004 |
1KRFE..M900,910 |
1 | ||
| Linked diagrams | ||||
| 1703 | ||||
